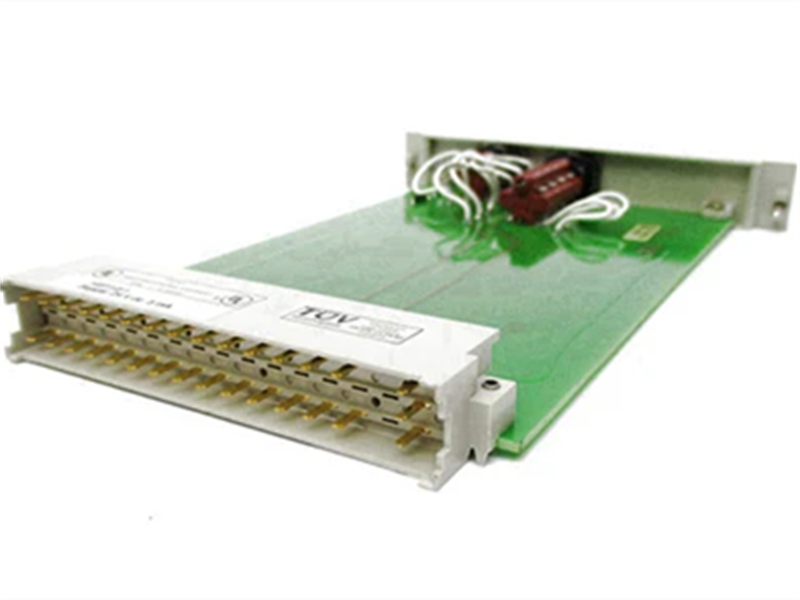

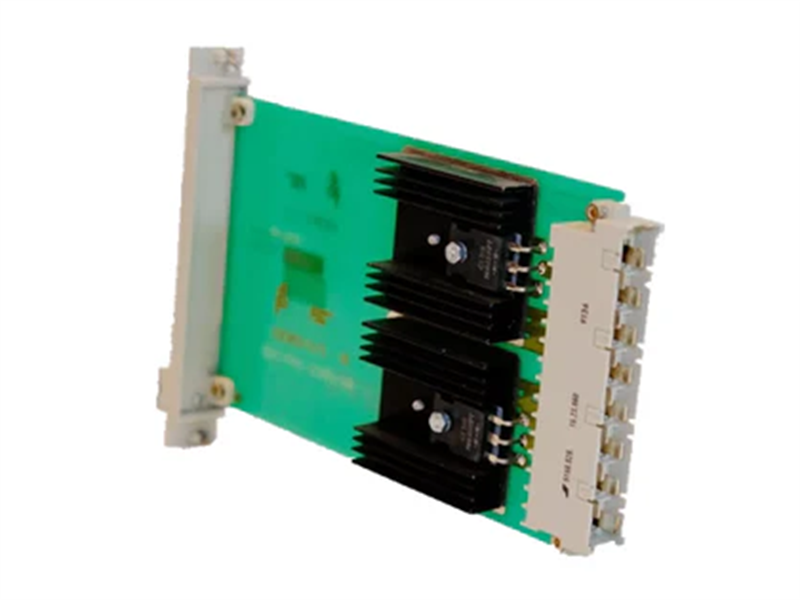

10303/1/1 Honeywell Power supply distribution module

Description:

The Honeywell 10303/1/1 PSD is a Power Supply Distribution Module (PSD)used in systems with redundant Central Parts and non-redundant O. It sprimary function isto combine the output of the power supply units(PsUsj in the redundant Central Parts into a single 5 VDC supply for the non-redundant I/O part of the system.One power supply distributionmodule is required for each PSU module.This ensures consistent power distribution and voltage regulation throughout the system.

Specifications:

Product No: 10303/1/1

Approvals: CE, TUV, UL
Software Versions: All
Space Requirements: 4 TE,3 HE (4 HP, 3U)
Power Requirements: None (passive module).
Max. Current: 20 A (module dissipation limit)
Max. Forward Voltage Drop: 0.55 V.
Max. Reverse Voltage: 30 V
Connector Type: DIN 41612-H15 P(faston)Max.
Connector Current: 10 A per pin

Features:

• Consistent Power Distribution

Ensures reliable power to non-redundant I/O.

• Compact Design

Fits into standard industrial enclosures.

• Redundant to Non-redundant Power Conversion

Combines outputs from redundant PSUs into one 5Vdc supply for non-redundant I/O.

• Voltage Drop Management

Routes power through the module to create an equal voltage drop between the Central Part and I/0 section.

• Proximity Installation

Requires installation next to PSU modules to minimize voltage drop due to wiringresistance.

• Easy Maintenance

PSD modules can only be exchanged with the PSU power switched off, ensuringsafety and system integrity.
