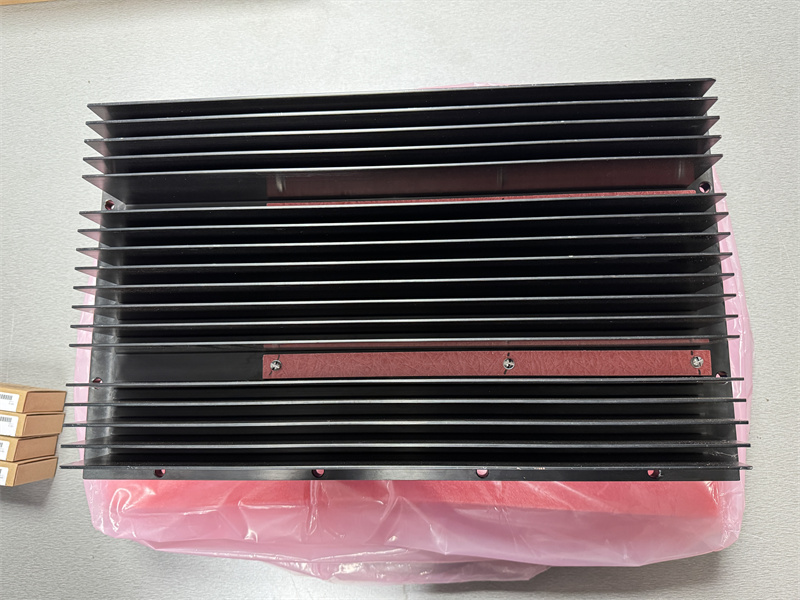

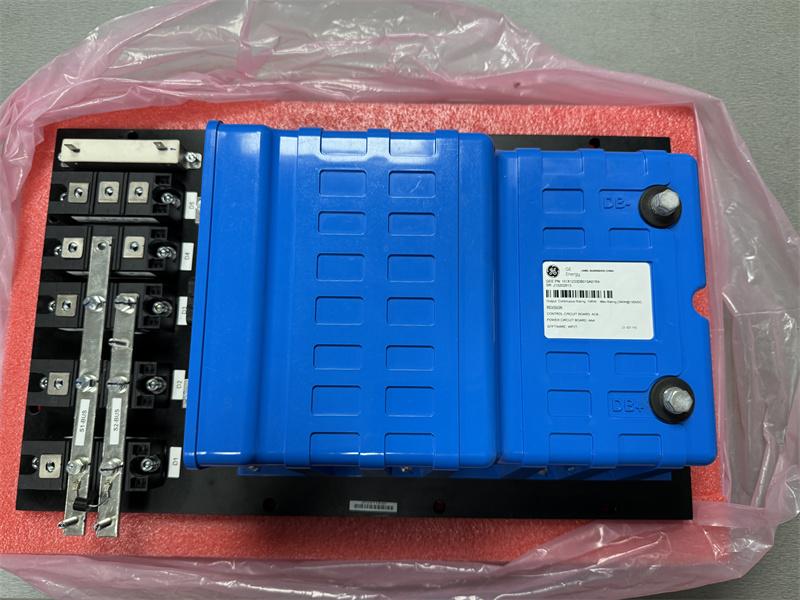

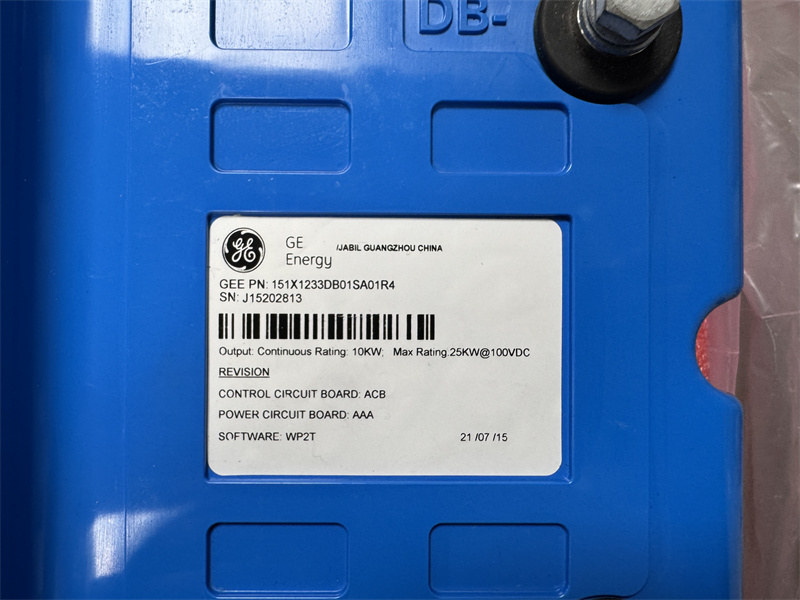

151X1233DB01SA01R4 GE 30 NM Power Converter ACB AAA Control Circuit Board

Description:

The GE 151X1233DB01SA01R4 is a high-performance programmable automation controller CPU module manufactured by GE Automation and Control, belonging to its PACSystems RX3i series platform. As the core of the control system, this module is responsible for executing user-written control logic programs, processing I/O data, managing communication, and coordinating the operation of the entire automation system.

This system provides users with a more comprehensive and reliable solution to ensure the stable operation of generator sets and improve the stability and reliability of the power grid. The system is suitable for new and retrofitted steam, gas, or hydroelectric generator sets. It is commonly used in wind turbine systems to power the pitch control system that controls the blades.

SPECIFICATIONS:
Part Number: 151X1233DB01SA01R4

Series: EX2100E

Input Voltage: 5V DC
Communication : Ports RS-232, RS-422/485, EthernetAmbient temperature: 0 to 40°C (32 to 104°F), current consumption temperature is 50°C (122°F).
Input range: 35A for 90-280Vrms, nominal 120A for up to 480Vrms.
Input frequency: up to 480 Hz.
Nominal continuous output: 35A for 250Vdcat35Adc, 120A for 250Vdcat120Adc.
Humidity: 5% to 95% non-condensing

Features:

• Connection Terminals

Provides multiple terminal blocks for connecting motors, transformers, sensors, and other devices.

• Signal Transmission

Transmits control signals, status signals, and power signals.

• Highly integrated

151X1233DB01SA01R4 EX2100E regulator can be highly integrated with power plant and turbine control, seamlessly integrating excitation control system, turbine control system, static starter control system, integrated control system (ICS) and human-machine interface (HMI).

• Reliability

The minimum component design approach improves system reliability.

Datasheet Link:

151X1233DB01SA01R4 GE 30 NM Power Converter ACB AAA Control Circuit Board PDF Datasheet
