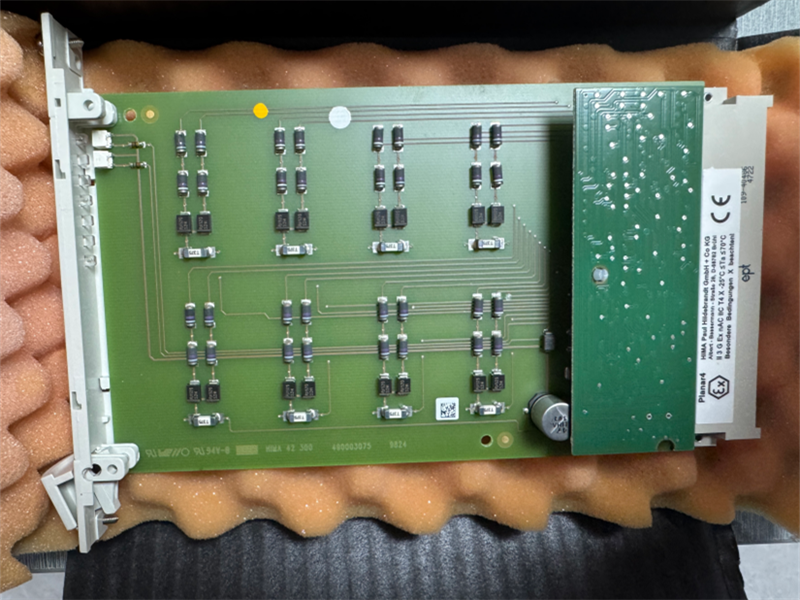

42300 HIMA Logic Function Module

The HIMA 42300 Logic Function Module is an advanced component designed for seamless integration into complex industrial automation systems. It is certified to the highest safety standards, including DIN V 19250 and IEC 61508. It delivers high reliability and robust performance under a wide range of operating conditions.

Equipped with advanced logic processing capabilities, this module ensures accurate decision-making in real-time applications, thereby improving system efficiency and safety. Its modular design allows for easy integration into existing infrastructure and scalability.

Operating from 24V DC and rated up to 500mA, the HIMA 42300 is versatile enough to meet the needs of various industrial environments. It supports both standard and safety-critical applications, making it suitable for industries such as manufacturing, oil and gas, and chemicals.

Featuring a Modbus TCP/IP compatible communication interface, the module enables seamless data exchange with other industrial devices, enhancing overall system connectivity and interoperability. Its operating temperature range of -20°C to +70°C ensures durability and reliability in harsh environments.

The HIMA 42300 Logic Function Module is a 2-input, 8-function logic module that provides a variety of logic functions for industrial automation applications.

Parameters:

Number of inputs:2
Number of functions:8
Logic functions:AND, OR, NAND, NOR, XOR, XNOR, NOT, INVERT
Input voltage:24 VDC
Output voltage:24 VDC
Current consumption:10 mA1000 V.0
Reverse Current: S50 mA.
Reverse Recovery Time: Typ. 30 ms.
Peak Conducting Voltage: 3 V.
Nominal Conducting Current: <200 mA.
Fuse: 0.375 A time-lag.
Mounting: 3 U high, 4 SU.
Operating Temperature:-20°C to +85°C
Relative Humidity:5% to 95% non-condensing
Communication Interface:RS-485

Features:

-2-input, 8-function logic module
-Compact, DIN-rail-mountable design
-Easy to install and use
-Compatible with a wide range of industrial automation controllers

Datasheet Link:

42300 HIMA Logic Function Module PDF Datasheet
