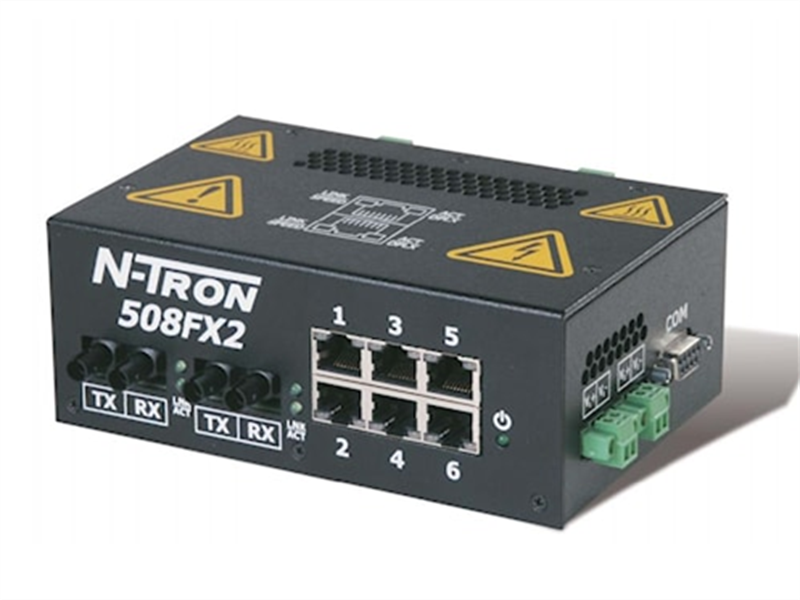

508FX2-SC Red Lion Controls Ethernet Switch 8 port Module

Description:

The 508FX2 Industrial Ethernet Switch with Monitoring, SC 15km is a robust 8-port switch, featuring six 10/100 BaseTX RJ-45 ports and two 100BaseFX singlemode 15km fiber ports with SC connectors.

It is ideally suited for connecting Ethernet-enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions.

Industrial Packaging and Specifications. The 508FX2, designed to operate in industrial environments, is housed in a rugged DIN-rail-mounted steel enclosure. Optional panel and rack mount kits are also available. The switch comes standard with extended temperature rating, extended shock and vibration specs, redundant power inputs and a high MTBF (greater than 2M hours).Ease of Use. The 508FX2 requires no setup unless the advanced port functions are utilized.

Features:

-8 Port Industrial Ethernet Switch
-Six 10/100 BaseTX RJ-45 Ports
-One 100BaseFX Multimode Fiber Port with ST Connectors
-IEEE 802.3 Compliance
--40° to 85° C Operating Temperature
-Autosensing 10/100BaseTX, Duplex, and MDIX
-ESD and Surge Protection on all Built-in Ports
-Up to 2.6 Gb/s Throughput
-Redundant Power Inputs (10-30 VDC)
-Bi-Color LED's For Link, Speed, Activity & Duplex Status
-Rugged Industrial Enclosure
-Advanced Management Firmware:
-IGMP Auto Configuration
-VLAN
-QoS
-Trunking or Link aggregation
-Port Mirroring
-N-View™ Remote Monitoring Technology
-Unmanaged Plug and Play Operation

Frequently Asked Questions:

1.What is the payment term?
Wire transfer only.

2.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

508FX2-SC Red Lion Controls Ethernet Switch 8 port Module PDF Datasheet
