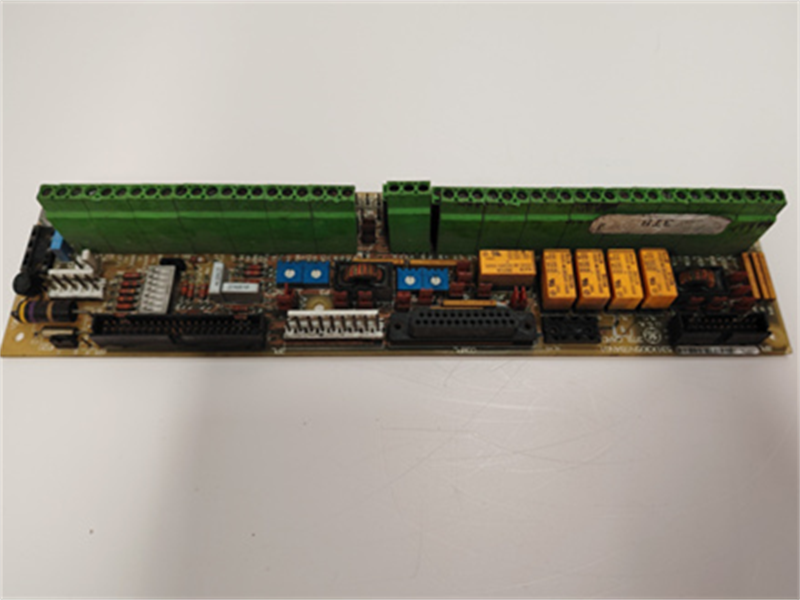

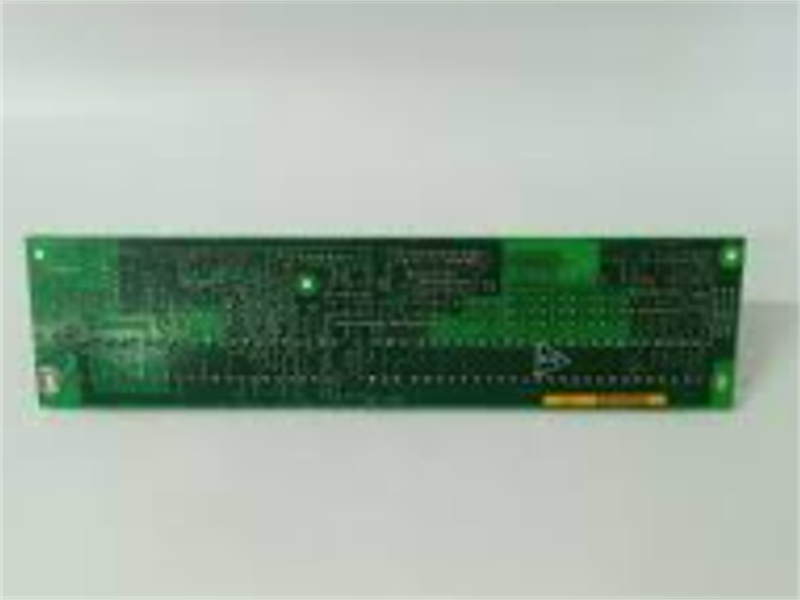

531X309SPCAJG1 GE Digital Signal Processor Card

Description:

The GE 531X309sPCAJG1 is a digital signal processor (DSP) card engineered for General Electric DC2000 DigitalAdjustable Speed Drive systems. As part of the GE 531X printed circuit board family, this module performs high-speedsignal computation, logic execution, and field interface coordination within GE drive control architectures.

Designed for continuous industrial operation, the card functions as a core signal processing and control interfacewhen installed alongside the SDCC Drive Control Card. Its DSP-based design ensures precise timing, reliablecommunication, and stable output control in demanding drive and turbine-related environments.

The 531x309sPcAJG1 module s engneered to proces analog and digtal signals, induding yoltage, curen,and temperature inputs. I converts thesesignals nto digtal outputs for use in drive contro systems. This board also serves as an intertace between the processor card and external devces ikeencoders and tachometers.

SPECIFICATIONS:
Part Number: 531X309SPCAJG1

Series: EX2000

Input Voltage: 24V DC
Output Voltage: 5V DC

Processor Architecture: Industrial DSP-based control logic processor
Compatible Control Card: SDCC Drive Control Card
Communication Interface: Backplane bus, RS-422 serial interface
Field Connections: Screw terminal interfacesNominal Power Consumption: Approximately 15 W
OperatingTemperature Range: -20 °C to +60 °C
Board Form Factor: Standard GE 531X PCB footprint

Features:

• Connection Terminals

Provides multiple terminal blocks for connecting motors, transformers, sensors, and other devices.

• Signal Transmission

Transmits control signals, status signals, and power signals.

• Protection Functions

Provides overcurrent and overvoltage protection to ensure equipment safety.

• Monitoring Functions

Monitors equipment operating status and provides alarm signals.
QA:

1.What kind of encoders can the 531X309SPCAJG1 interface with?
The 531X309SPCAJG1 can interface with incremental encoders from 5V to 15V.
2.Can the 531X309SPCAJG1 interface with digital tachometers?
Yes, the 531X309SPCAJG1 can interface with digital tachometers.
3. Is this card interchangeable with other 531X signal processor boards?
No. Although physically similar, functionality and firmware vary by revision. Always match the exact modelnumber 531X309SPCAJG1.
4.Does this module function as a standalone output card?
It operates as a signal processing and control interface and works in conjunction with the SDCC Drive Control Card rather than as an independent output module.

Datasheet Link:

531X309SPCAJG1 GE Digital Signal Processor Card PDF Datasheet
