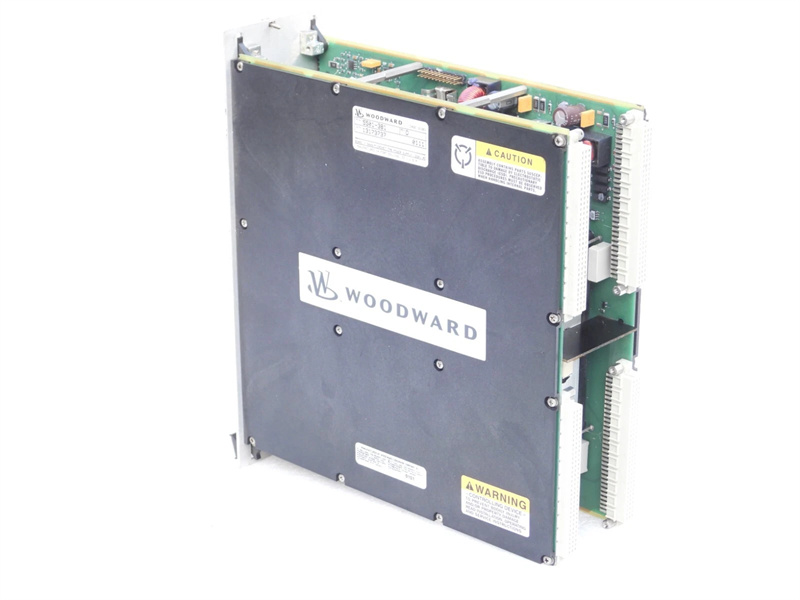

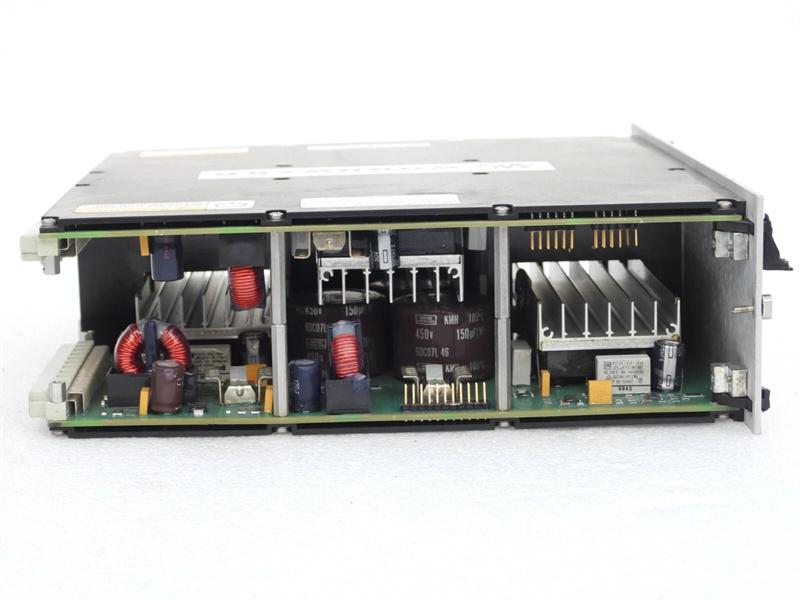

5501-380 WoodWard 5009/MICRONET TMR POWER SUPPLY BOARD

Description:

Board 5501-380 is another one of the 5009/MicroNet TMR Power Supplies but compared to the 5501-370 module that operates on 24 VDC this board can operate on one-hundred and twenty volts of alternating current or volts of direct current. Along with this main difference, each voltage has a different input power fuse/breaker rating, the breaker rating for the 120 VDC is a 10 A time delay. All of the specifications regarding this board can be found on page thirty-nine of the 26167V1 manual.

The 5501-380 board can be used in multiple chassis systems but they must be used in different chassis configurations and connected to the same power source. Please note that not all of the chassis systems and their components require a full load from the main MicroNet TMR power supply. If the cabinet is not supplied by the adjoining power system the power connections needed will be made through the terminals on the front of the main power supplies.

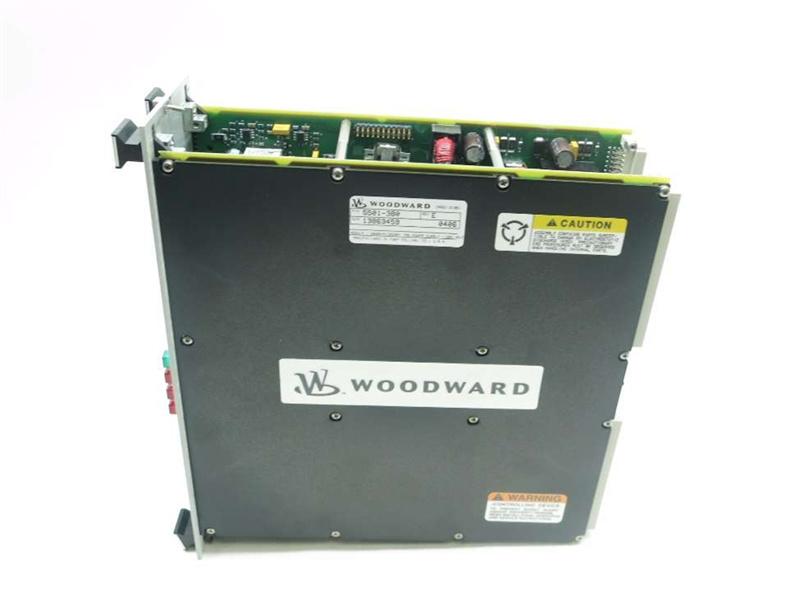

On the front faceplate of the 5501-380 board, there are four LEDs, the OK led is green while the power supply fault, overtemperature, and input fault LEDs are all red. When lit all of the red LEDs will indicate that some type of error has occurred. For example when the overtemperature LED is on indicates that a thermal shutdown is likely to occur as the internal power supply has exceeded the set temperature of eighty degrees Celsius, anything above ninety degrees Celsius will cause the power supply to shut down. Once the internal power supply has fallen back below seventy-five degrees Celsius the LED will turn off.

Features

• The redundant power system boasts six separately regulated 24 Vdc outputs, each with an impressive current capacity of 6 A. These outputs are meticulously designed to deliver stable and precise power to the control, ensuring the smooth functioning of all connected modules and components.
• To maintain exceptional power output regulation, the system implements stringent measures to counter the effects of line voltage fluctuations, varying load demands, and changes in temperature. As a result, the regulation is meticulously controlled and kept within an impressive margin of less than +5%.
• The implementation of redundant power supplies and the high-quality motherboard enhances the system's overall fault tolerance and reliability. In the event of a power supply failure or issue, the redundant power system ensures that the other power supply seamlessly takes over, maintaining continuous operation and safeguarding critical processes.
• The reliable power delivery and precise regulation of the MicroNet TMR main control power supply chassis make it well-suited for safety-critical applications in industries such as aerospace, nuclear power, and industrial automation. The redundant power system and robust motherboard are at the forefront of providing a stable and dependable power foundation for the MicroNet TMR control system, ensuring exceptional performance and safety even in demanding and mission-critical environments.
