Manufacture |
ABB |
|
Model |
560CMU04 |
| PN No. |
1KGTO11300R0001 |
|
Catalog |
Harmony API |
|
Description |

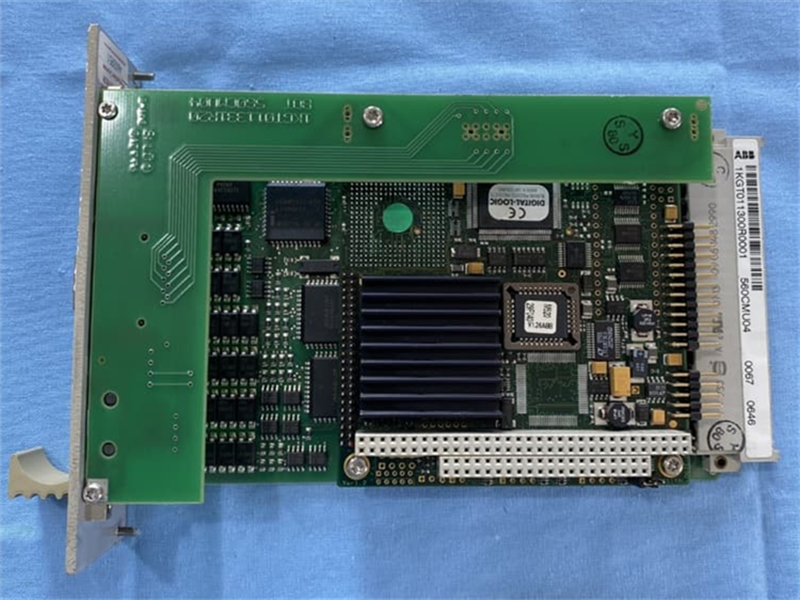

Control Board |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
14*20*5(CM) |
| Weight | 0.2kg |
Description:
The ABB 560CMU04 is a high-performance Central Module Unit(CMU) designed for the RTU560 remote terminalplatform.It providss reliablecontrol ond communicction funtons, ensuing tho stoblo operation o distibuted contro rohitectures.Moreover, its modular design allows flexible integration into various industrial environments,ensuring system scalability and ease of maintenance. The unit efficiently manages multiple communication protocols,providing secure and real-time data exchange between substations, controllers, and central monitoring systems.,Addlitionally,is rugged design guorontes dependable performance in demandling industrialenvironments, making it suitable for both new installations and retrofit projects
With a robust32-bit industrial CPU, the 560CMU04 processes large volumes of data and executes complexautomation logic reliably.In addition,its high-capacity RAM and flash memory ensure fast response times and stableoperation in demanding applications. Engineers appreciate its secure data handling features, including built-inencryption and authentication, which safeguard critical operational data.
This control board is trusted across industis ke process cutomation, power genoration, and utilycontro,where continuous operation and precise control are essentiofor safe and efficient system performance.
FEATURES
- Multifunctional Interface Integration
Integrates multiple physical interfaces on a single module, simplifying wiring.
- Strong Protocol Support
Supports mainstream communication standards and protocols required by modern power automation systems.
- Protocol Conversion Gateway
Built-in powerful gateway functionality enables seamless data mapping and conversion between different protocols.
- High Reliability Design
Industrial-grade design ensures stable operation in harsh power environments.
- Easy Configuration and Management
Parameter settings, protocol configuration, and data point mapping are typically performed via ABB's PCM600 engineering configuration software.
- Time Synchronization
Supports SNTP/IRIG-B, ensuring the time accuracy of event logging and communication.
- Status Indication
Clear LED status indicators facilitate quick diagnostics by maintenance personnel.
- High Performance
Capable of executing complex logic and managing large real-time datasets.
- Remote Monitoring
Configurable, diagnostic, and monitored via SCADA systems.
- Modular Design
Easily expandable to meet evolving industry needs.
Parameters:
Product Name: 560CMU04
Processor: 32-bit industrial-grade CPU
Memory:High-capacity RAM and flash storage
Ethernet Ports:2 x 10/100BaseT
Serial Ports:4 x RS-232/ RS-485
Operating Temperature: -25C to +70C
Storage Temperature: -40C to +85C
Frequently Asked Questions:
Q1: Can the 560CMU04 handle multiple communication protocols simultaneously?
A1: Yes, it supports Ethernet, RS-232, RS-485, and other protocols for versatile connectivity.
Q2: What environments is the 560CMU04 suitable for?
A2: It operates reliably in harsh industrial conditions, with temperatures from -25C to +70C.
Q3: Does it support remote monitoring and configuration?
A3: Absolutely. SCADA integration allows full remote supervision and secure configuration.
Q4: Is the 560CMu04 compatible with ABB Advant systems?
A4: Yes, it integrates seamlessly with Advant Master and Symphony Plus platforms.
Q5: How reliable is the ABB 560CMU04?
A5: The 560cMu04 is dssigned for industrial environments,with an MTBF exceeding 100.,000 hours, ensuring dependable long-term operation
Datasheet Link:
560CMU04 ABB 1KGTO11300R Control Board Module PDF Datasheet
