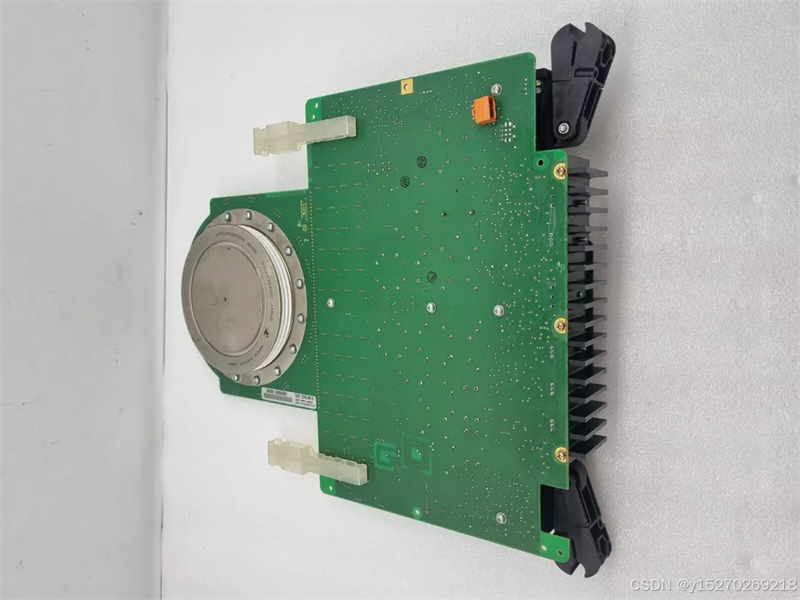

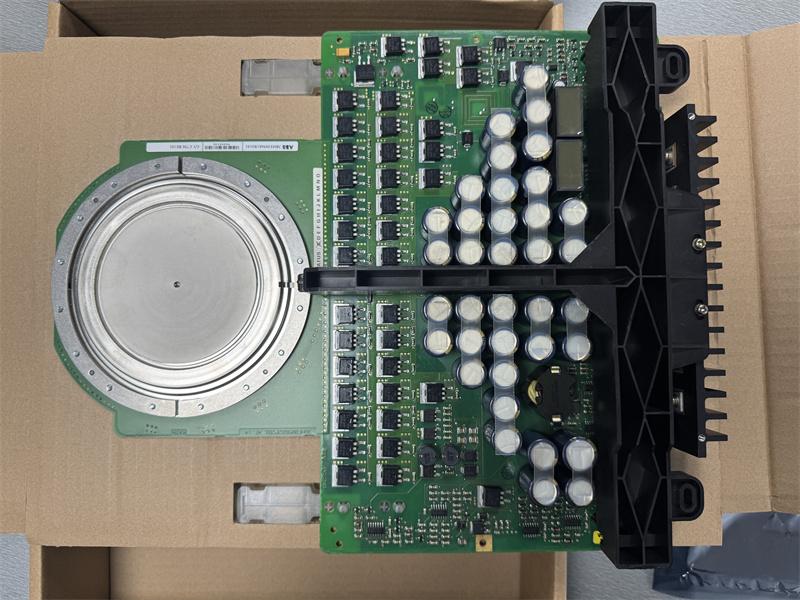

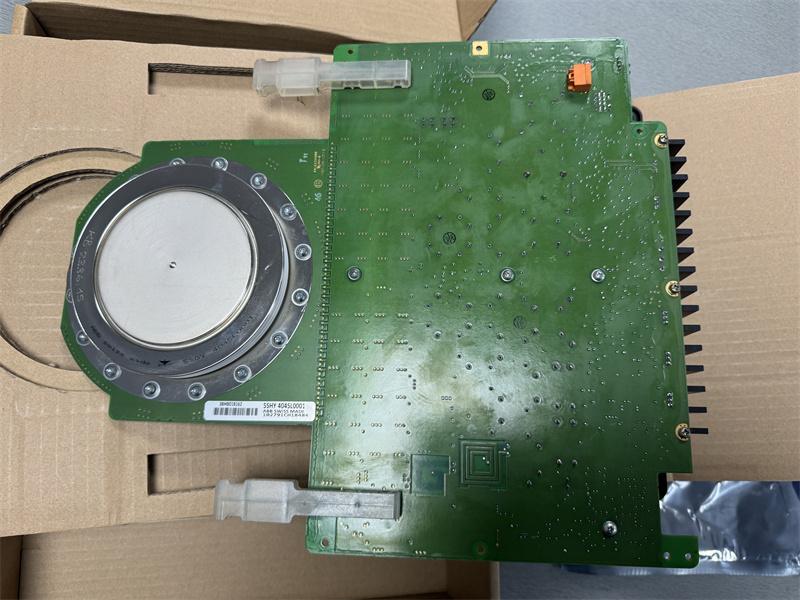

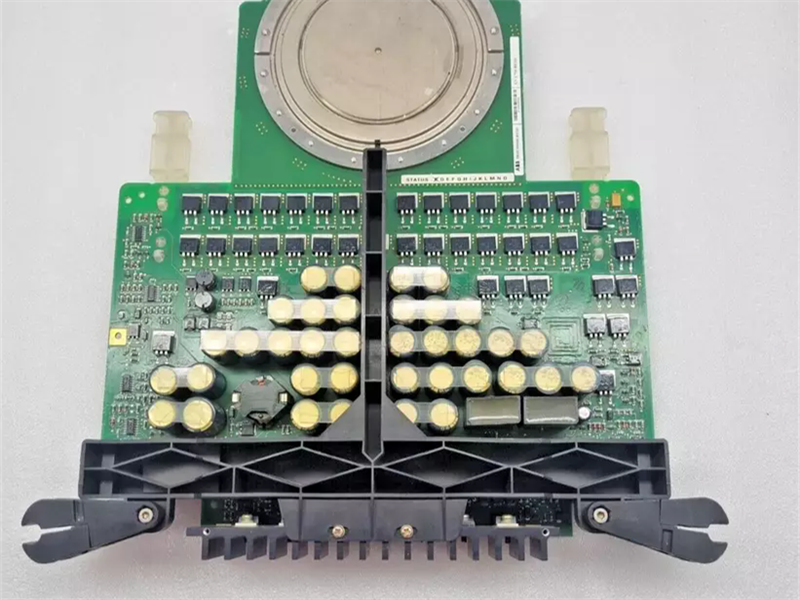

5SHY3545L0010 ABB 3BHB013088R0001 Thyristor Module

Description:

The 5SHY3545L0010 3BHB013088R0001 controllable body module is a high-performance thyristor module produced by ABBQ(Alstom), which is widely used in industrial power control and power electronic equipment. Silicon Controlled rectifier (SCR, Siicon Controlled Rectifer) modules are commonly found in applications such as rectification, speed regulation and power control of alternating current.

Basic product information
Product Name :5SHY3545L0010 3BHB013088R0001 Thyristor Module
2. Manufacturer :ABB(Alstom)
3. Type: Thyristor Module (SCR module)
4. Application fields: Industrial power regulation, variable frequency drive, power control, motor speed regulation, power electronic equipment, etc.
Main features
1. High power control capability
Thyristor modules can control high-power loads and are particularly suitable for power regulation in AC systems.
2. High reliability and durability:
This module is made of high-quality materials and produced with advanced techniques, ensuring long-term efficient operation and excellent anti-interference capability.
3. Good heat dissipation performance
The internal design takes heat dissipation into account, enabling continuous and stable operation under high-power loads and making it suitable for long-term continuous running.
4. Low switching loss
It has a relatively low switching loss, which helps to improve the overall system efficiency and reduce energy loss.
5. Protective function:
It is equipped with built-in overload protection, short-circuit protection, over-temperature protection and other functions to ensure the safety of the module in harsh working environments.

Features:

• High snubberless turn-off rating
• Optimized for medium frequency
• High electromagnetic immunity
• Simple control interface with status feedback
• AC or DC supply voltage
• Option for series connection (contact factory)
