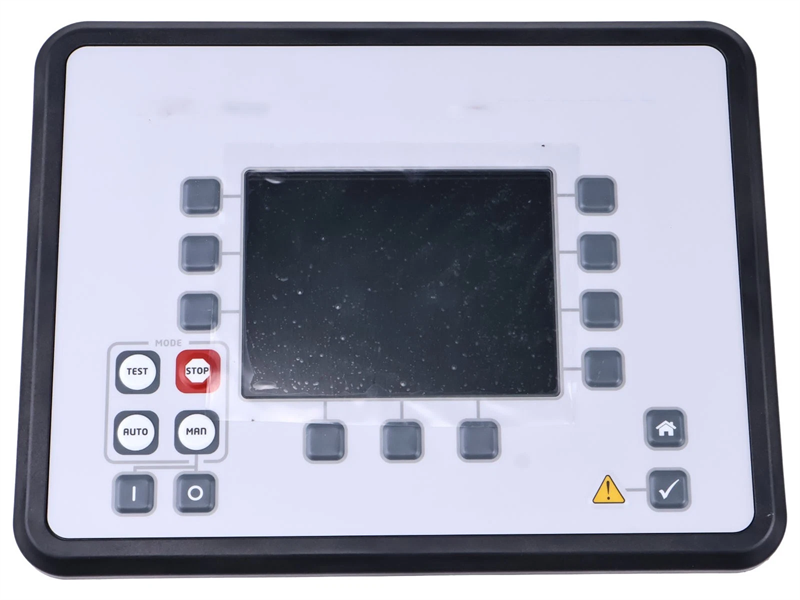

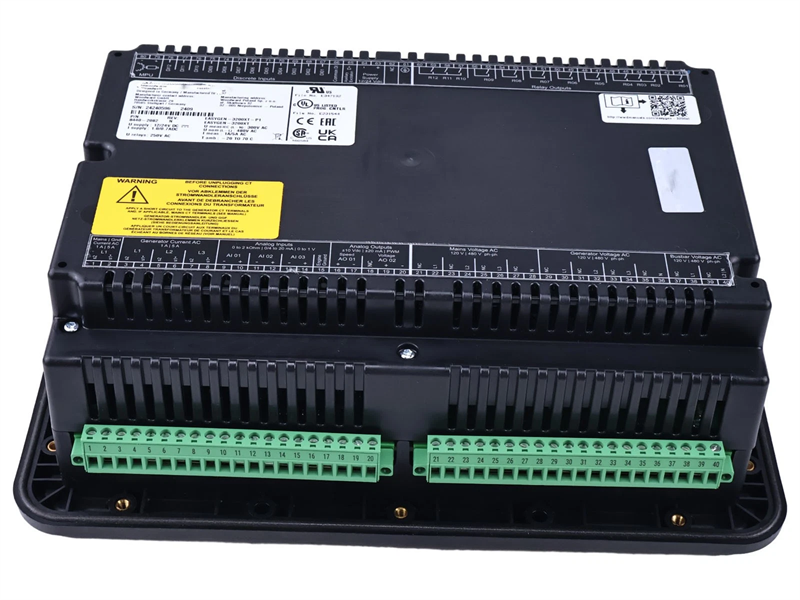

8440-2082 Woodward Easygen3200XT Genset Control

Description:

Woodward raised the standard in genset paralleling control and power management system with the easYgen3000XT Series controllers. These controllers come with standardized software that is simple to configure, yet easily customized for individual applications. Enhanced connectivity enables fast and secure interfacing to other controls and communications systems while the enhanced hardware is a drop-in replacement for previous generation easYgen-3000 Series Controls.

The easYgen-3000XT Series controllers operate gen-sets of all sizes and applications. These controllers include specifically designed algorithms and logic to start, stop, control, and protect the genset, circuit breaker and the utility, where applicable. It allows standardizing on a single, affordable genset controller for distributed power generation applications. The applications range from single stand-alone emergency backup power to parallel load sharing of multiple gen-sets in complex, segmented distribution systems with multiple utility feeds and tie breakers. Woodward's easYgen-3000XT Series paralleling genset controllers provide exceptional versatility and value for OEM switchgear builders, generator packagers, and system integrators.

The easYgen-3200XT application range spans from isolated operation of a single genset to load sharing of up to 32 gen-sets in islanded and/or parallel operation with a single utility. It combines complete engine-generator control and protection with advanced, peer-to-peer paralleling functionality and innovative features in a robust,attractive, user-friendly and all-in-one package. Its integrated LogicsManager™ and AnalogManager™ programmable logic functionalities provide outstanding application flexibility and can often eliminate the need of an additional PLC control, yet can easily integrate with SCADA or PLC-based control systems where desired.

The easYgen-3200XT also comes without a display in a rugged metal housing suitable for back panel installations. A sophisticated touch screen remote panel (RP-3000XT) complements it as an operator control panel. A version of easYgen-3200XT (easYgen-3200XT-P1-LT) is designed to operate down to -400 C for outdoor applications.
Feature
• Operation modes: AUTO, STOP, MANUAL, and TEST modes accessible through face plate or discrete input
• Breaker control: Slip frequency/phase matching synchronization, open/close control, breaker monitoring
• Load transfer: open/closed transition, interchange, soft loading/unloading, Utility parallel
• Load share and device to device communication over Ethernet or CAN or hot redundant CAN/Ethernet
• Remote control via interface (Modbus TCP, Modbus RTU) and via discrete/analog inputs for adjusting speed, frequency, voltage, power, reactive power, and power factor set points
• Freely configurable PID controllers for various control purposes, such as heating circuit control (CHP applications), water level, fuel level, pressure and/or other process values
• Direct support to several ECUs: Scania S6, MTU ADEC ECU7/8, Volvo EMS2 & EDC4, Deutz EMR2 & EMR3, MAN MFR/EDC7, SISU EEM, Cummins and Woodward EGS02 ECU
• Modbus master and Modbus data telegram mapper support with dedicated PC tools
• CAN J1939 support to exhaust gas after-treatment (DPF, SCR) triggered by global diesel emissions regulations
• „System Update“ function ensures every unit recognizes other units in the network and helps isolate root-cause quickly during troubleshooting
• Time/Date synchronization over Simple Network Time Protocol (SNTP)
• Cylinder head/exhaust temperature monitoring (Temperatures come from J1939 or CANopen devices)
• Woodward ToolKit™ software for flexible setup from a single connection to the network. The ToolKit can be accessed either via USB, or via Ethernet, or via CAN port
• Multi-lingual capability: English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish and an empty slot for custom language via a dedicated MS Excel based PC tool

Pharameters:

Power supply...........................................................12/24 VDC (8 to 40 VDC)
Intrinsic consumption ........................................ max. 14 W (LT: max.22W)
Ambient temperature (operation)................-20 to 70 °C (LT: -40 to 70 °C)
Ambient temperature (storage)........................-30 to 80 °C / -22 to 176 °F
Ambient humidity.......................................................95%, non-condensing
Voltage (software configurable) ..................................................... ( /)
100 Vac Rated (Vrated)............................................ 69/120 VAC
Max. value (Vmax)............................................ 86/150 VAC
and 400 Vac Rated (Vrated).......................................... 277/480 VAC
Max. value (Vmax).......................................... 346/600 VAC
Rated surge volt. (Vsurge)....................................................4.0 kV
Accuracy .......................................................................................Class 0.5
Measurable alternator windings ... 3p-3w, 3p-4w, 3p-4w OD, 1p-2w, 1p-3w
Setting range..................... primary.................................50 to 650,000 VAC
Linear measuring range ..............................................................1.25×Vrated
Measuring frequency............................................... 50/60 Hz (40 to 85 Hz)
High Impedance Input; Resistance per path................................... 2.0 M
Max. power consumption per path................................................ < 0.15 W
Current (Isolated, software configurable) Rated (Irated).........1A or 5A
Linear measuring range ........................................................ Igen = 3.0×Irated
Imains/ground = 1.5×Irated
Setting range.......................................................................... 1 to 32,000 A
Burden..........................................................................................< 0.10 VA
Rated short-time overcurrent (1 s)..........................[1] 50×Irated, [5] 10×Irated
Accuracy ...................................................................................... Class 0.5
Power .........................................................................................................
Setting range..........................................................0.5 to 99,999.9 kW/kvar
Accuracy .......................................................................................Class 1.0
Discrete inputs ..............................................................................isolated
Input range ..............................................................12/24 VDC (8 to 40 VDC)
Input resistance.............................................................. approx. 20 kOhms

RELATED PRODUCTS

_____________________________________________________________________

• Engine Speed Control actiVgen (Product Specification # 03419): P/N 8440-2100
• Remote Panel RP-3000XT (Product Specification # 37592)
• ToolKit (Product Specification # 03366)
• I/O Expansion Board IKD1 (Product Specification # 37171): P/N 8440-2116
• Load Share Gateway LSG (Product Specification # 37451)
• Electronic Pickup Unit EPU-100 (Product Specification # 37562): P/N 8445-1045
• CANbus based Remote Annunciator easYlite 100 (Product Specification # 37279): P/N 8446-1023
• Power Generation Learning Module (Product Specification # 03412): P/N 8447-1012
• Data TelegramMapper software (Application Note # 37684)
• Modbus master software (Application Note # B37919)
• HMI localization tool (Product Specification # B37918)
• Profibus Gateway ESEPRO (Application Note # 37577): P/N 8445-1046
• Ethernet (Modbus/TCP) Gateway ESENET (Application Note # 37576): P/N 8445-1044
• CANbus to Fiber Optic Converters (Application Note # 37598):
DL-CAN P/N 8445-1049 and DL-CAN-R P/N 8445-1048
• Remote Access Gateway (with HMS Netbiter EasyConnect EC250 and EC350)
• Thermocouple Scanner AXIOMATIC AXTC20
• WAGO and Phoenix expansion CAN couplers

Frequently Asked Questions:
1.Does the customer arrange for the inspection before the goods are shipped?
Confirmed acceppted this issue

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods
