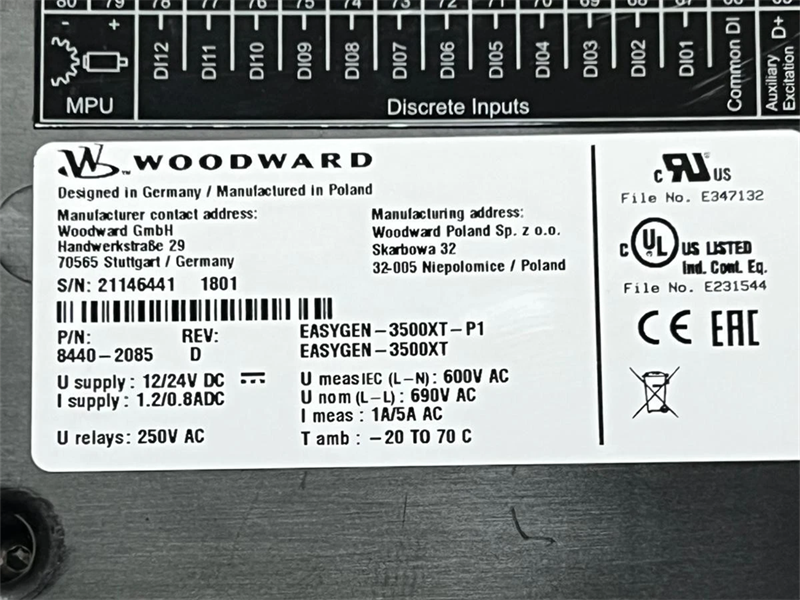

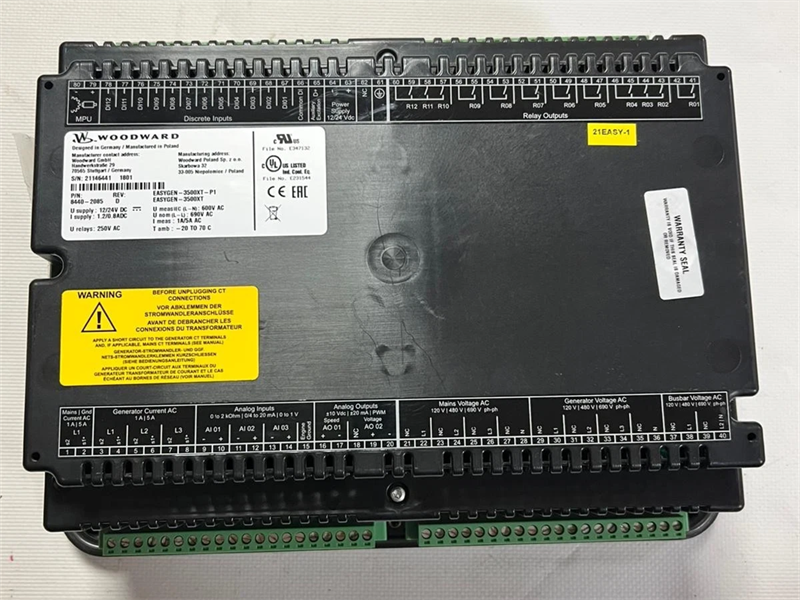

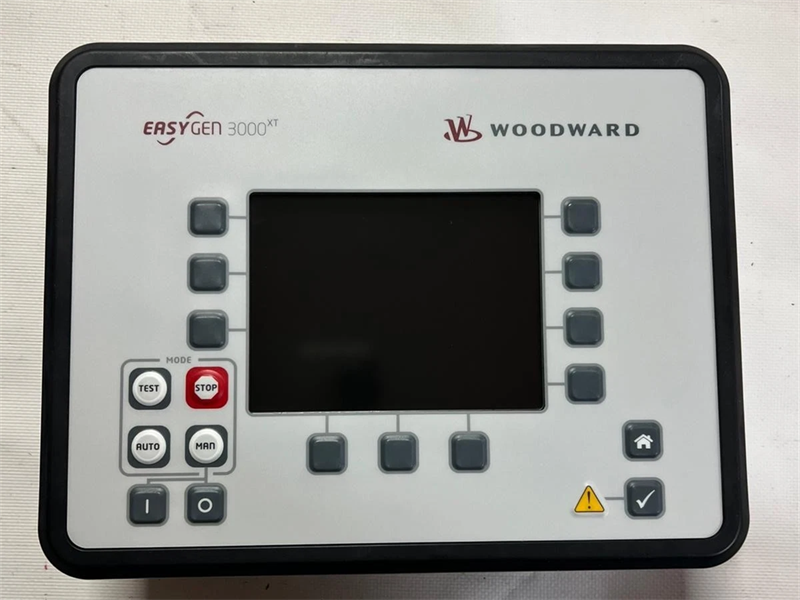

8440-2085 Woodward Easygen3500XT Genset Control

Description:

Woodward raised the standard in genset paralleling control and power management system with the easYgen3000XT Series controllers. These controllers come with standardized software that is simple to configure, yet easily customized for individual applications. Enhanced connectivity enables fast, reliable and secure interfacing to other controls and communications systems while the enhanced hardware is a drop-in replacement for previous generation easYgen-3000 Series Controls.

The easYgen-3500XT with a dedicated CANopen network for connectivity to up to 16 LS-5 Circuit Breaker Controls, enables control of complex distribution systems having multiple utility feeds and tie breakers, and parallel load sharing of up to 32 generators on up to 32 different bus segments. Redundant load sharing is selectable using Ethernet B and C networks for improved reliability. The control combines complete engine-generator control and protection with advanced, peer-to-peer paralleling functionality and innovative features in a robust, attractive, user-friendly and all-in-one package. The easYgen-3500 XT controls are designed to direct connect up to 690Vac and operate to 4000m above sea level without derating.

The easYgen-3500XT is available in two packages. P1, focused at complex paralleling applications provides redundant Ethernet communication, LS-5 connectivity, and standard I/O set, while P2, Co-Gen/CHP model offers expanded onboard I/O set, 3-ph busbar voltage measurement capability and an interface expansion card slot for an additional interface/protocol. These packages are available without a display in a rugged metal housing suitable for back panel installations (easYgen-3400XT-P1 and easYgen-3400XT-P2 respectively). A sophisticated touch screen remote panel (RP-3000XT) complements them as an operator control panel. A version of easYgen-3500XT (easYgen-3500XT-P1-LT and easYgen-3500XT-P2-LT) is designed to operate down to -400 C for outdoor applications.

Feature

• Full connectivity of up to 32 Generators and 16 LS-5 circuit breaker controls in one application
• Run-up synchronization / Dead Field Paralleling to quickly get several synchronous generators onto the load
• Three-phase true RMS power sensing with Class I accuracy
• Operation modes: AUTO, STOP, MANUAL, and TEST - accessible through face plate or discrete input
• Breaker control: Slip frequency / phase matching synchronization, open / close control, breaker monitoring
• Load transfer: open / closed transition, interchange, soft loading / unloading, Utility parallel
• Load share and device to device communication over CAN or Ethernet (Redundant possible)
• Remote control via interface (Modbus TCP, Modbus RTU) and via discrete/analog inputs for adjusting speed, frequency, voltage, power, reactive power, and power factor set points
• Freely configurable PID controllers for various control purposes, such as heating circuit control (CHP applications), water level, fuel level, pressure and / or other process variables
• Direct support to several ECUs: Scania S6, MTU ADEC ECU7/8/9, Volvo EMS2 & EDC4, Deutz EMR2 & EMR3, MAN MFR / EDC7, SISU EEM, Cummins and Woodward EGS02 ECU
• Field ECU support and additional I/O expansion board connectivity through sequencer files
• “System Update” function for online troubleshooting and adding / removing generator sets
• Time / Date synchronization over Simple Network Time Protocol (SNTP)
• Cylinder head / exhaust temperature monitoring (Temperatures come from J1939 or CANopen devices)
• Woodward ToolKit™ software for flexible setup from a single connection to the network. The ToolKit can be accessed either via USB, or via Ethernet, or via CAN ports.
• Multi-lingual capability: English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish

Pharameters:

Power supply...........................................................12/24 VDC (8 to 40 VDC)
Intrinsic consumption ........................................ max. 14 W (LT: max.22W)
Ambient temperature (operation)................-20 to 70 °C (LT: -40 to 70 °C)
Ambient temperature (storage)........................-30 to 80 °C / -22 to 176 °F
Ambient humidity.......................................................95%, non-condensing
Voltage (software configurable) ..................................................... ( /)
100 Vac Rated (Vrated)............................................ 69/120 VAC
Max. value (Vmax)............................................ 86/150 VAC
and 400 Vac Rated (Vrated).......................................... 277/480 VAC
Max. value (Vmax).......................................... 346/600 VAC
Rated surge volt. (Vsurge)....................................................4.0 kV
Accuracy .......................................................................................Class 0.5
Measurable alternator windings ... 3p-3w, 3p-4w, 3p-4w OD, 1p-2w, 1p-3w
Setting range..................... primary.................................50 to 650,000 VAC
Linear measuring range ..............................................................1.25×Vrated
Measuring frequency............................................... 50/60 Hz (40 to 85 Hz)
High Impedance Input; Resistance per path................................... 2.0 M
Max. power consumption per path................................................ < 0.15 W
Current (Isolated, software configurable) Rated (Irated).........1A or 5A
Linear measuring range ........................................................ Igen = 3.0×Irated
Imains/ground = 1.5×Irated
Setting range.......................................................................... 1 to 32,000 A
Burden..........................................................................................< 0.10 VA
Rated short-time overcurrent (1 s)..........................[1] 50×Irated, [5] 10×Irated
Accuracy ...................................................................................... Class 0.5
Power .........................................................................................................
Setting range..........................................................0.5 to 99,999.9 kW/kvar
Accuracy .......................................................................................Class 1.0
Discrete inputs ..............................................................................isolated
Input range ..............................................................12/24 VDC (8 to 40 VDC)
Input resistance.............................................................. approx. 20 kOhms

RELATED PRODUCTS

1. Circuit Breaker Controller LS-511/521 & LS-512/LS-522 (Product Specification # 37522 and #37661/37663)
2. Remote Panel RP-3000XT (Product Specification # 37592)
3. ToolKit (Product Specification # 03366)
4. I/O Expansion Board IKD1 (Product Specification # 37171)
5. Engine Speed Control actiVgen (Product Specification # 03419): P/N 8440-2100
6. Load Share Gateway LSG (Product Specification # 37451)
7. Electronic Pickup Unit EPU-100 (Product Specification # 37562)
8. CANbus based Remote Annunciator (Product Specification # 37279): easYlite 100 P/N 8446-1023
9. Power Generation Learning Module (Product Specification # 03412): P/N 8447-1012
10. Data TelegramMapper software (Application Note # 37684)
11. Profibus Gateway (Application Note # 37577): ESEPRO P/N 8445-1046
12. Ethernet (Modbus/TCP) Gateway (Application Note # 37576): ESENET P/N 8445-1044
13. CANbus to Fiber Optic Converters (Application Note # 37598): DL-CAN P/N 8445-1049 and DL-CAN-R P/N 8445-1048
14. Remote Access Gateway (with HMS Netbiter EasyConnect EC250 and EC350)
15. Thermocouple Scanner (AXIOMATIC AXTC20)
16. WAGO and Phoenix expansion CAN Couplers

Frequently Asked Questions:
1.Does the customer arrange for the inspection before the goods are shipped?
Confirmed acceppted this issue

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods

Datasheet Link:

8440-2085 Woodward Easygen3500XT Genset Control PDF Datasheet
