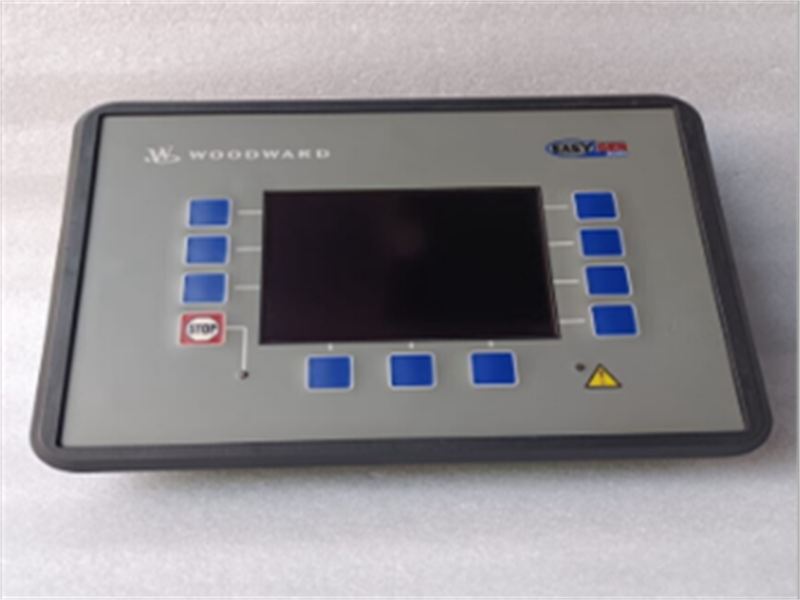

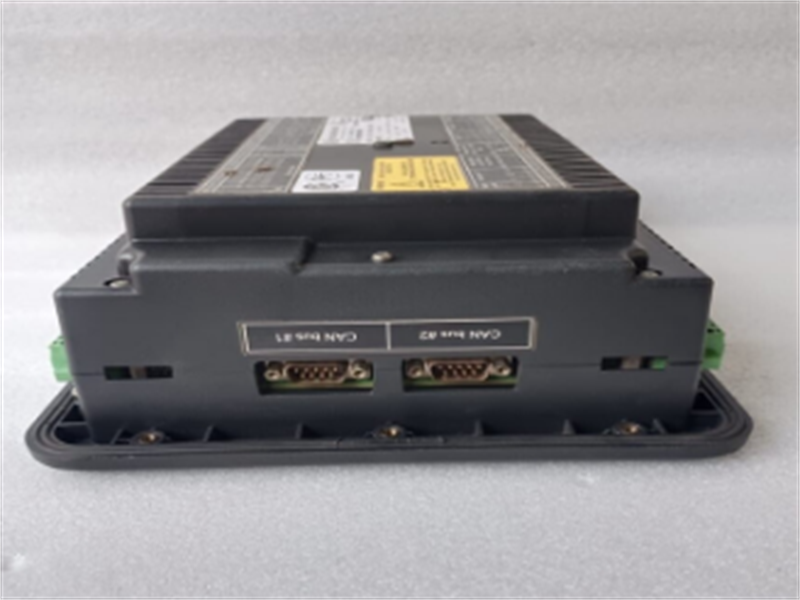

8440-2165 Woodward Microprocessor-based Synchronizer

Description:

The 8440-2165 SPM-D Synchronizer is a microprocessor-based device designed for single- or three-phase AC power generation. It ensures synchronization, load sharing, and generator protection.

Pharameters:

Accuracy: Class 1
Power Supply: 12/24 Vdc
Intrinsic Consumption: Maximum 10 W
Ambient Temperature: -20 to 70 °C
Ambient Humidity: 95%, non-condensing
Measuring Frequency: 40 to 70 Hz
Linear Measuring Range up to: 1.3xVrated
Input Resistance:
0.21 MW
0.696 MW
Max. Power Consumption per Path: Less than 0.15 W
Linear Measuring Range up to: 3.0xirated
Load: Less than 0.15 VA
Discrete Inputs: Isolated
Input Range: 12/24Vdc or 18 to 250 Vac/dc
Input Resistance: Approximately 6.8 kW or 68 kW
Features:

• Automatic Synchronization

Matches frequency, phase, and voltage.

• Load Balancing

Efficiently distributes load.

• Reliable Communication

Supports the CANopen protocol for robust data exchange in industrial control networks.

• Universal Compatibility

 Works with Woodward or other compatible speed controllers and automatic voltage regulators.

• Space-Saving Design

Its compact form factor makes it ideal for space-constrained applications.

• Versatility

Widely applicable to various types of engine, turbine, and industrial equipment control systems.

• High-Performance Processing

Employs advanced digital signal processing technology.

• Flexible Programming and Configuration

Supports multiple programming languages and development tools.

• Adjustable Range and Filtering Functions

Allows selection of appropriate ranges and provides filtering functionality to meet specific application requirements.

• Internal Diagnostics and Fault Detection

Monitors the module's operating status and performance.

Datasheet Link:

8440-2165 Woodward Microprocessor-based Synchronizer PDF Datasheet
