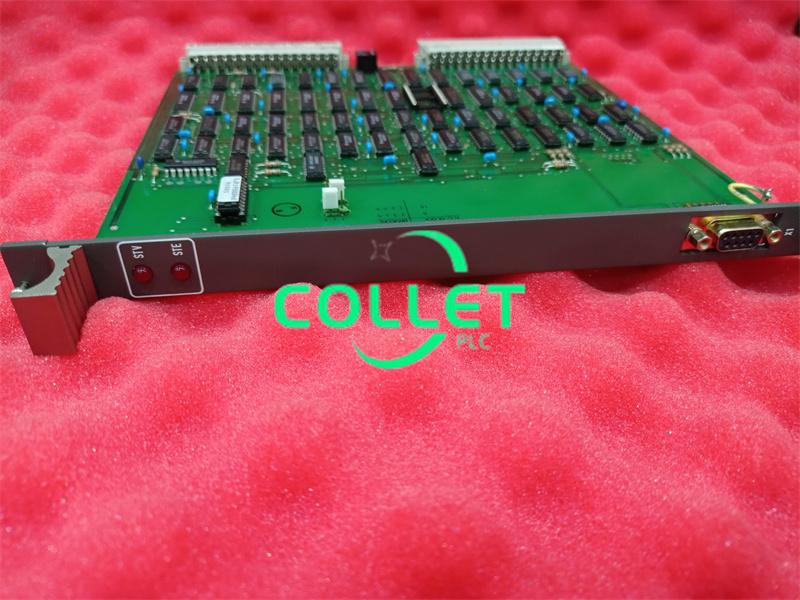

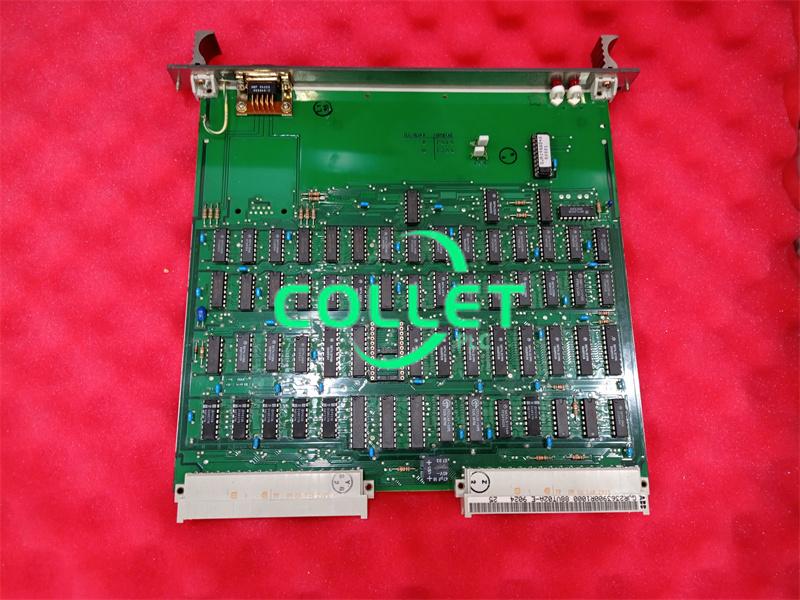

Manufacture |
ABB |
|
Model |
88VT02A |
| PN No. |
GJR236390R1000 |
|
Catalog |
BBC |
|
Description |
Telegram Handling Module |
| Origin | Sweden |
| HS CODE | 85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.4 kg |
Description:
The 88VT02A ABB GJR2363900R1000 is a door control unit designed specifically for industrial automation. It is primarily used to control and manage key components in the cabinet doors of ABB AC drive products, such as the ACS series inverters.
The 88VT02A ABB GJR2363900R1000 is an integrated mounting plate and interface unit. Its core function is to provide a standardized, easy-to-install, and secure solution for safely and reliably connecting control elements (such as push buttons, switches, indicator lights, and potentiometers) on the inverter cabinet door to the inverter main control board inside the door.
Features:
Provides a sturdy metal plate for pre-installing and securing all necessary door mounting components.
The unit connects to the drive's main control board via one or more pre-defined multi-core cables and connectors. This greatly simplifies wiring, reduces wiring errors, and improves installation efficiency and reliability.
The board may contain simple circuitry for signal distribution, isolation, or level conversion, ensuring stable signal transmission between the door assembly and the drive's main board.
Through standardized and integrated design, control cabinet door openings and wiring clutter are reduced, improving overall electrical safety and mechanical protection levels (e.g., IP rating).
Designed for use with ABB drives (such as the ACS880, ACS580, and ACS380 series), ensuring full hardware and software compatibility.
Parameters:
Product Name: 88VT02A
Main Connector: One 37-pin (female) D-Sub connector (HD type), located on the back of the panel.
-Voltage: +24 V DC (±20%)
-Maximum Output Current: ~200 mA
Quantity: Up to 6 DI channels can be used.
Type: Dry contact (passive). Signals are shorted to 0 V via a button/switch.
Voltage Levels: 0 V (closed), 24 V (open).
Quantity: Up to 3 DO channels can be used (can be used as digital outputs or pulse outputs).
Capacity: Each DO channel has a maximum output current of 100 mA, suitable for directly driving LED indicators.
Indicator Calculation: Ensure that each indicator is rated for 24 V DC and its operating current is less than 100 mA. The total current of multiple indicators must be less than the 200 mA limit.
Quantity: 1 channel dedicated to the potentiometer on the door.
Type: Potentiometer input.
Resistance requirement: 1 kΩ or 10 kΩ potentiometers are recommended.
Quantity: Typically not directly connected to the 37-pin connector on the door control unit.
Datasheet Link:
88VT02A ABB GJR236390R1000 Gate Control Unit PDF Datasheet
88VT02A ABB Gate Control Unit
NEW AND ORIGIN ITEM IN STOCK
WITH ONE YEAR WARRANTY
Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
