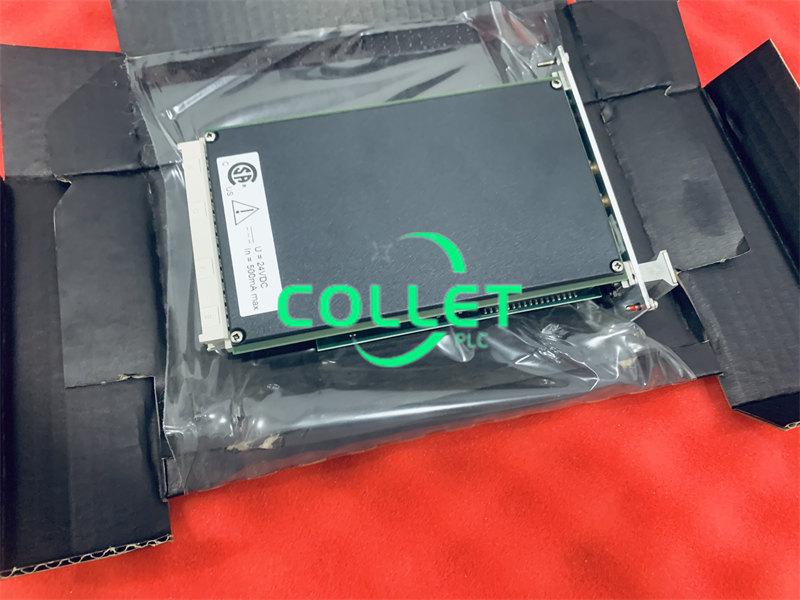

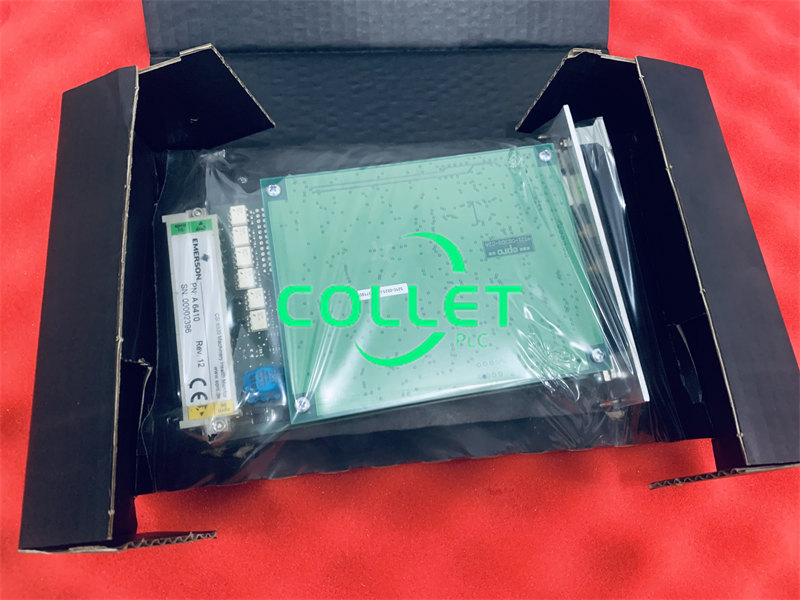

A6140 EMERSON Dual-channel Shaft Absolute Vibration Monitor

Description:

A6140 is a Shaft Absolute Vibration Monitor for AMS 6500 Machinery Health Monitor

-Two-channel, 3U size, 1-slot plugin module decreases cabinet space requirements in half from traditional four-channel 6U size cards
-API 670 compliant, hot swappable module
-Front and rear buffered and proportional outputs, 0/4-20 mA output, 0 - 10V output
-Self-checking facilities include monitoring hardware, power input, hardware temperature, sensor and cable
-For connecting one displacement sensor and one seismic, or piezoelectric sensor, so that the combined output is shaft absolute relative to free space
-Use with displacement sensor 6422, 6423, 6424 and 6425 and driver CON 011/91, 021/91, 041/91 and casemounted piezo electric velocity sensor

Old Module: MMS 6140
New Module: A6140
