Manufacture |
ABB |
|
Model |
83SR04A-E |
| PN No. |
GJR2390200R1411 |
|
Catalog |
PROCONTROL P |
|
Description |
Binary Control Module |
| Origin | Switzerland |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61(CM) |
| Weight | 0.55 kg |
Description:

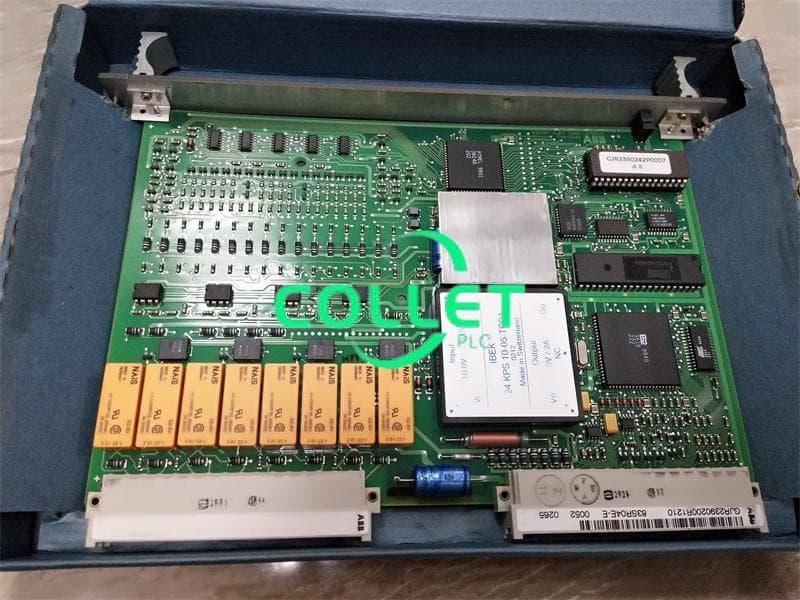

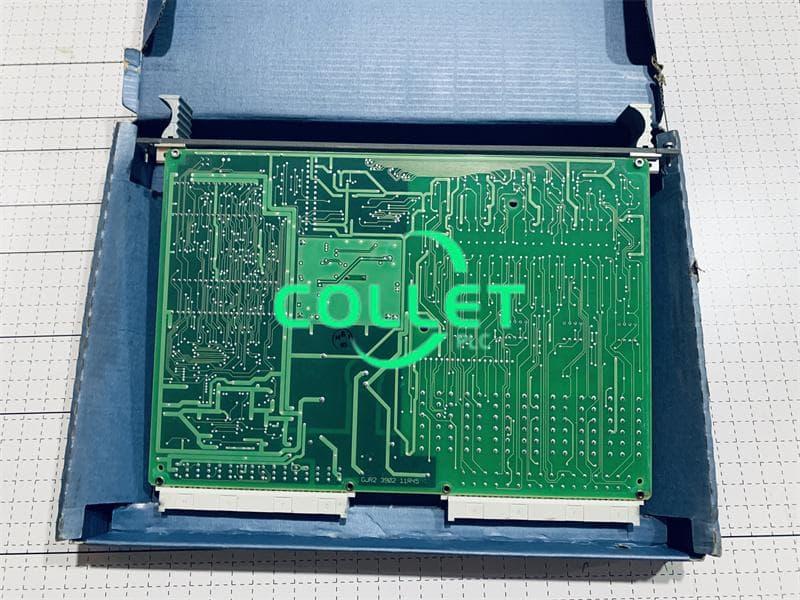

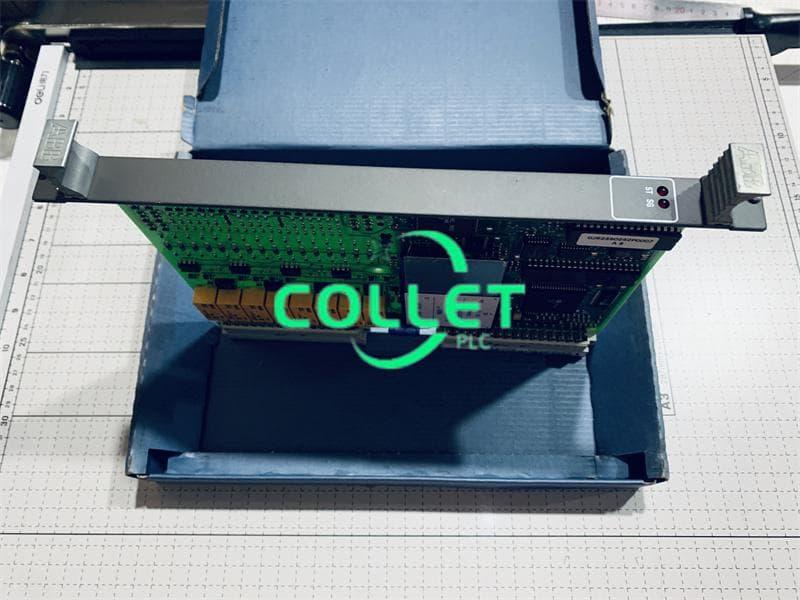

ABB 83SR04A-E GJR2390200R1411 Binary Control Module
The module is used for stored-program binary control tasks for protection purposes. It can be used for the following applications:
- Binary control for boiler protection
- Function group control (sequential control)
This module is intended to be used in conjunction with the process operator station.
It can be applied for the following operating mode:
- Binary control mode (and analog basic functions) with variable cycle time
The operating mode is set with function block TXT1 which is listed as the first element of the structure.
For binary control applications, up to 4 function group control circuits or 4 drive control circuits or combined drive and group control circuits per module can be implemented (the module cycle time has to be taken into account).
The module uses four 2–fold hardware interfaces (8 outputs) for the relay output modules or four 4–fold hardware interfaces (16 inputs) for the process.
1.What's payment term can support?
T/T Only
2.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
ABB 83SR04A-E GJR2390200R1411 Binary Control Module PDF Datasheet
