Manufacture |
ABB |
|
Model |
BIO2 |
| PN No. |
1MRS050643E |
|
Catalog |
REM545 |
|
Description |
Binary Input/Output Module |
| Origin | Sweden |
| HS CODE | 85389099 |
| Dimension |
1.2*0.8*0.35 (CM) |
| Weight | 0.5 kg |
Description:

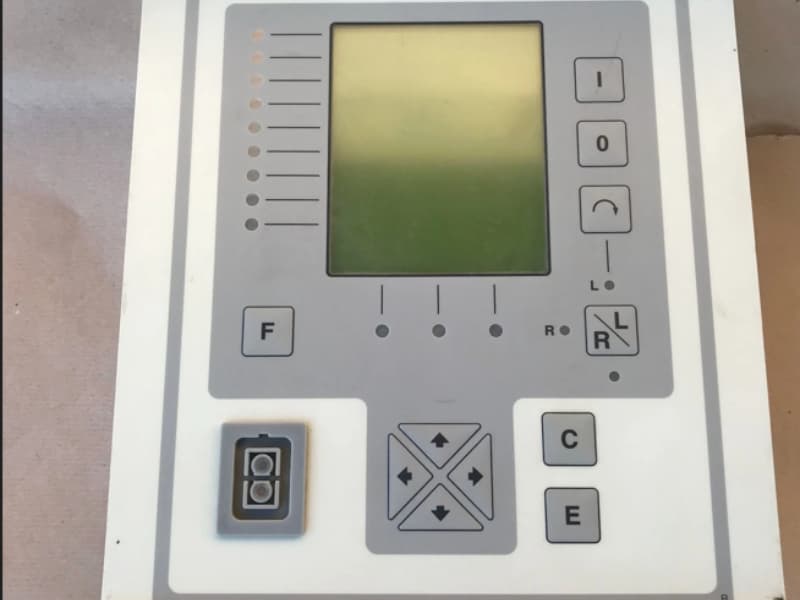

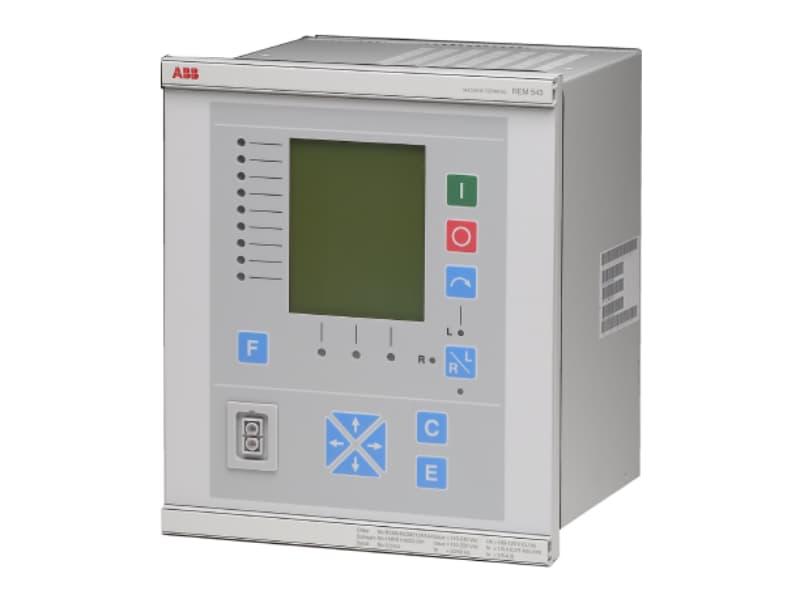

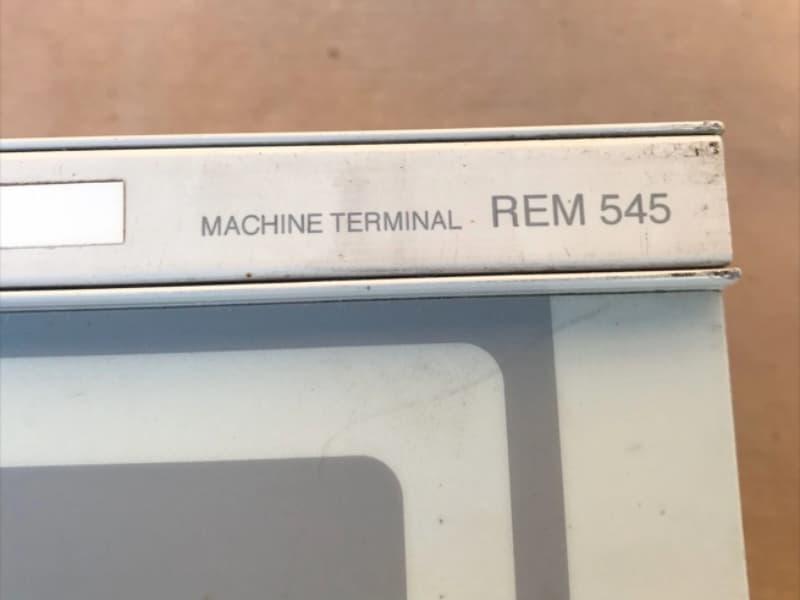

ABB BIO2 1MRS050643E Binary Input/Output Module
Application
The REM545 feeder terminals are designed to be used for protection, control, measurement and supervision of medium voltage networks. They can be used with different kinds of switchgear including single busbar, double busbar and duplex systems. The protection functions also support different types of networks such as isolated neutral networks, resonant-earthed networks and partially earthed networks.
ABB BIO2 1MRS050643E Binary Input/Output Module
Application
The REM545 feeder terminals are designed to be used for protection, control, measurement and supervision of medium voltage networks. They can be used with different kinds of switchgear including single busbar, double busbar and duplex systems. The protection functions also support different types of networks such as isolated neutral networks, resonant-earthed networks and partially earthed networks.
Features
1. Feeder terminal for protection, control, measurement and supervision of medium voltage networks.
2.Additional functions including synchrocheck, frequency protection, capacitor bank protection and control.
3. Voltage and current measurement via conventional measuring transformers or current sensors and voltage dividers.
4. RTD/analogue module for temperature measurement, current/voltage measurement and mA-outputs.
5.Fixed human-machine interface including a large graphic display, or an external display module for flexible switchgear installation.
6.Communication over three communication interfaces: one for local communication with a PC and two for simultaneous dual port communication for e.g. a substation communication system and a substation monitoring system.
7.Protection functions including e.g. nondirectional and directional overcurrent and earth-fault protection, residual voltage, overvoltage and undervoltage protection, thermal overload protection, CBFP and auto-reclosing.
8.Control functions including local and remote control of switching objects with synchro-check, status indication of the switching objects and interlockings on bay and station level .
9.Measurement of phase currents, phase-tophase and phase-to-neutral voltages, neutral current and residual voltage, frequency, power factor, active and reactive power and energy.
sheet Link:
ABB BIO2 1MRS050643E Binary Input/Output Module PDF Datasheet
