Manufacture |
ABB |
|
Model |
CC-U/STD |
| PN No. |
1SVR040001R0400 |
|
Catalog |
SVR Series |
|
Description |
Signal Converter |
| Origin | Sweden |
| HS CODE | 85389099 |
| Dimension |
1.2*0.8*0.35 (CM) |
| Weight | 2.5 kg |
Description:

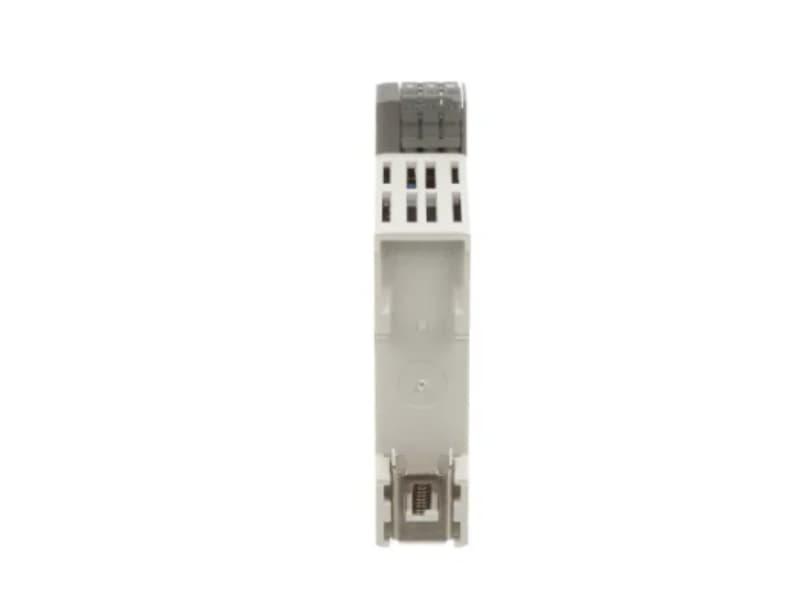

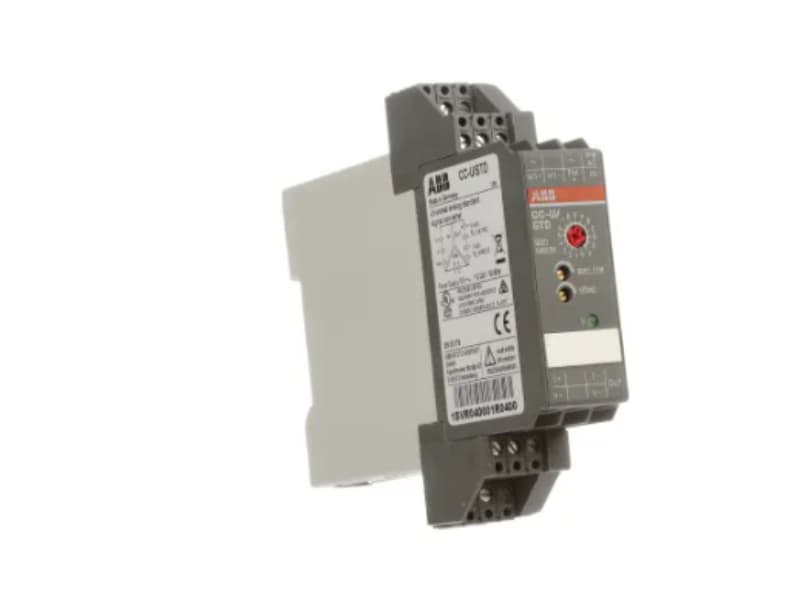

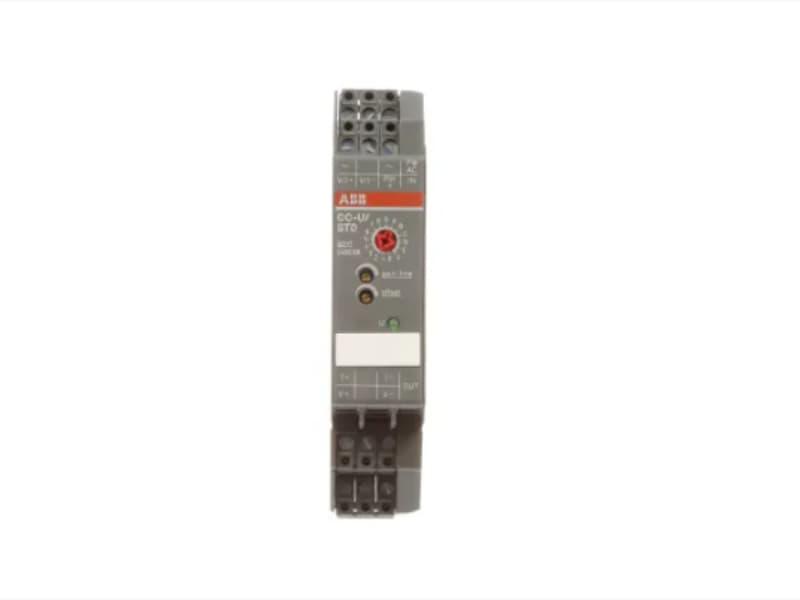

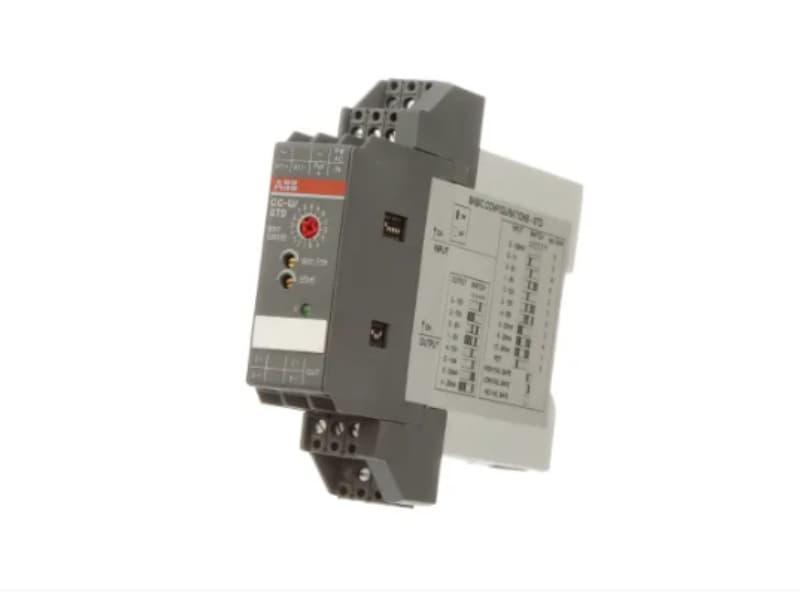

ABB CC-U/STD 1SVR040001R0400 CAIS UNI/110-240AC/100-300DC
The CC-U/STD is a standard analog signal converter from the CC-U range. This converter, with 3-way electrical isolation, operates with a rated control supply voltage of 110-240 V AC. It provides short-circuit proof signal outputs, pluggable connecting terminals and configurable detection of input voltage signal interruption (low fail safe / high fail safe). 28 input signal ranges (16 standard and 12 non-standard) and 41 output signal ranges (8 standard and 33 non-standard) can be configured by means of directly accessible lateral DIP switches. The gain and the offset adjustment is made via front-face operating elements. Applied supply voltage is displayed by a green LED.
ABB CC-U/STD 1SVR040001R0400 CAIS UNI/110-240AC/100-300DC
The CC-U/STD is a standard analog signal converter from the CC-U range. This converter, with 3-way electrical isolation, operates with a rated control supply voltage of 110-240 V AC. It provides short-circuit proof signal outputs, pluggable connecting terminals and configurable detection of input voltage signal interruption (low fail safe / high fail safe). 28 input signal ranges (16 standard and 12 non-standard) and 41 output signal ranges (8 standard and 33 non-standard) can be configured by means of directly accessible lateral DIP switches. The gain and the offset adjustment is made via front-face operating elements. Applied supply voltage is displayed by a green LED.
sheet Link:
ABB CC-U/STD 1SVR040001R0400 CAIS UNI/110-240AC/100-300DC PDF Datasheet
