AE119 Vibration 800-119-000-112 Housing expansion probe

Description:

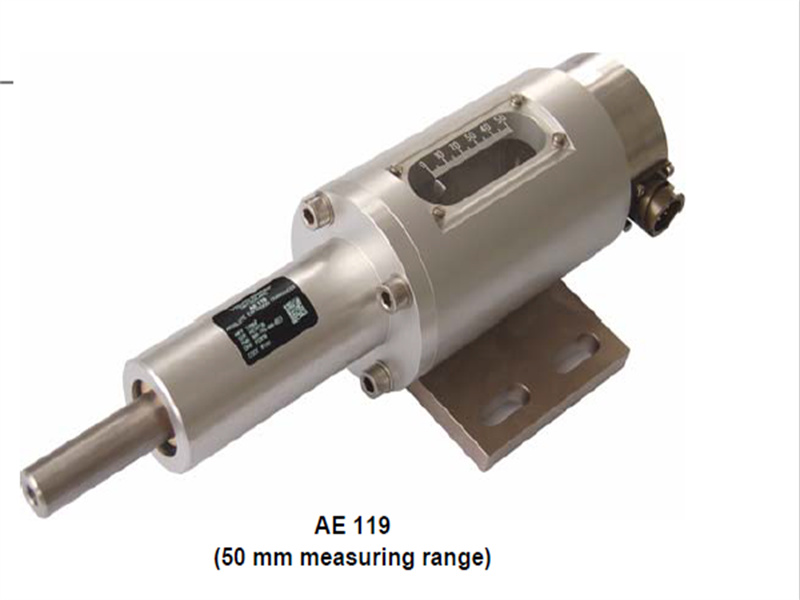

The AE119 housing expansion probe is designed to measure the absolute expansion that thermal machines experience due to variations in temperature. The transducer is available in two versions, with either a 50 or 100 mm measurement range, for different size machines.

The AE119 transducer uses the eddy-current principle so it is non-wearing. The processing (signal conditioner) electronics are included in the supporting body so it requires a 24 VDC supply to produce an output signal that is proportional to the measured housing expansion. The AE119’s output is a 4 to 20 mA current loop signal, with the maximum current given when the measurement rod is fully extracted.

A range of EH140 shielded cables are available to connect the AE119 to the monitoring system, depending on the environment. The EH140 cables are available in lengths from 0.2 m, either with or without a flexible stainless steel hose (protection tube) for additional mechanical protection. In very harsh industrial environments, the AE119 should be installed using an EH140 with a flexible hose (protection tube).

Order number:

AE119 800-119-000-112-A1-B1
AE119 800-119-000-112-A1-B2
AE119 800-119-000-112-A2-B1
AE119 800-119-000-112-A2-B2
