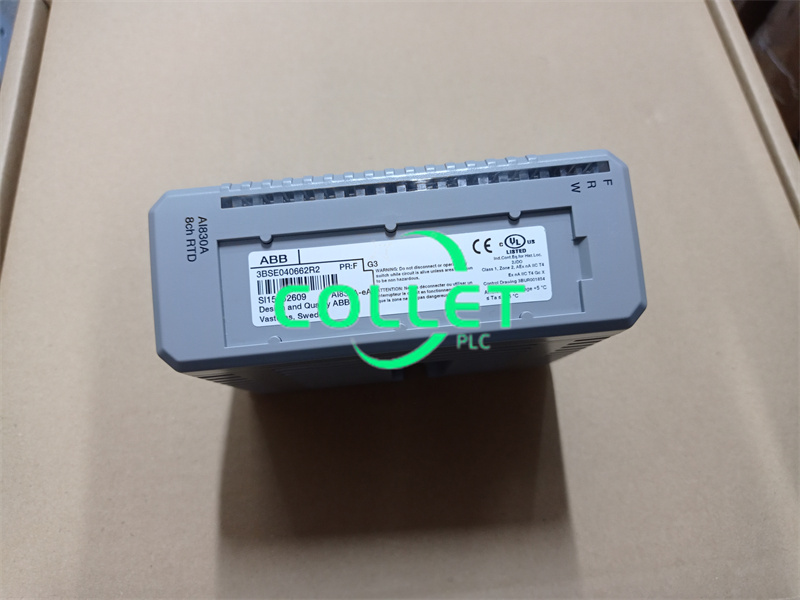

Manufacture |
ABB |
|
Model |
AI830A |
| PN No. |
3BSE040662R |
|
Catalog |
S800 I/O |
| Description | Analog input RTD 8 ch |
| Origin | Sweden |
| HS CODE |
853890 |
| Dimension |
10*12*4.5 (CM) |
| Weight | 0.3 kg |
Description:
The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.
The voltage input is able to withstand an over or undervoltage of at least 30 V d.c. Input resistance is 290k ohm. Transmitter supply can be connected to L1+, L1- and/or L2+, L2-.
sheet Link:
AI830A ABB 3BSE040662R, S800 I/O, Analog input RTD 8 ch PDF Datasheet
