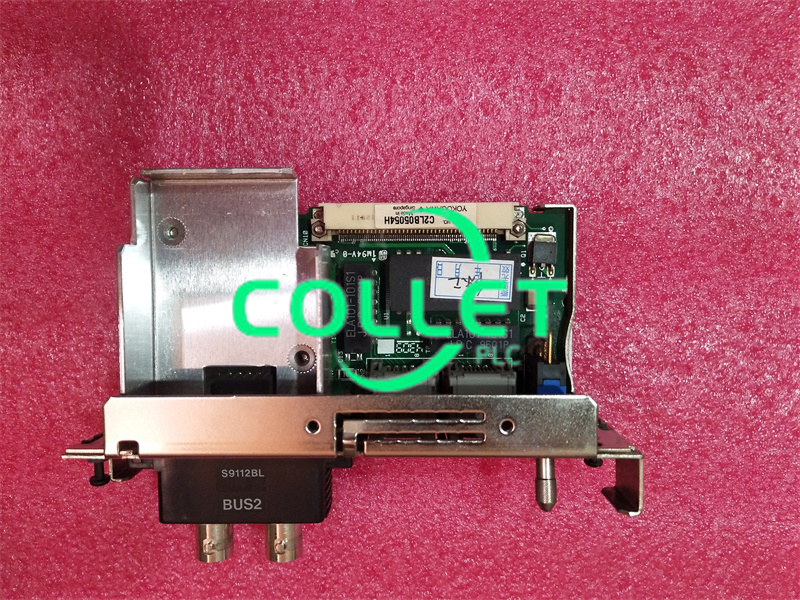

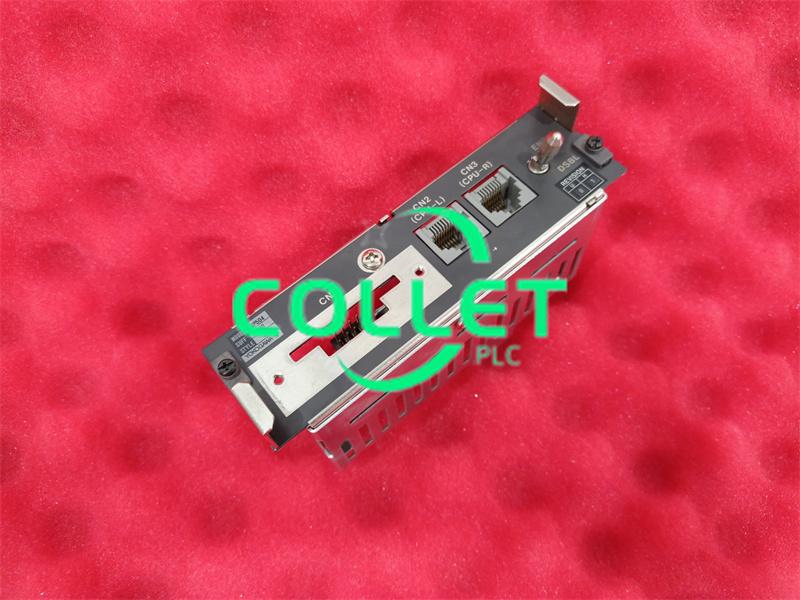

AIP504-10 Yokogawa V net coupler Unit New In Stock

The V net coupler unit (Model: AIP504) is installed in the safety control unit and located between the processor module and the V net cable so as to perform the signal isolation and signal level conversion.
  • Item NO.:

    AIP504-10
  • Payment:

    T/T
  • Market Price:

    $300
  • Product Origin:

    Japan
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    5
  • Product weight:

    0.7 kg

Manufacture
Yokogawa
Model
AIP504-10
PN No.  AIP504-10
Catalog
IM 32Q06C10-31E
Description
V net coupler Unit
Origin Singapore
HS CODE 85389091
Dimension 15*20*3.3 (CM)
Weight 0.7 kg

Description:


The V net coupler unit (Model: AIP504) is installed in the safety control unit and located between the processor module and the V net cable so as to perform the signal isolation and signal level conversion.

The components of the standard type safety control unit (Model: SSC10S-S/SSC10D-S) are shown in the following figure.

In this figure, the control unit is a duplexed type (redundant configuration). The power supply modules are always dual-redundantly configured. For a non-redundant configuration, a single processor module is installed to the left slot. The slot at the right is covered using a dummy cover. If a safety node is connected, the ESB bus coupler modules are installed with the redundant configuration.

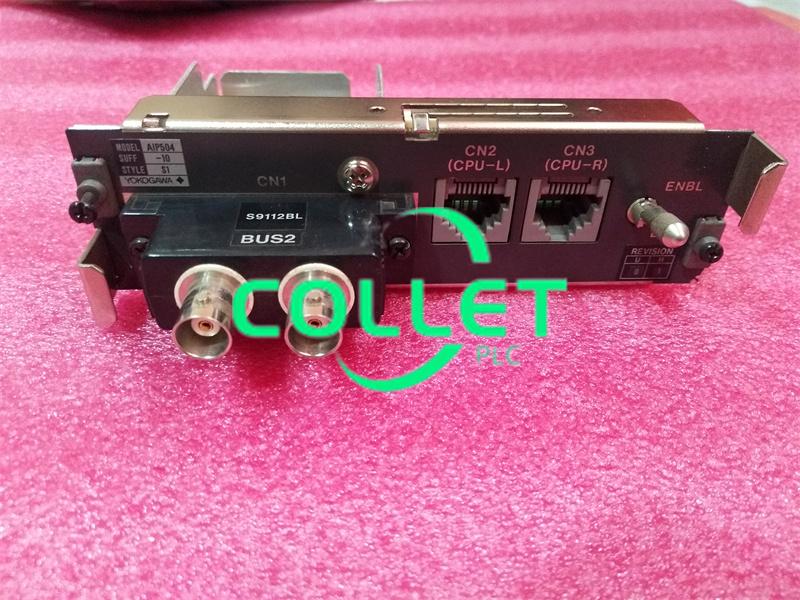

Configuration
        Two V net couplers are used because V net is a dual-redundant. The one installed in the left
is for Bus 1.

V net Branch Connector
        V net branch connector is used for the connection of V net cables (10BASE-2).
V net Coupler Cable Connector
        When connecting the V net coupler unit and processor module, the V net coupler cable is
used for connection. The connector is modular type with a polarization key.
Communication Switch
• ENBL (up):
        Connects bus to the processor module. Leave the switch in this position normally.
• DSBL (down):
        Disconnects bus from the processor module.
        This is a locking type switch.
        To toggle the switch position, pull the switch lever to unlock it first.
        The upper side is ENBL and the lower side is DSBL


Frequently Asked Questions:

1.How to install AIP504-10?
CP471 can be mounted only on the CENTUM field control units

2.What is operating condition of AIP504-10?
CP471 runs with CENTUM VP R6.05 or a later version of Control Function for Field Control Station.


Datasheet Link:

CP471-00 Yokogawa, Processor Module PDF Datasheet

AIP504-10
