CA134 144-134-000-612 Piezoelectric Accelerometer

CA134 144-134-000-612 High-performance sensors and monitoring systems in stock.

Item NO.:
CA134
Payment:
T/T
Market Price:
$31000
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
0.38 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	CA134
PN No.	144-134-000-612
Catalog	NIL
Description	Piezoelectric Accelerometer
Origin	Switzerland
HS CODE	85389091
Dimension	26.218.74 (CM)
Weight	0.38 kg

Description:

The CA134 144-134-000-612 is a high-temperature piezoelectric accelerometer from Parker Meggitt’s vibro-meter ® product line.

It utilizes a compression-mode measuring element, a high-temperature nickel alloy housing, and built-in housing insulation. By utilizing VC2 single-crystal material, it can acquire data in cryogenic environments as low as -253°C (20K) and high-temperature environments as high as 500°C.

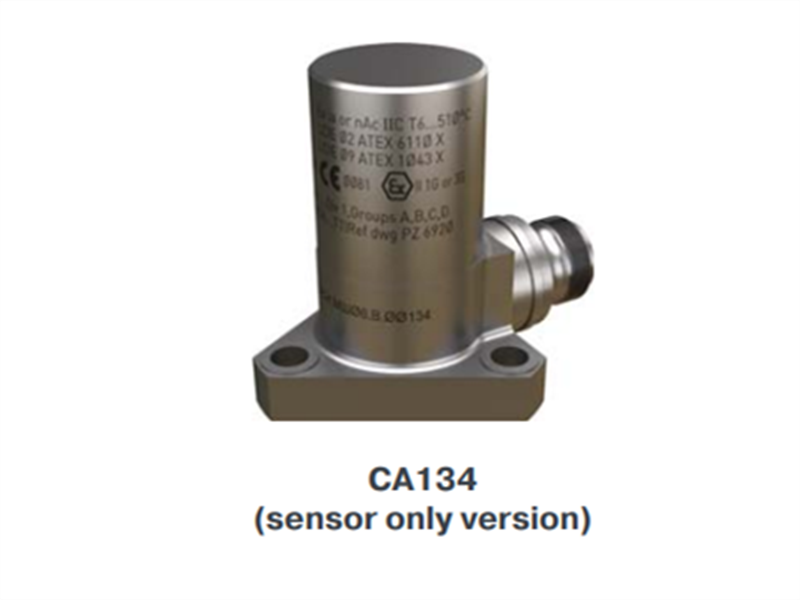

The CA134 sensor features a compression-mode measuring element with internal case insulation in a high-temperature nickel alloy case (housing).

The CA134 is available as a sensor only or fitted with an integral mineral-insulated (MI) cable that is protected by a double braid and terminated with a vibro-meter ® high-temperature connector.

kEY FEATURES

• From the vibro-meter ® product line

Sensitivity: 10 pC/g
Frequency response: 0.5 to 6 000 Hz
• Temperature range:
−54 to 500 °C
−253 °C (20 K) to 500 °C for cryogenic version
• Ex certified for use in hazardous areas
• Symmetrical sensor with internal case insulation and differential output
• Hermetically welded
high-temperature nickel alloy case
• Available as a sensor only or with an integral cable

Parameters

Model Number: CA134 144-134-000-612
Output Type: Charge (2-wire)
Sensitivity: 10 pC/g | 1.02 pC/m/s²
Operating Temperature: -65 to 932°F (-54 to 500°C)
Frequency Response: Up to 6000 Hz
Sensitivity Tolerance: ±5%
Dynamic Range: 0.001 to 500 g (0.00981 to 4905 m/s²)
Linearity: ±1%
Transverse Sensitivity: <5%
Resonant Frequency: >14 kHz
Base Strain Sensitivity: ≤5×10⁻³ g/με

BLOCK DIAGRAM

Ordering Number:

When ordering, you must specify the version and cable length:

Ordering Number: 144-134-000-XXX.
Standard Lengths: Available in 2 m, 3 m, 5 m, 6 m, or 10 m integral cable lengths

Hazardous Area Certifications

The CA 134 is certified for use in diverse hazardous locations:
Intrinsic Safety (Ex i): II 1 G Ex ia IIC T6...T1 Ga (ATEX/IECEx).
Non-Sparking (Ex nA): II 3 G Ex nA IIC T6...T1 Gc.
North America: Class I, Division 1 & 2, Groups A, B, C, D

Datasheet Link:

CA134 144-134-000-612 Piezoelectric Accelerometer PDF Datasheet
