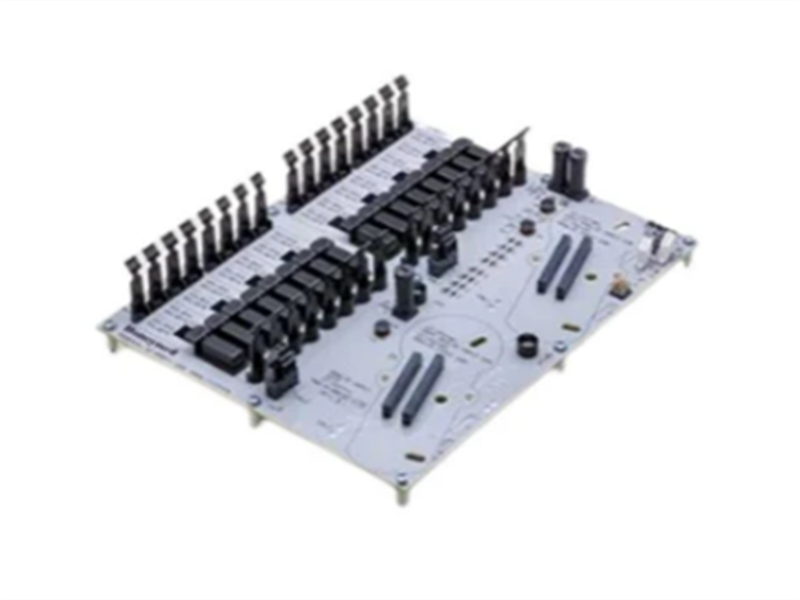

CC-GAIX11 Honeywell GI/IS IOTA Analog Input Module

Description:

The CC-GAIX11 by Honeywell is an analog input IOTA module built for Experion DCS systems, designed to accurately capture and transmit analog signals from field transmitters and sensing devices. It provides advanced diagnostics, supports HART communication, and offers optional redundancy for reliable industrial operation.

The model CC-GAIX11 Analog Input l0TA accommodates up to sixteen 4-20 mA input signals. This IOTAsupports redundancy and allows galvanically isolated inputs from the following isolators:

• MTL4541 - Single channel 4-to-20 mA isolator with HARTR
• MTL4544 - Dual channel 4-to-20 mA isolator with HART@
• MTL4575 - Thermocouple/RTD isolating converter with 4-to-20 mA output
• MTL4599 - Dummy, terminates unused connectors

Specifications:

Module Name. : CC-GAIX11

Input Voltage Range: 0–10 V, 1–5 V, -10–+10 V
Input Current Range: 4–20 mA, 0–20 mA
Accuracy: ±0.1% of reading
Resolution: 16-bit
Redundancy: Optional fault-tolerant configuration
HART Communication: Supports configuration and advanced diagnostics
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +85°C
Humidity: 0–95% non-condensing

Features:

-Supports 16 differential or single-ended input channels
-Compatible with intrinsically safe (IS) field circuits
-Enables noise-resistant signal acquisition via differential inputs
-Provides non-incendive power to field devices
-Supports both standard and redundant operations
-HART-enabled for advanced communication and monitoring
-Fast and reliable analog signal acquisition

-Compact, rugged design suitable for industrial environments

QA:

Q1:Can CC-GAIX11 handle both voltage and current signals?
A1: Yes, it supports 0–10V, 1–5V, -10–+10V, 4–20 mA, and 0–20 mA inputs.

Q2: How does it compare to CC-GAIX21?
A2: CC-GAIX21 adds more input channels and extended isolation options for hazardous areas.

Datasheet Link:

CC-GAIX11 Honeywell GI/IS IOTA Analog Input Module PDF Datasheet
