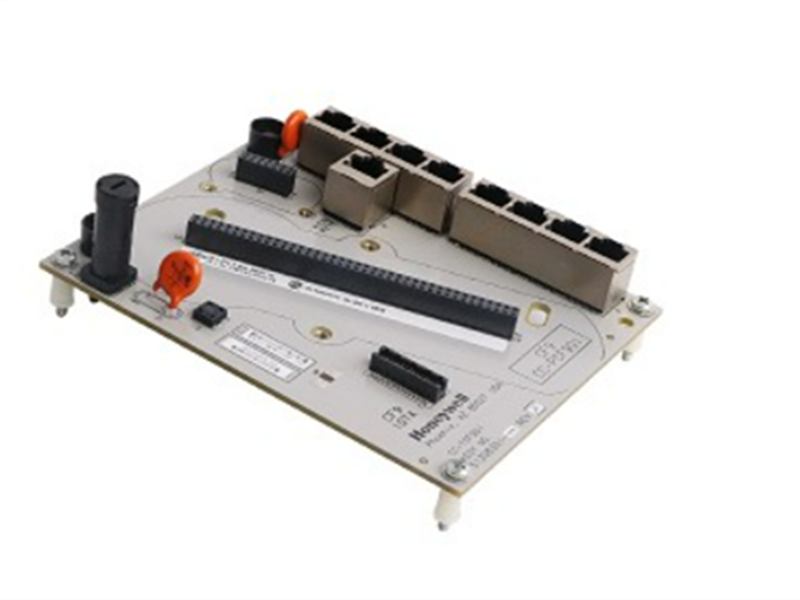

CC-TCF901 Honeywell 51308301-175 Control Firewall module

Description:

The Honeywell CC-TCF901 51308301-175 is a control firewall module for usewith the Honeywell Experion C300 controller.  The CC-TCF901 is the Input/Output Termination Assembly (IOTA) designed for Honeywell's Experion PKSSeries C control systems.It provides the physical connection between the Control Firewall Module (CF9) andFTE cables, ensuring secure and reliable communication within the control cabinet. The IOTA mounts on acarrier in the Series C cabinet and supports the installation of the CF9module.Protect the automation system from unauthorizedaccess.

Specifications:

Product No: CC-TCF901

Part Number: 51308301-175

Ports: 9 Rj-45 Ethernet ports (8 FTE + 1 uplink)
Power Supply: 24 VDC±10%
Power Distribution: Internal 24VDC routing to control modules
Mounting: DIN rail or panel
Operating Temperature: -20C to +70C

Features:

-Physical connection for CF9module and FTE cables.
-Mounts on a carrier in the Series C cabinet.
-Supports up to eight FTE connections and one uplink port.
-Provides 24Vdc power connection via vertical bus bar.
-Secure Network Segmentation: Isolates control traffic for enhanced cybersecurity.
-FTE Connectivity: Supports eight FTE cables for in-cabinet controllers and Series CFIMs.
-Supervisory Uplink: Ninth port links to FTE supervisory network.
-Integrated Power Distribution: Supplies 24VDC to connected control modules.
-Industrial Grade: Built for demanding automation environments with wide temperature tolerance.
-Flexible Mounting: DIN rail or panel installation options.

Datasheet Link:

CC-TCF901 Honeywell 51308301-175 Control Firewall module PDF Datasheet
