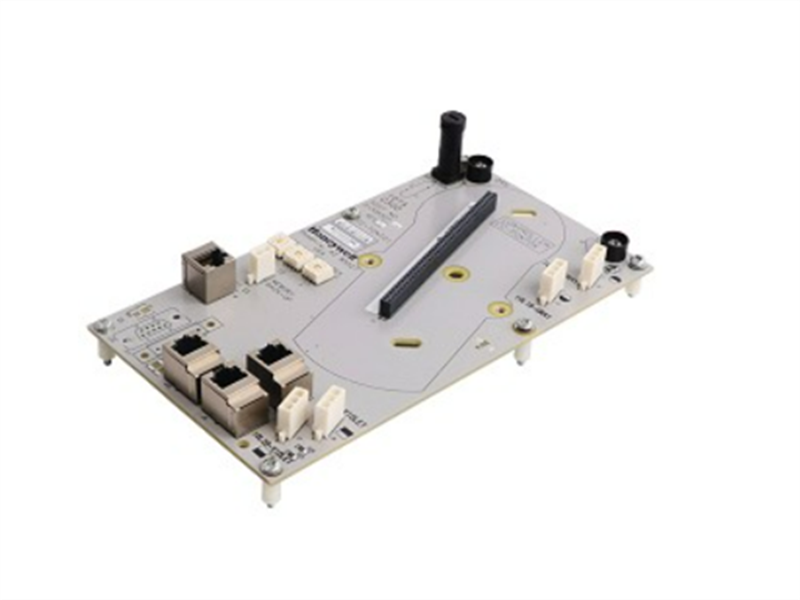

CC-TCNT01 HONEYWELL 51308307-175 C300 Controller Input Output Termination Assembly

Description:

The CC-TCNTo1 is a ControlNet network terminator designed to be used at the end of a ControlNetsegment. It ensures proper signal termination, preventing signal reflections that can cause data corruption andcommunication errors. It provides deterministicprocess control, real-time data processing, and seamless integration with Honeywells I/O modules and control networks.

It is mainly used in industrial automation control systems, providing connection points for all cable terminals of 300 controller modules and controllers, and supporting a variety of communication interfaces and protocols to achieve data exchange and communication with field equipment and other control systems.

The terminator is essential for maintaining the integrity and reliability of ControlNet communications in industrial automation systems.

Specifications:

Product No. : 51308307-175

Module name:CC-TCNT01

Termination Resistance: 750 + 5%
Input Voltage: 24 VDC (nominal)Power Consumption: < 1 W
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% non-condensing
Vibration Resistance: 5 Hz to 500 Hz, 0.5 g RMS
Shock Resistance: 10 g, 11 ms duration
EMC Compliance: EN 61000-6-2, EN 61000-6-4
Certifications: CE, UL, cUL, ATEX, IECEx
IP Rating: IP20 (coated version: IP67)

Features:

• Dedicated Connection Point

Provides a reliable interface exclusively for one C300 controller module—no sharing, no compromises.

• Versatile Cable Termination

Handles FTE, IO Link, redundant cables, battery cables, and time source cables with ease, ensuring every connection has its place.

• Conformal Coating Protection

Designed with an extra layer of conformal coating (indicated by “CC”), making it ideal for harsh industrial environments where corrosion or interference could be concerns.

• Power Supply

Integrated power supply for powering the terminator.

• LED Indicators

Equipped with LEDs to indicate power status and network activity.

• Rugged Construction

Built to withstand harsh industrial environments.
Coated Version Available: Coated version available for enhanced protection in challenging conditions.

• Deterministic Control

Executes control strategies with predictable timing

• Easy Configuration

Compatible with Control Builder and Experion engineering tools

• Industrial Reliability

Designed for continuous operation in critical process environments

Datasheet Link:

CC-TCNT01 HONEYWELL 51308307-175 C300 Controller Input Output Termination Assembly  PDF Datasheet
