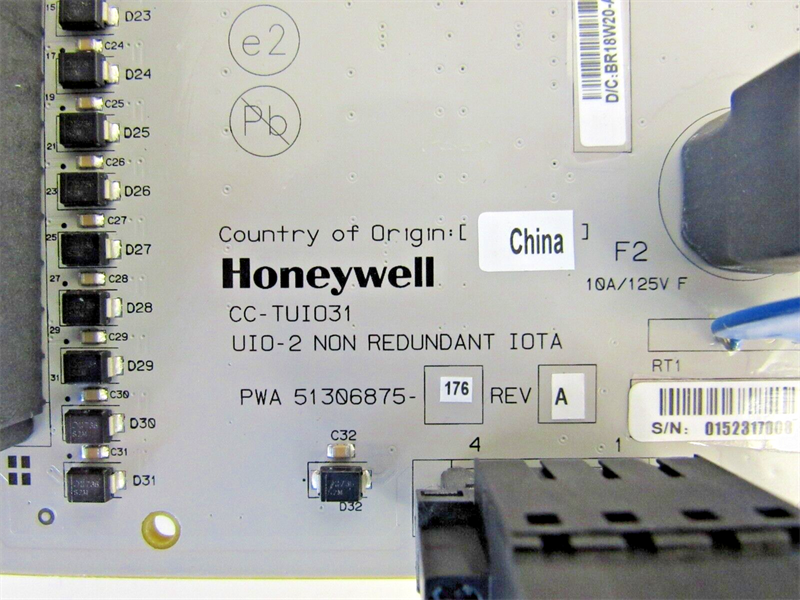

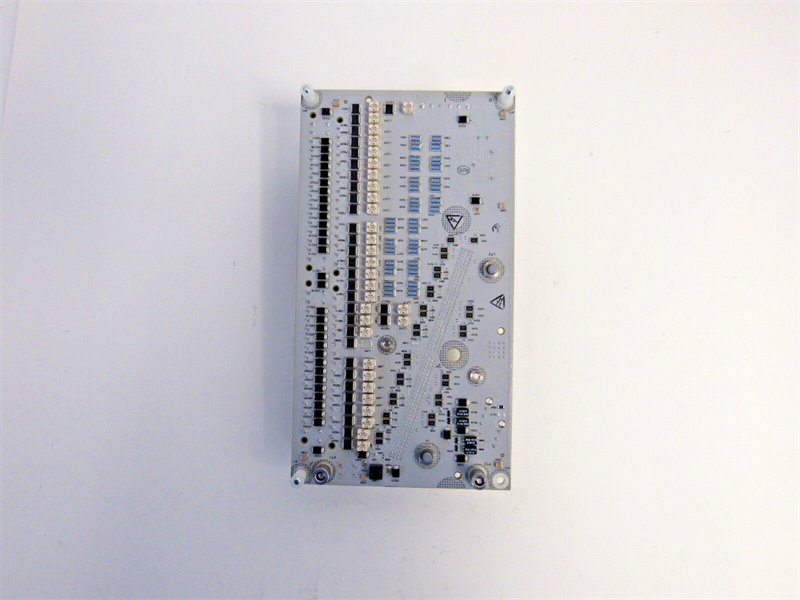

CC-TUIO31 Honeywell 51454220-176 Universal Input Output IOTA

CC-TUIO31 Honeywell 51454220-176 24Vdc Universal Input Output IOTA

Item NO.:
CC-TUIO31
Payment:
T/T
Market Price:
$2200
Product Origin:
U.S.A.
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
10
Product weight:
1.2 kg

Inquiry now

product introduction

Manufacture	Honeywell
Model	CC-TUIO31
PN No.	CC-TUIO31
Catalog	C300
Description	Universal Input Output IOTA
Origin	U.S.A.
HS CODE	8537101190
Dimension	13.711.52.5(CM)
Weight	1.2kg

Description:

The UIO IOM/IOTA is optimized for use with 2-wire, 3-wire or 4-wire transmitters. All 32 channels can accept inputs from most 2-wire, 3-wire or 4-wire transmitters without any special wiring.
The following are the items that UIO AI directly supports.
• 4-20mA / 0-20mA Current Inputs
• Devices that accept Honeywell 24V power to power a 0/4-20mA current source and (optionally) the device.
• Devices that return the current to the ground terminal of the Honeywell 24V power supply.
• External devices that can moderate non-compliant devices. For example: 'moderators' = current mirrors, isolators, GI/IS barriers, mv-to-I, and so on.

The following are the lists of items that are not directly supported by UIO AIs.
• Voltage inputs (1-5 or mv) e.g. a battery
• Thermocouples
• RTDs
• NAMUR devices
Standard 2-wire transmitter with UIO-2
This can be applied to any of the channels 1 through 32.

Specifications:

Number of I/O Points: 8 (supports analog, digital, and pulse I/O)
Analog Input: 4-20mA, 0-10V, 16-bit resolution
Analog Output: 4-20mA, 14-bit resolution, load ≤750Ω
Isolation: 500 VDC between channel and backplane
Analog Input Voltage Range: -10 to +10 VDC
Digital Input/Output Voltage Range: 24 VDC
Operating Temperature Range: -40°C to +85°C
Design: Redundant, coated for enhanced durability

Features:

Real-time Performance

A real-time database on the server provides instant data to numerous client applications (including operator stations and applications). This ensures real-time updates and feedback, providing strong support for system monitoring and control.

Open Connectivity

Utilizes open connectivity technologies such as ODBC drivers, Visual Basic programming, and OPC clients. Easily integrates with various information systems, enabling seamless data transmission and sharing.

Advanced System Architecture

Includes a sophisticated infrastructure including an advanced alarm/event management subsystem, built-in system display, programmable reporting, extended data acquisition, and standard system trends. Provides users with comprehensive system monitoring and control functions, ensuring stable system operation.

Modular Design

Supports DIN 35mm standard rail mounting, facilitating module installation and maintenance.Transmission rate and station number can be set via rotary DIP switches, providing flexible configuration options.

Per-Channel Configurability

Each channel can be assigned AI, AO, DI, or DO via software, providing great flexibility for mixed-signal applications.

Compact Design

Eight channels in a single slot reduce panel space and simplify rack layout. Integrated diagnostics: Continuously monitors for open circuits, short circuits, and over-range conditions through rapid fault detection.
