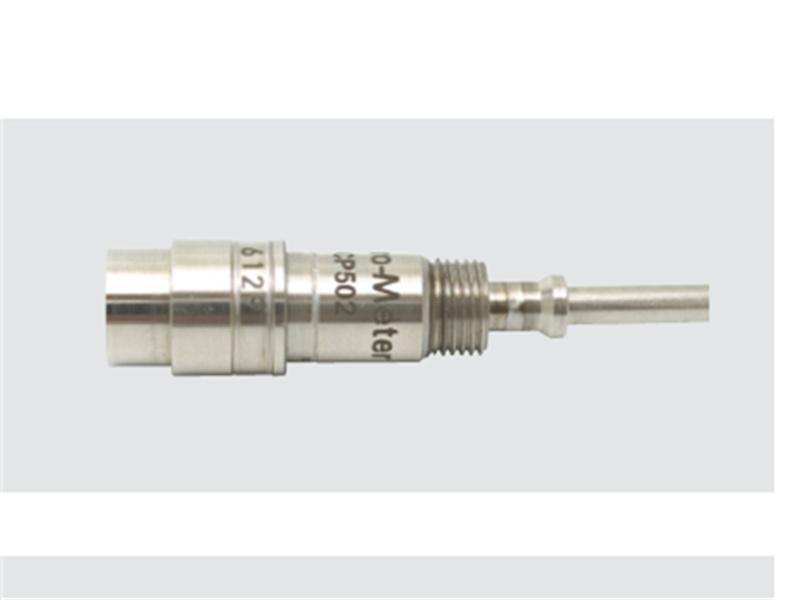

CP502 Vibration 143-502-000-011 Piezoelectric Pressure Transducer

Item NO.:
CP502
Payment:
T/T
Market Price:
$35000
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Order(MOQ):
3
Product weight:
0.38 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	CP502
PN No.	143-502-000-011
Catalog	DYNAMIC PRESSURE SENSORS
Description	Piezoelectric Pressure Transducer
Origin	Switzerland
HS CODE	85389091
Dimension	26.224.25 (CM)
Weight	0.38 kg

Description:

A set of CP502 Including:

CP502 143-502-000-061

MA104 809-104-000-011

143-215-902-011

The use of piezoelectric single-crystal in the CP 502 dynamic pressure transducer makes it an extremely stable and reliable device.

The transducer is applicable to either long-term monitoring of pressure pulsation in gas turbines or development testing.

The industrial-grown single-crystal GaPO4 guarantees excellent signal quality and constant sensitivity.

It is fitted with an integral mineral insulated cable (twin conductors) which is terminated with a LEMO connector.

FEATURES

Designed for use in gas turbines
Temperature range : -70 ºC to 560 ºC (-94 °F to 1 050 °F)
Outstanding thermal behaviour (no pyroelectricity)
Sensitivity virtually constant over product lifetime
Very low response threshold
Internal case insulation

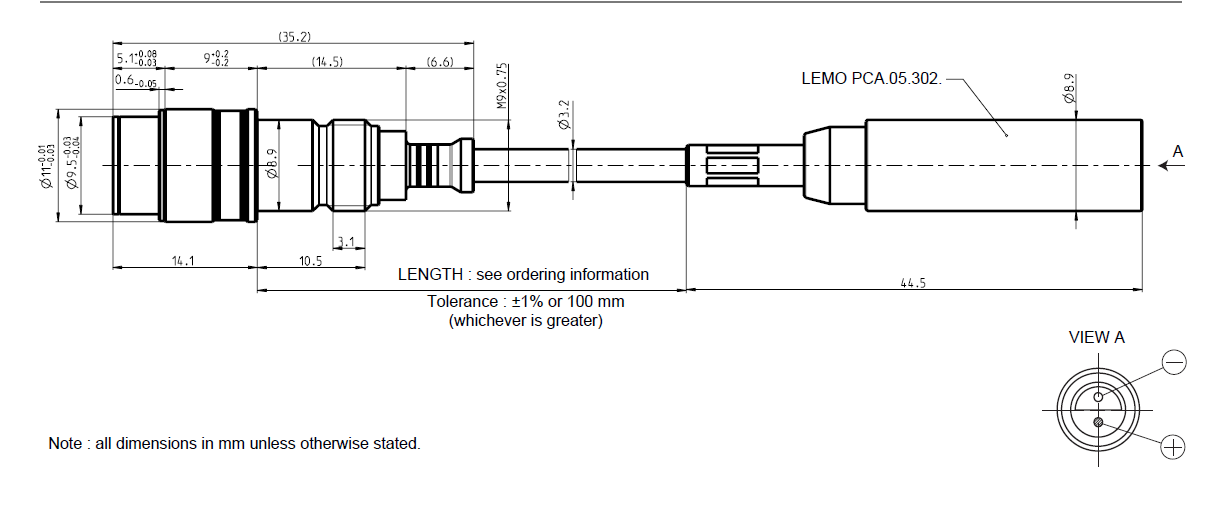

BLOCK DIAGRAM

143-502-000 D011

Ordering Number:

Type	Designation	Ordering Number	Cable length
CP 502	Piezoelectric Pressure Transducer	143-502-00-011	2.5 m
		143-502-00-061

Frequently Asked Questions:
1.What's Frequency response of CP502 143-502-000-011?
85 pC/bar (50 bar)
Overload up to 100 bar
-70 to 560oC
2 to 15’000 Hz

2.What‘s CALIBRATION of CP502 143-502-000-011?
ISO 9001 certified calibration at +20ºC with dead weight tester (3, 6, 8, 10, 12, 30, 50 bar). Sensitivity and linearity are determined according to DIN 16086.
