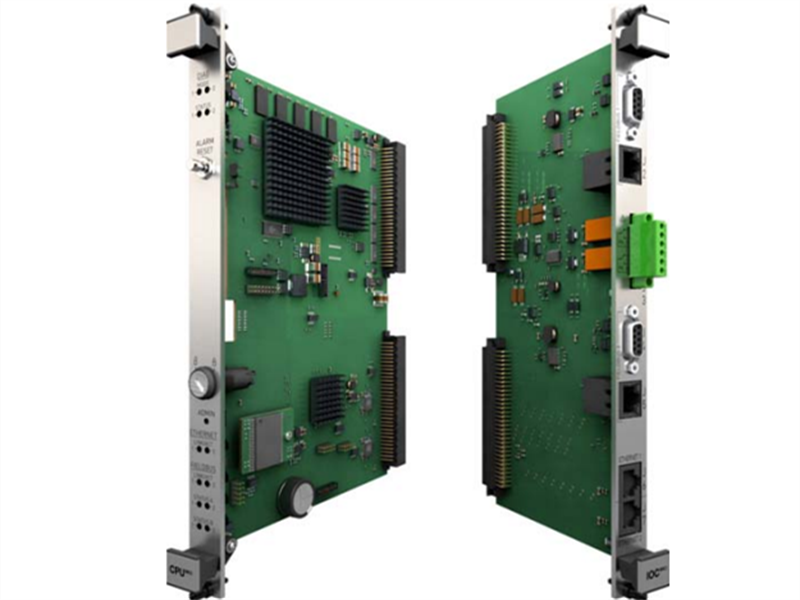

CPUM MK2 Vibration 600-050 Rack Controller

Description:

The VM600Mk2 CPUMMk2 + IOCNMk2 rack controller and communications interface module is designed for operation with the second generation of VM600Mk2 rack-based machinery protection system, from Parker Meggitt’s vibro-meter ® product line. The CPUMMk2 + IOCNMk2 module consists of central processing unit (CPU) and input/output (interface) modules that together act as a system controller and data communications gateway for VM600Mk2 systems.

In critical applications where the cost of failure is high, module redundancy with two CPUMMk2 + IOCNMk2 modules per VM600Mk2 system rack (ABE04x) can be used to obtain true rack-level communications redundancy. This is a cost-effective solution where increased communications reliability and availability are required, for example, to help ensure uninterrupted operation in critical environments.

Alternatively, module redundancy can be used to implement complex communication configurations that require more than the two fieldbuses available per CPUMMk2 + IOCNMk2 module.

KEY FEATURES AND BENEFITS

• VibroSight ® compatible hardware from the vibro-meter ® product line
• VM600Mk2 (second generation) rack controller and communications interface module
• VM600Mk2 module data aggregation, processing and sharing
• Industry standard fieldbus communications interfaces: Modbus TCP and PROFIBUS DP
• Mathematical processing of data to be shared via fieldbus
• System/module status (health) information available via fieldbus
• Front-panel alarm reset (AR) button
• VM600Mk2 rack (CPUMMk2) security with a removable key
• Two system Ethernet connections and two fieldbus connections can run simultaneously
• Module-level communications redundancy with two fieldbuses per module: Ethernet and/or serial
• Rack-level communications redundancy with two modules per rack (module redundancy)
• Two output relays to signal system statuses and alarms
• CPUMMk2 + IOCNMk2 module diagnostic logs available via the VibroSight ® software
• Live insertion and removal of modules (hot-swappable)
• Gigabit (1 Gbps) system Ethernet communication
• Front-panel status indicators (LEDs)
• Compatible with later VM600 system racks (ABE04x) with I2C interface (VME utility bus)
APPLICATIONS

• Rack controller and communications interface for VM600Mk2 systems
• Communications gateway between VM600Mk2 and third-party systems, such as DCS or PLC
• Enables sharing of data from VM600Mk2 monitoring modules in machinery protection, condition monitoring and/or combustion monitoring applications
• Module redundancy with two CPUMMk2 + IOCNMk2 modules per rack helps ensure VM600Mk2 system communications for applications where the cost of failure is high
• Alternatively, module redundancy (two CPUMMk2 + IOCNMk2 modules per rack) can be used to implement more complex communication configurations
