Manufacture |
ABB |
|
Model |
DI830 |
| PN No. |
3BSE013210R1 |
|
Catalog |
S800 I/O |
| Description | Digital Input |
| Origin | Sweden |
| HS CODE |
853890 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.5 kg |

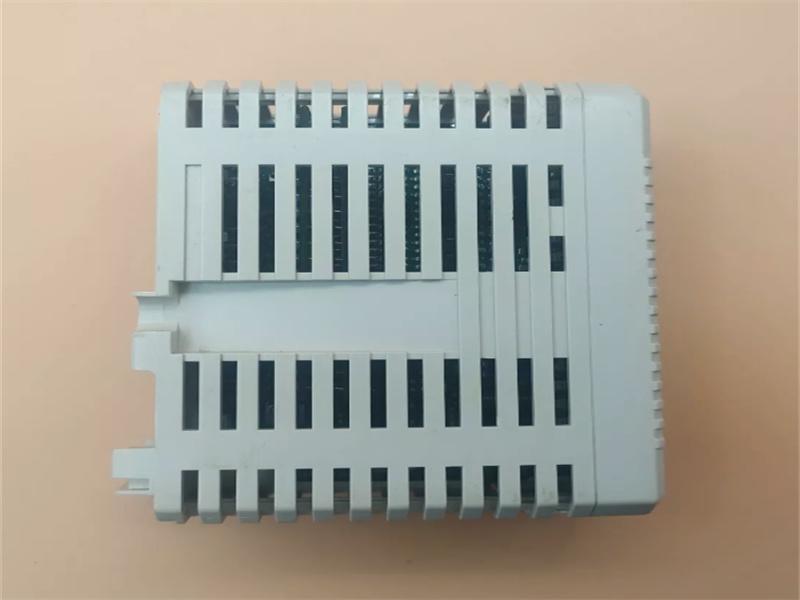

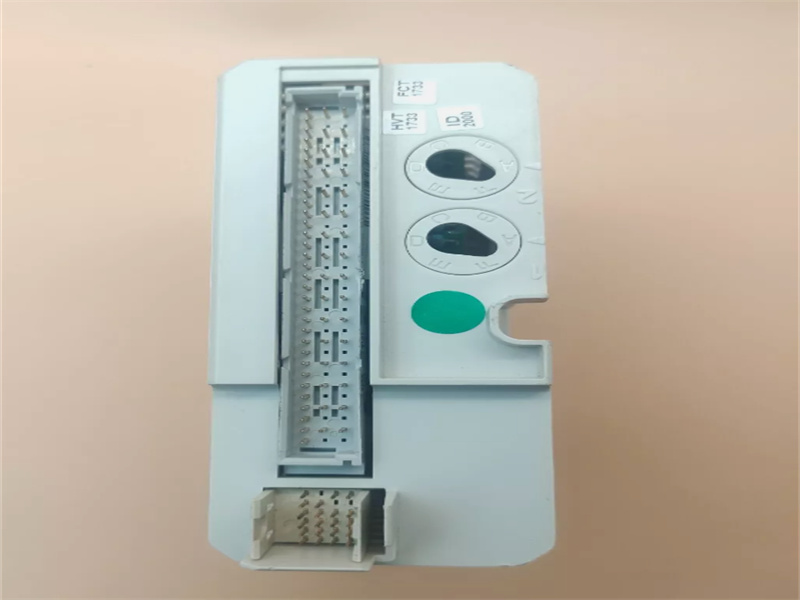

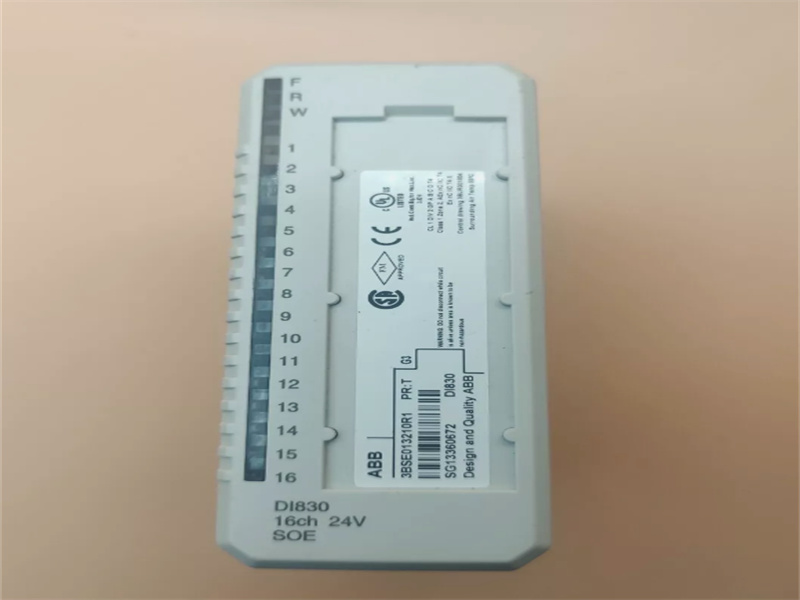

Description:
The DI830 is a 16 channel 24 V d.c. digital input module for the S800 I/O. The input voltage range is 18 to 30 V d.c. and the input current is 6 mA at 24 V d.c. Each input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The module cyclically performs self-diagnostics. Module diagnostics include:
-Process power supply supervision (results in a module warning, if detected).
-Event queue full.
-Time synchronization missing.
The input signals can be digitally filtered. The filter time can be set in the range 0 to 100 ms. This means that pulses shorter than the filter time are filtered out and pulses longer than specified filter time get through the filter.
sheet Link:
DI830 ABB 3BSE013210R1, S800 I/O, Digital Input PDF Datasheet
