Manufacture |
ABB |
|
Model |
DIS0016 |
| PN No. |
2CA025342A0001H |
|
Catalog |
Panel |
|
Description |
Protection & Control Relay Only Display Panel |
| Origin | Sweden/Malta/India |
| HS CODE |
85389081 |
| Dimension |
43.1*12.5*5(CM) |
| Weight | 0.46 kg |
Description:

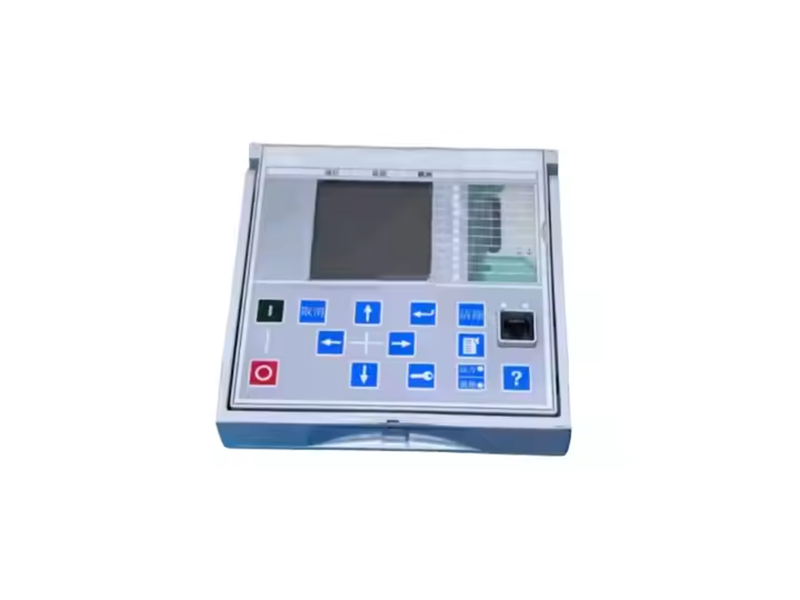

The DIS0016, model number 2CA025342A0001H, is a dedicated display panel module (typically the front panel) for ABB's REF615 series protection and control relays. The REF615 is a digital relay widely used in medium and low voltage power distribution systems, integrating protection, measurement, control, and communication functions. The display panel is a core component of its human-machine interface (HMI).
Main Functions:
- Status Display
Real-time display of grid parameters (current, voltage, power, frequency, etc.).
Displays relay operating status (operating/alarm/tripped) and event logs.
- Operation and Configuration
Navigate the local menu using buttons to adjust protection settings, control logic, and other parameters.
Supports fault recording and event log query for easy fault diagnosis.
- Alarm Indication
Features:LED indicators or screen display indicate protection action information such as overcurrent and ground fault.
Provides self-test status (for hardware/software anomalies).
-Compatibility: Designed specifically for the REF615, ensuring seamless communication with the relay host.
-Interface Type: May include an LCD screen with buttons or a graphical user interface .
-Protection Rating: Typically meets IEC standards (e.g., IP40), suitable for industrial environments.
