DS200CPCAG1A GE DS200CPCAG1ABB EX2000, Contactor Pilot Card

Item NO.:
DS200CPCAG1A
Payment:
T/T
Market Price:
$1250
Product Origin:
U.S.A.
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
0.2 kg

Inquiry now

product introduction

Manufacture	GE
Model	DS200CPCAG1A
PN No.	DS200CPCAG1ABB
Catalog	EX2000
Description	Contactor Pilot Card
Origin	U.S.A.
HS CODE	85389091
Dimension	1283 (CM)
Weight	0.2 kg

Description:

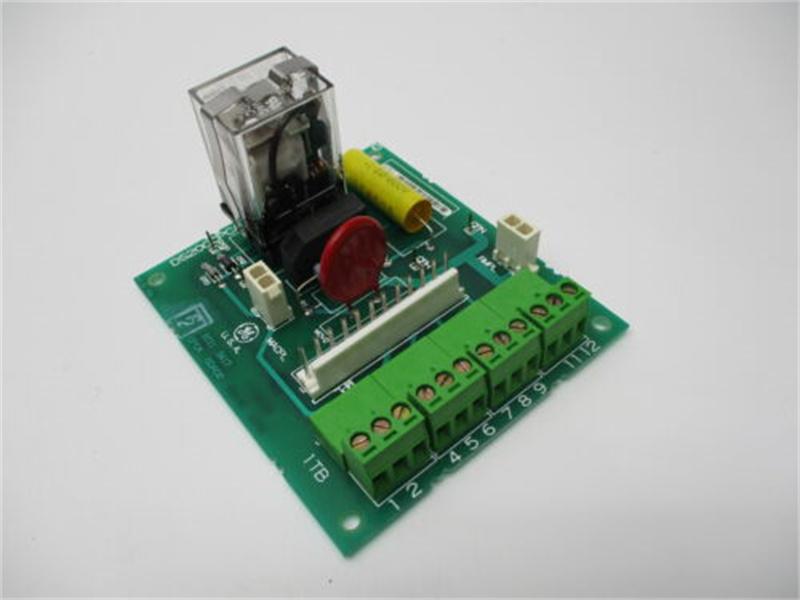

DS200CPCAG1A is a Contactor Pilot Board manufactured and designed by General Electric as part of the EX2000 Series used in the GE Excitation Control System. To control the opening and shutting of a contactor, the CDBA board supplies the electricity. 115 v is the coil voltage for the contactors used with the CPCA. The CPCA transforms incoming 115 V ac into 105 V dc to drive the contactor coil. When a contractor needs to be closed and kept closed, the CPCA card, as opposed to the CDBA board, provides the entire voltage.

This DS200CPCAG1A Contactor Pilot Card's already-elevated hardware components and component specifications are bolstered further by its inclusion of a sole functional product revision, as mentioned above. The GE Contact Pilot Board DS200CPCAG1A features:

one 12-pin connector
two 2-pin connectors
four terminal blocks to connect a maximum of twelve signal wires
24VDC socket power relay

Because the board has terminal blocks the servicer will have to remove the wires attached to them and that will require special consideration, as detailed in original Mark V Turbine Control System Series instructional manual documentation. The DS200CPCAG1A PCB terminal blocks enable signal cables to attach to the board for processing; some of the wires extending from these terminal blocks transmit signals from the board, while other wires receive signals that are processed by the DS200CPCAG1A board.

Unfortunately, this DS200CPCAG1A Contactor Pilot Card is not the most customizable model of General Electric printed circuit board, as it does not possess a singular manually-moveable hardware jumper in its assembly. As defined in original General Electric manual materials once more, the DS200CPCAG1A Contactor Pilot Card behave very similar in function to the CDBA board, another new or reconditioned product offering available for repair or replacement today at AX Control. Both the DS200CPCAG1A Contactor Pilot Card and the similar CDBA board provide power to encourage the opening and closing of a contactor within the Mark V Series.

General Electric offers a series of carefully-developed instructions for establishing terminal connections to the DS200CPCAG1A printed circuit board. Carefully insert the screwdriver and without touching other components loosen one of the terminals and pull out the wire. Do the same for all the terminals that hold wires. Hold the cables by the connector and pull them out of the connector on the board. Use your free hand to steady the board. This is important as a socket power relay is located on the DS200CPCAG1A board and might be damaged when you are tightening the terminals, connecting cables, and securing the board; the relay has moving parts that any jarring might damage.

All of the hardware elements and element specifications detailed for this DS200CPCAG1A Contactor Pilot Card above should receive at least some form of protection and insulation from the normal style of General Electric printed circuit board coating that has been applied to individual hardware elements in its assembly on a functional priority basis. This DS200CPCAG1A PCB's originally-introduced performance specifications and dimensions have no doubt been impacted through its addition of an A-rated functional product revision.
