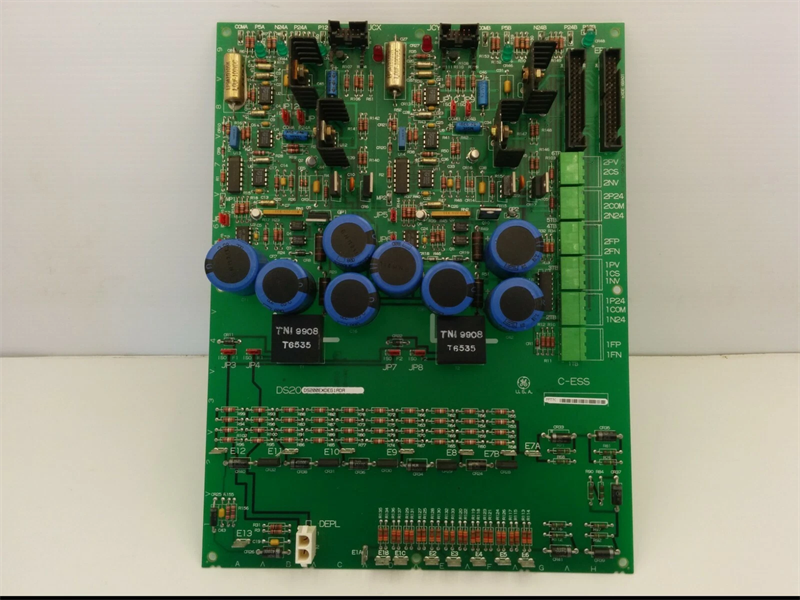

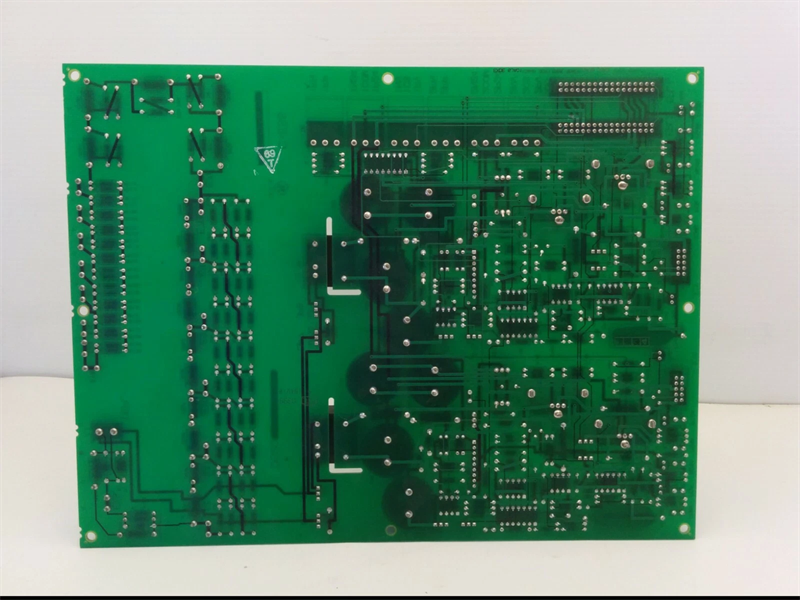

DS200EXDEG1AEA GE EX2100 De-Excitation Control Card

Description:

DS200EXDEGIABA is an De Excitation Control Board developed by E. It is a part of EX2000 excitation system The prinary function of the De Excitation Module s to dispate enerey from the generator feld during normal oremergency shudowns. When such shudown events occu, the module plays a criticalrole n controling and imitngthe voltage across the generator feld This is achieved by effectively managing the field breaker or contactors, ensuring that enery isiation is rgulated and controlledwithin safe parameters Comprising several key element, including the EXDE board itsel, a Conduction Sensor board, a steel core designed to concentate fux for theconduction sensors and dditional components suchas a 53mm or7 mm SCR, the module is further supported by e shet meta base for secure mounting of these devices

Features
Conduction Sensor Board: Works in conjunction with the EXDE board to detect and monitor the flowof current within the system, providing vital fedback for precise control and regulation.

Steel Core:strategicaly designed to concentrate magnetic flux for the conduction sensors,enhancing their sensitivity and acuracy in detecting curent flow and facilitating efficient energy dissipation

SCR Avalable in diferent sitzes (53 mmor 77 mm), the ScR plays a crucial role in controlling the flow of curent within the system, allwing for preciseregulation and management of energy dissipation.

Sheet Metal Base: Provides a sturdy and secure mounting platform for the various components of the De Excitation Module, ensuring stablity and reliability in operationeven under demanding conditions.

Frequently Asked Questions:

1.Does the customer arrange for the inspection before the goods are shipped?

Confirmed acceppted this issue

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods

Datasheet Link:

DS200EXDEG1AEA GE EX2100 De-Excitation Control Card PDF Datasheet
