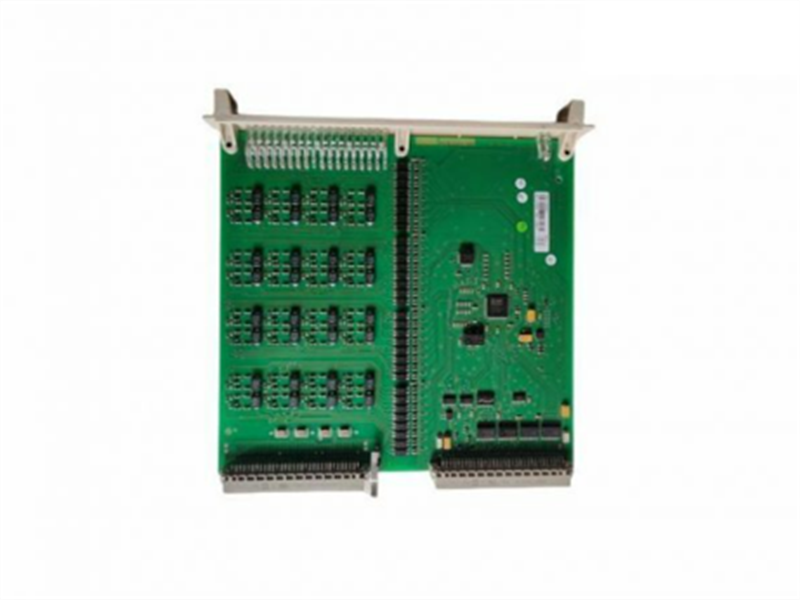

DSDI 110AV1 ABB 3BSE018295R1 Digital Input Board

Description:

The S100 I/O system is available for the Advant Controller 400 Series. The S100 direct I/O system consists of I/O modules with 4 to 32 channels.S100 I/O consists of one or more I/O racks with several I/O boards, connection units and cables covering a wide variety of applications and specific needs. The I/O boards are divided into groups, depending on their function. Within each group, there are several I/O boards with differing functionality and complexity.

The Advant Controller 410 includes an integral S100 I/O rack, while the Advant Controller 450 interfaces up to five S100 I/O sub-racks through a single or redundant interface module and cables. Optical modems enable remote location of S100 I/O sub-racks.

Variants are also available for integration of Intrinsic Safety Modules as well as HART Multiplexers.

The ABB 3BSE018295R1 DSDI 110AV1 digital input module is designed for industrial automation control systems, providing stable and reliable digital signal acquisition capabilities. This module employs a modular design concept, accurately capturing switching signals and converting the on/off status of field devices into digital inputs recognizable by the control system. Its core advantages lie in its high anti-interference capability and fast response characteristics, making it particularly suitable for continuous production scenarios requiring real-time data acquisition. Whether in high-temperature and high-humidity metallurgical workshops or power facilities subject to electromagnetic interference, this module maintains stable operation, ensuring the integrity and accuracy of production data.

Specifications:
Product Name: DSDI 110AV1

Input Channels: 16-channel isolated input
Operating Voltage: DC 24V ±20%
Response Time: 1.5ms (typical)
Insulation Class: Reinforced insulation, conforms to IEC 61010 standard
Operating Temperature: -25℃～+60℃

FEATURES:

-An extensive range of binary and analog modules, easy to configure
-Redundant I/O Digital and Analog.
-Hot replacement of all I/O modules.
-High EMC level, meeting the requirements of the EC directives 89/336/EEC and 73/23/EEC.
-Comprehensive self-diagnostics.
-On-board processing capabilities such as time tagging, event handling, filtering and gain control.
-Supports transparent I/O- power– and bus extension redundancy.

-Modularity, allowing step-by-step expansion.
-Reliability and auto-diagnostics. LED indicators on each module and channel.
-All outputs can be individually set to freeze or to take on predefined values at fault conditions.
