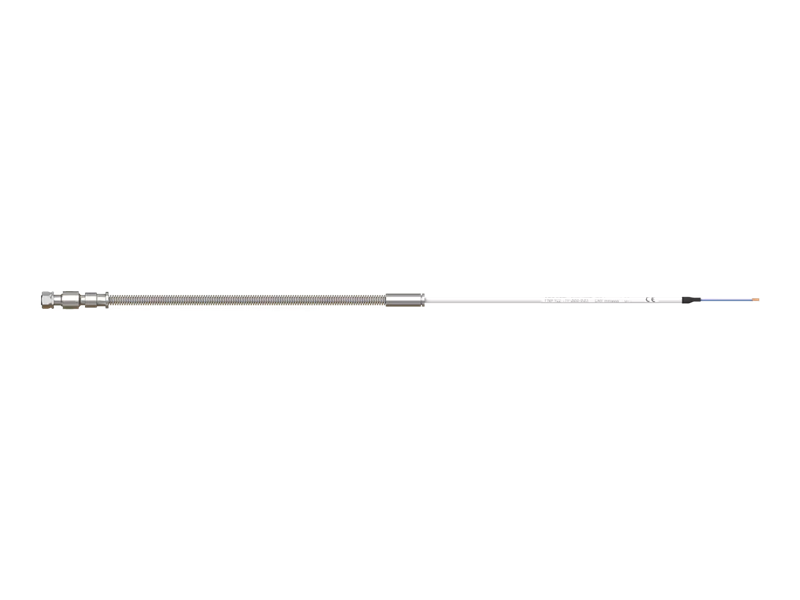

EC119 Vibration 922-119-000-003 cable assembly

EC119 Vibration 922-119-000-003 cable assembly lenth from 200 to 20000,

Item NO.:
EA402
Payment:
T/T
Market Price:
$1420
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
50
Product weight:
0.65 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	EC119
PN No.	922-119-000-003
Catalog	NIL
Description	Extension Cable
Origin	Switzerland
HS CODE	85389091
Dimension	12118 (CM)
Weight	0.65 kg

Description:

High-quality, high-reliability cable assembly for use with CA280 vibration sensors (accelerometers using external signal conditioners), CP21x dynamic pressure sensors and EW140 ice-detection sensors.

For use in harsh environments characterised by high temperatures and/or hazardous areas (potentially explosive atmospheres).

Note: While the EC119 cable assembly and the EC222 cable assembly are similar, the EC119 has more protection (flexible leak-tight hose) and two shields (inner shield and outer shield).

Features

High-quality, reliable cable assembly for CA280 vibration systems, CP21x dynamic pressure systems and EW140 ice-detection systems
K205A low-noise cable with PTFE outer sheath (Ø 4.2 mm)

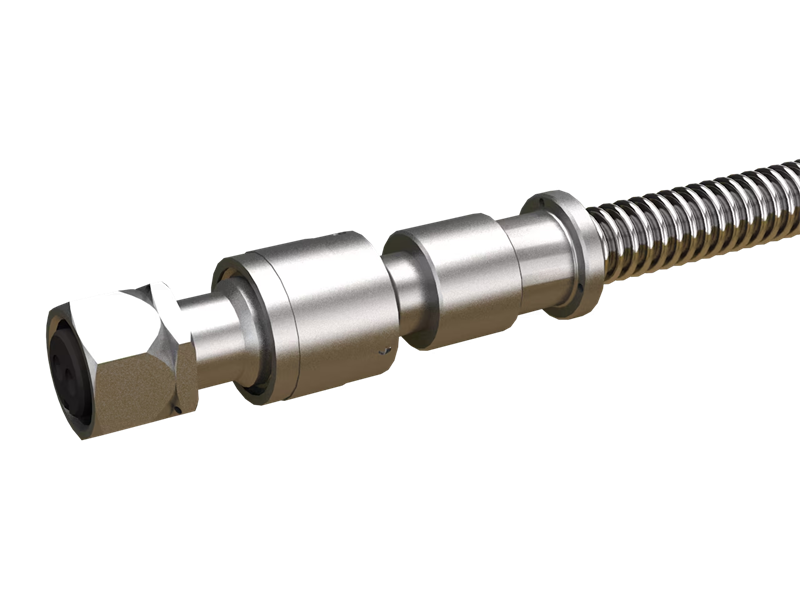

Flexible leaktight protection hose (Ø8.7 mm) with junction box adaptor (Ø11 mm)
Threaded connector (CG505 type) to flying leads
2-wire, with inner shield and outer shield

Ordering Number:

EC119 922-119-000-003-P1000-U1000
EC119 922-119-000-003-P2000-U2000
EC119 922-119-000-003-P3000-U3000

EC119 922-119-000-003-P5000-U5000

EC119 922-119-000-003-P6100-U200

EC222 922-222-000-002/10000

EC222 922-222-000-002/18000

EC222 922-222-000-002/30000

CA280 144-280-000-011
CA280 144-280-000-015
CA280 144-280-000-016
CA280 144-280-000-111
CA280 144-280-000-115
CA280 144-280-000-116
CA280 144-280-000-121
CA280 144-280-000-125
CA280 144-280-000-126
CA280 144-280-000-215
CA280 144-280-000-216
CA280 144-280-000-225
CA280 144-280-000-226
CA280 144-280-000-235
CA280 144-280-000-236

Frequently Asked Questions:
1.Does the customer arrange for the inspection before the goods are shipped?
Confirmed acceppted this issue

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

EC119 Vibration 922-119-000-003 cable assembly Cable Datasheet
