Manufacture |
EMERSON |
|
Model |
A6500-CC |
| PN No. |
A6500-CC |
|
Catalog |
AMS6500 |
|
Description |
16-Channel Output Relay Card Module |
| Origin | Germany |
| HS CODE |
85389091 |
| Dimension |
16*12*2 (CM) |
| Weight | 0.17 kg |

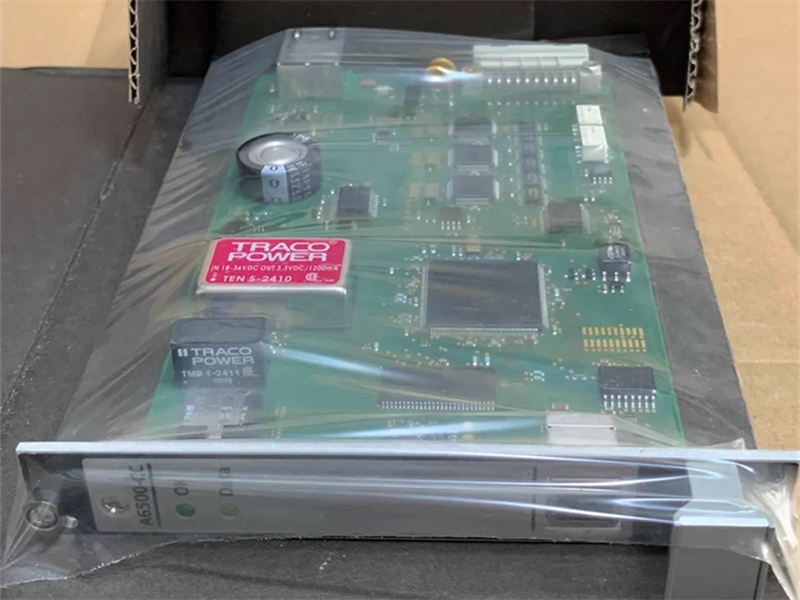

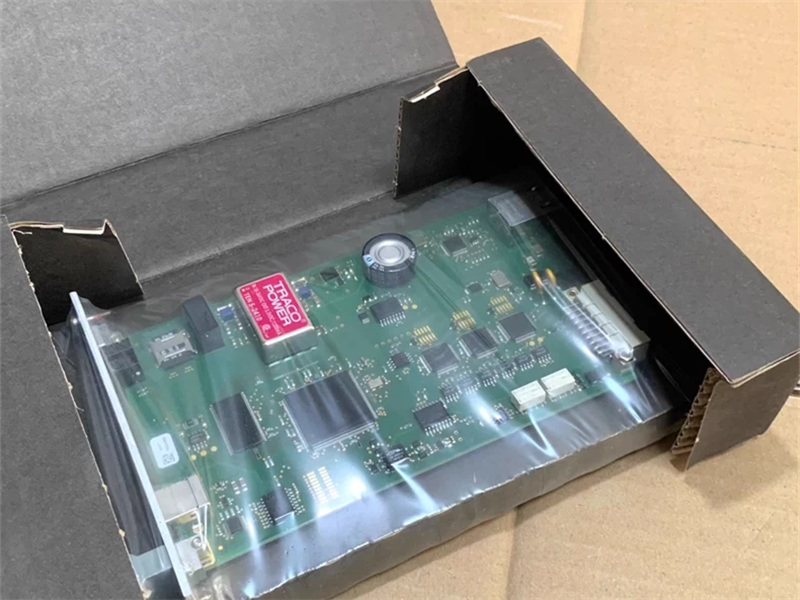

Description:
The A6500-CC Com Card is a component of the AMS 6500 ATG system and mandatory for communication with all cards of the system as the A6500-UM Universal Measuring Card, the A6500-TP Temperature Process Card, and the A6500-RC Relay Card. The Com Card is required for the configuration of the protection cards. It servers also the cyclical polling of card data. The captured data are output by Modbus over TCP, Modbus RTU, and/or through the OPC UA communication. You can build up a redundant data communication with a second A6500-CC Com Card.
The card is designed for use in the communication slots (CD13 and CD14) of the A6500-xR System Racks. A second System Rack can be connected to the COM Card. See operating manual A6500-xR System Racks for further information.

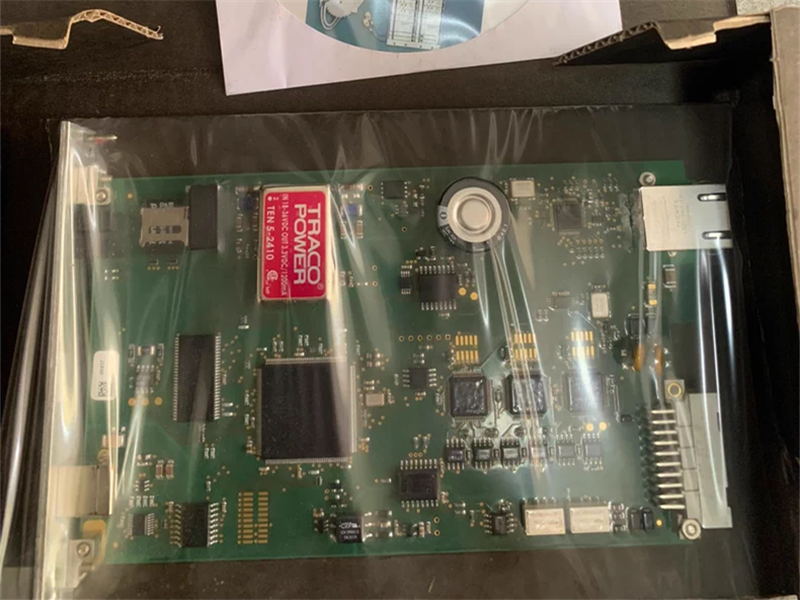

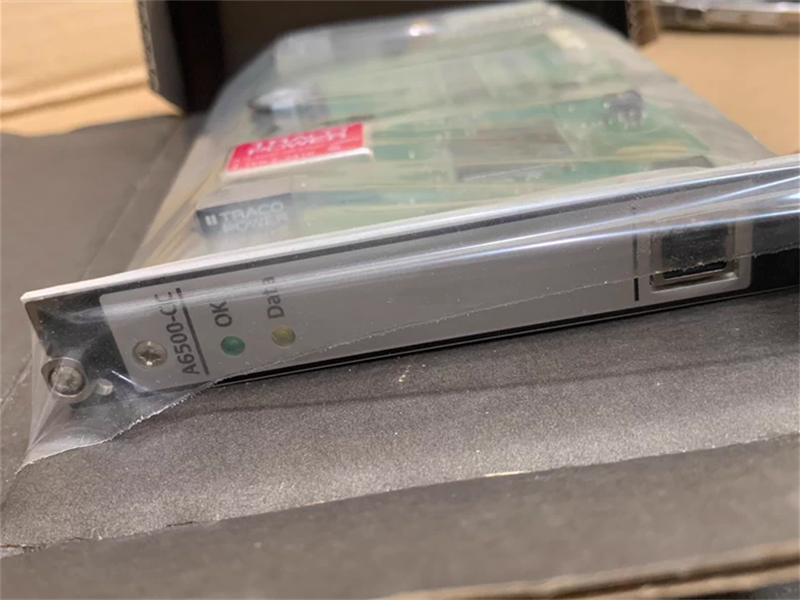

The Com Card is designed as standard Euro board (100 mm X 160 mm) and has an anodized front plate of 4TE (approximately 20 mm) width. The card is designed for use in A6500-xR System Racks. The electric connection is made by a 30-pole connector (DIN41612 / IEC60603−2 Design c/3).
The USB interface, the Ethernet interface, and the Modbus RTU interface are galvanically isolated.
The A6500-CC Com Card has an Ethernet interface for connecting the card to an Ethernet network. This Ethernet interface and the USB interface are for the communication with the AMS Machine Studio configuration software. The Ethernet interface also serves the Modbus over TCP/IP and OPC UA communication.
The following communication tasks are available with the USB and Ethernet interface:
• Reading measuring data from the protection cards by AMS Machine Studio.
• Reading status data from the protection cards by AMS Machine Studio.
• Configuration of the protection cards by AMS Machine Studio.
• Sending commands by AMS Machine Studio.
Note
The USB interface does not provide Modbus or OPC UA data.Time data cannot be read through the USB interface. That means time waveforms and frequency spectrums of the A6500-UM cards cannot be displayed if the card is connected through the USB interface.
Ethernet
The Ethernet interface is a 10/100 MBit interface with a RJ 45 socket. Use CAT5 Patch cables or Cross over cables for connection. The maximal cable length is 100 m.
USB
The USB 2.0 interface has a type B socket. The maximal cable length is 5 m. It is not necessary to install a driver for the USB interface. The required driver is already part of the operating system Microsoft Windows 10 or Microsoft Windows 11.
Note
Use the USB interface if the Com Card is not connected to an Ethernet network or the Laptop/ PC used has no access to the network.
Ordering Information
Model Number
Product Description
A6500-CC
SYSTEM COMMUNICATION CARD,
MODBUS RTU/TCP, OPC UA
A6500-CC-P
PACKAGE A6500-CC & A6500-PE
A6500-PE
AMS 6500 ATG - PREDICTION
EXTENSION LICENSE
A6500-PER
AMS 6500 ATG - PREDICTION
EXTENSION LICENSE REDUNDANT
(2X A6500-PE)
A6500-SD
SYSTEM SD CARD FOR UPGRADE
AND REPLACEMENT
