Manufacture |
EMERSON |
|
Model |
A6500-RC |
| PN No. |
A6500-RC |
|
Catalog |
CSI 6500 |
|
Description |
16-Channel Output Relay Card Module |
| Origin | Germany |
| HS CODE |
85389091 |
| Dimension |
16*16*12 (CM) |
| Weight | 0.8 kg |
Description:

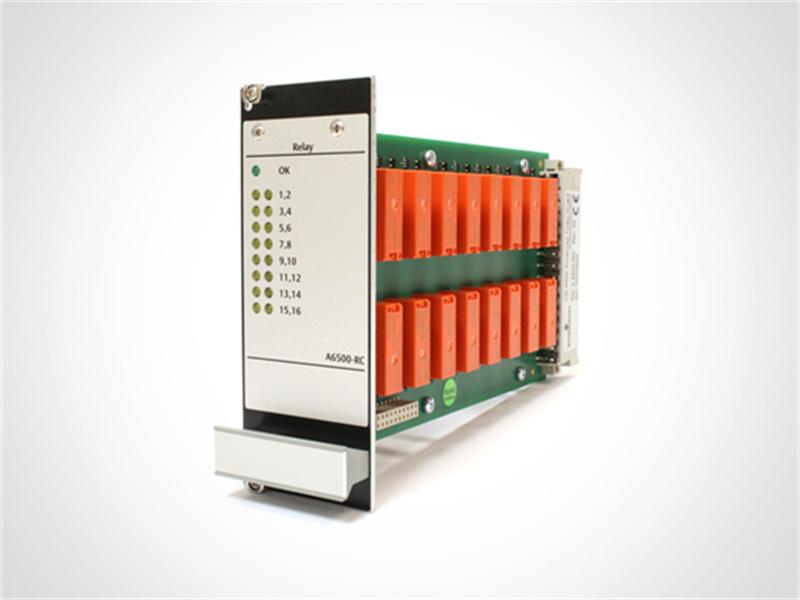

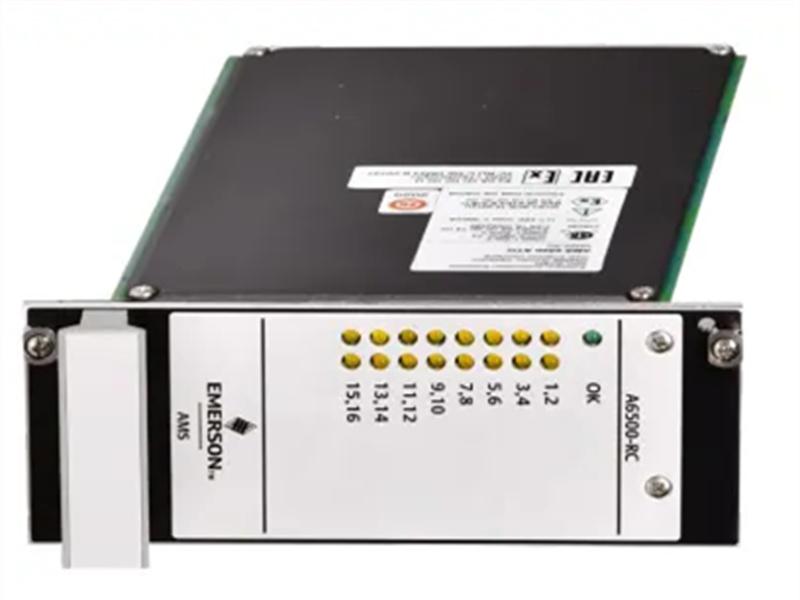

The EMERSON A6500-RC system relay card is specifically designed for the most critical rotating machinery in a plant, offering high reliability. When used in conjunction with the AMS 6500 ATG, this relay card can form a complete API 670 machinery protection monitor.
The EMERSON A6500-RC system relay card includes 16 channels of output relays and can receive clear, alarm, or alarm signals from any channel as input signals.
This relay card supports automated control and is rated for both voltage and power, ensuring stability and reliability under various operating conditions.
Parameter:
- Digital Input
Number of Inputs: 66
Logic Low Leve: 0V to 3V
Logic High Level: 13V to 32V
Rated Current: 1 mA
Rated Power: 24 mW
- Relay Output

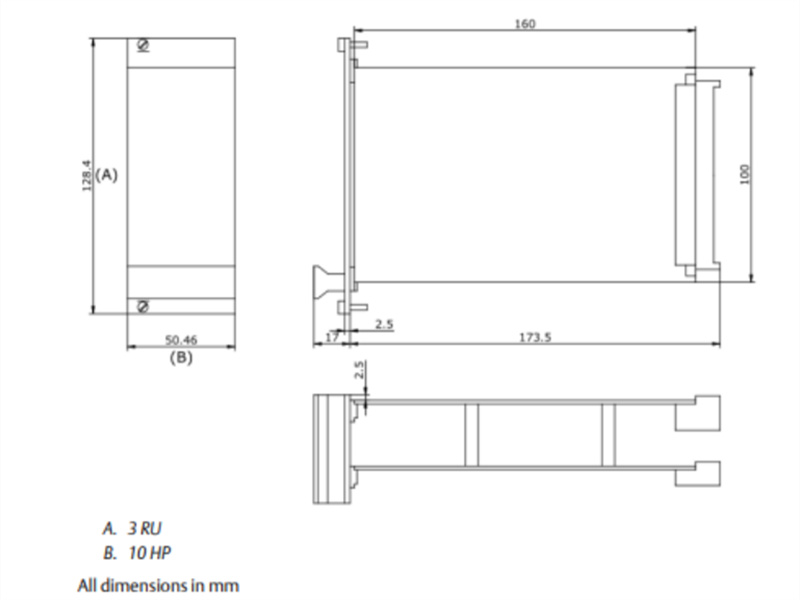

Number of Outputs: 16Dimensions:
Type: SPDT
Maximum Voltage Capacity: 32V DC / 48V AC
Output Load: AC1: 48V / 2A
DC1: 32V / 2A
DC-13: 24V / 1A
AC-15: 24V / 2A
Turn-on / Turn-off Time: 10 ms NO contact
13 ms NC contact
Rated Current: 2 A
Rated Power: 96 W
