Manufacture |
EMERSON/EPRO |
|
Model |
SE5109 |
| PN No. |
KJ1501X1-BK2 |
| Catalog | DeltaV |
|
Description |
DC System Power Supply |
| Origin | Malaysia/Thailand |
| HS CODE |
85389091 |

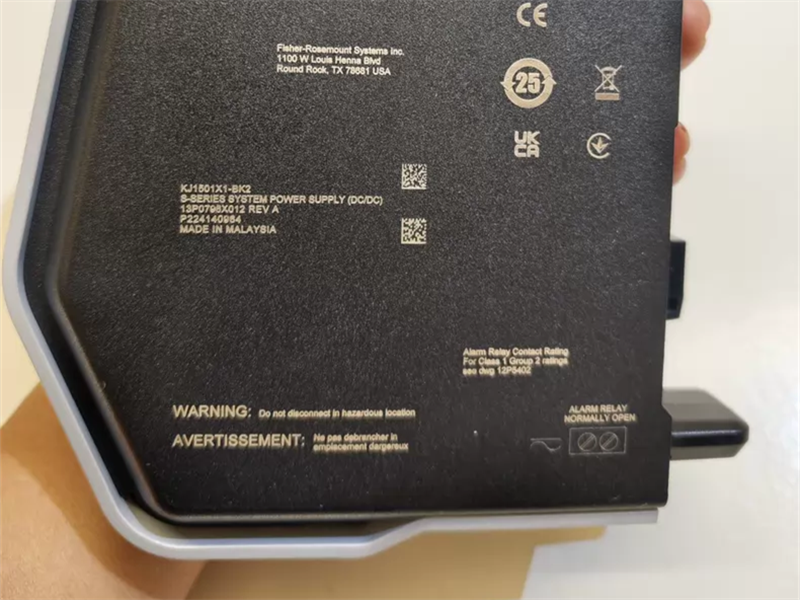

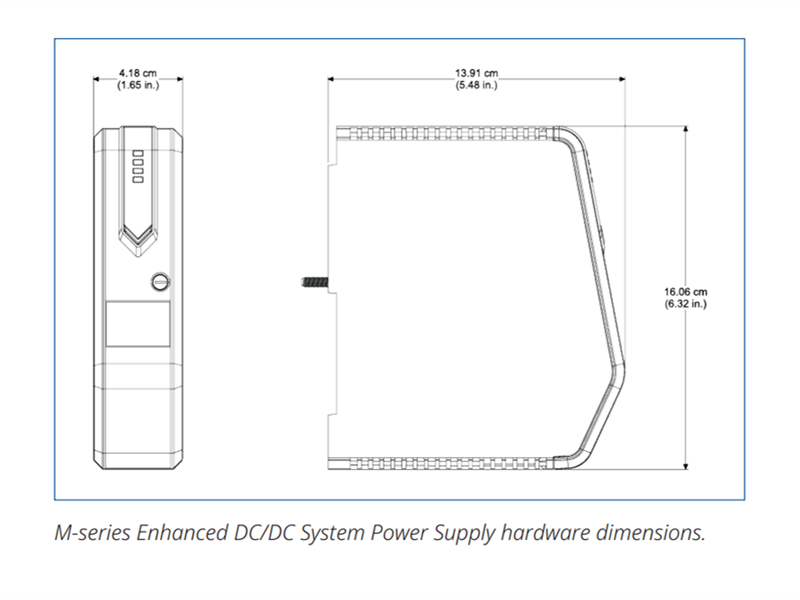

| Dimension |
13*1.9*19.1 (CM) |
| Weight | 0.2kg |
Description:
The DC/DC system power supply is used to power the DeltaV controllers and I/O interfaces from either 12 or 24V DC bulk power and can be mounted next to the controller on a Power/Controller carrier and provide the 5 and 3.3V DC required by the controller. It also provides 12V DC power to the I/O interfaces and supplies up to 8 Amps when powered from a 24V DC Bulk power supply.
Plug-and play components. The system power supply components fit into any power supply slot of any DeltaV power/controller carrier. This makes system design easy and the interchangeability reduces spares inventory.
Rail mounted. Power supply installation is simple.Mount the power/controller carrier into place on a T-type DIN rail. Then plug the system power supplies into the carrier.
Internal power bus. The power/controller carrier contains internal power buses. You don’t need to use external cabling to connect the system power supply to the DeltaV controller and the I/O interface carriers.
Modular power. You know your power requirements today, but what about the future? Lay a solid foundation now and build on it later. The modular power structure allows you to install additional power to the controller and I/O subsystems.
Accurate output. The system power supplies accept a wide range of power inputs and translate the inputs into accurate power output.
Power redundancy. DeltaV system power supplies can be redundant at 1-to-N versus 1-to-1 in other systems. This provides an economical solution to creating system redundancy.
Fault detection. Both under and over-voltage conditions are detected and recorded to protect the controller and I/O subsystem, and to enable automatic cold restart of the controller in case of bulk power supply failures.
Standard compliance. The power supplies are compliant with EMC and CSA standards. Their design meets the European “power factor correction” standards.
Immediate notification of power failure. Internal relay outputs change status and alert the user if the incoming voltage fails or if the system power supply fails. Also, the LED on the power supply housing displays the power status.
System and field power isolation. The system power supply provides isolation between the system power and field power when both are powered from the same 24V DC bulk power supply system.
Power supply removal. System power supplies are easy to remove/replace. Bulk power wires are attached to an easy mount connector rather than screw terminals.
Specifications:
Input Voltage: 5V DC
Rated Current: 1.4A
Operating Temperature: -40°C to 60°C
Protection Rating: IP20
Processor: Powerful multi-core processor
Memory: Ample memory for program and data storage
Communication: Supports Ethernet, DeviceNet, Modbus, and other protocols
I/O: Flexible I/O options for various applications
12V DC (-4-+5%) at 14.8 A
24V DC ± 20% at 6.1A
12 A peak maximum for 5 ms over 12V DC input range
(excluding 12V DC output)
20 A peak maximum for 5 ms over 24V DC input range
(including 12V DC output)
+ 12V DC at 13 A (12V DC Input)
+ 12V DC at 8.0 A (24V DC Input)
+ 5V DC at 2.0 A
+ 3.3V DC at 2.0 A
(10 W total for combined outputs of +5V DC and +3.3V DC)
+ 12V DC at 10 A (12V DC Input)
+ 12V DC at 6.0 A (24V DC Input)
+ 5V DC at 2.0 A
+ 3.3V DC at 2.0 A
(10 W total for combined outputs of +5V DC and +3.3V DC)
Description
24/12V DC System Power Supply Specifications
Input
Inrush (soft start)
Output Power Rating -40 to 60°C
Output Power Rating 60 to 70°C
Features:
- High-performance processor
Employs a high-performance processor to ensure high-speed data processing and control.
- Rich interfaces
Provides multiple interfaces, such as Ethernet, USB, and serial ports, for easy connection to other devices.
- Modular design
Modular design for easy expansion and maintenance.
- Strong real-time performance
Meets the needs of real-time control systems.
- Programming flexibility
Supports multiple programming languages, such as ladder diagrams, function block diagrams, and structured text, to suit engineers' programming preferences.
- Reliability and stability
Designed for high reliability, stability, and durability, enabling stable operation in harsh industrial environments.
- Scalability
Provides multiple expansion slots, allowing users to customize and expand according to actual needs, increasing system functionality and flexibility.
Hot Items of Emerson DeltaV
KC3010X1-BAI KJ1501X1-BA1 KJ3201X1-BA1
KC4011X1-BP1 KJ1501X1-BB1 KJ3202X1-BA1
KJ1501X1-BA2 KJ2002X1-BA1 KJ3206X1-BA1
KJ3001X1-BB1 KJ3002X1-BB1 KJ3208X1-BA1
KJ3001X1-BE1 KJ3002X1-BG1 KJ3208X1-BA1
KJ3001X1-BG1 KJ3004X1-BA1 KJ3208X1-BA1
KJ3001X1-BJ1 KJ322 2X1-EA1 KJ4001X1-CA1
KJ3002X1-BC1 KJ4001X1-CE1 KJ4001X1-CC1
KJ3002X1-BE1 KJ4001X1-CE1 KJ1501X1-BC2
KJ3201X1-EA1 KJ2201X1-BA1 KJ4001X1-BA2
KJ2201X1-HA1 KJ2005X1-BA1 KJ3242X1-BA1
KJ3242X1-FA1 KJ2003X1-BA2 KC3011X1-BA1
KJ4001X1-CJ1 KJ2003X1-BA2 KL4201X1-BA1
KJ3221X1-BA1 KJ3204X1-BA1 KJ4001X1-BA3
KJ3002X1-BF1 KJ4001X1-CB1 CL6721X1-A4 41B5215X132
KJ 3208X1-BA2 KJ4001X1-HB1 CL6821X1-A5 43B5797X032
KJ3242X1-EA1 KJ4001X1-CH1 CL6821X1-A6 12P0663X032
KJ4001X1-BE1 KJ3004X1-EA1 CL6824X1-A1 12P0050X032
KJ3223X1-BA1 KJ3243X1-BA1 CL6824X1-A2 12P0050X052
KJ4001X1-NB1 KJ3203X1-BA1 CL6824X1-A6 12P0767X032
KJ3221X1-EA1 KJ4001X1-CG1 DC9430X1-CA134B2574X012
KJ1501X1-BC1 KJ4001X1-NA1 KJ3221X1-BK1
KJ3102X1-BA1 KJ2003X1-BB1 12P4704X042
KJ2005X1-MQ1 KJ3002X1 -BG2 KJ4001X1-BE1
KJ3222X1-BA1 KJ3241X1-BA1 12P0818X072
Datasheet Link:
EMERSON SE5109 KJ1501X1-BK2 DeltaV DC to DC System Power Supply PDF Datasheet
