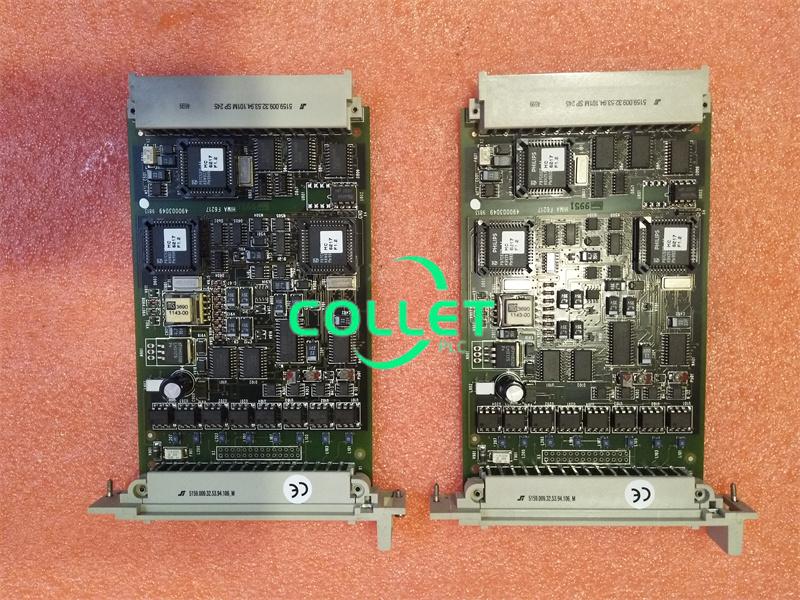

F6220 HIMA thermocouple input module

Description:

The module can be used to measure temperatures with low-resistance
thermocouples. As reference junction temperature serves a PT100. The
thermocouples can be installed in explosion endangered eareas up to
zone 0.
Digitized process signal are available in the HIMA PES.
Attention: The inputs must not apply with external voltage. Beside
all not described applications are unpermissible.
Electrical date regarding intrinsic safety
The respective indications can be learnt from the enclosed EC type examination certificate.
Assembling
The module must be installed out of the explosion endangered area.
The modules shall be installed in I/O racks. The mounting position can be
horizontal or vertical.
There are no installation instructions, any modules can be equipped together without free slots between.
