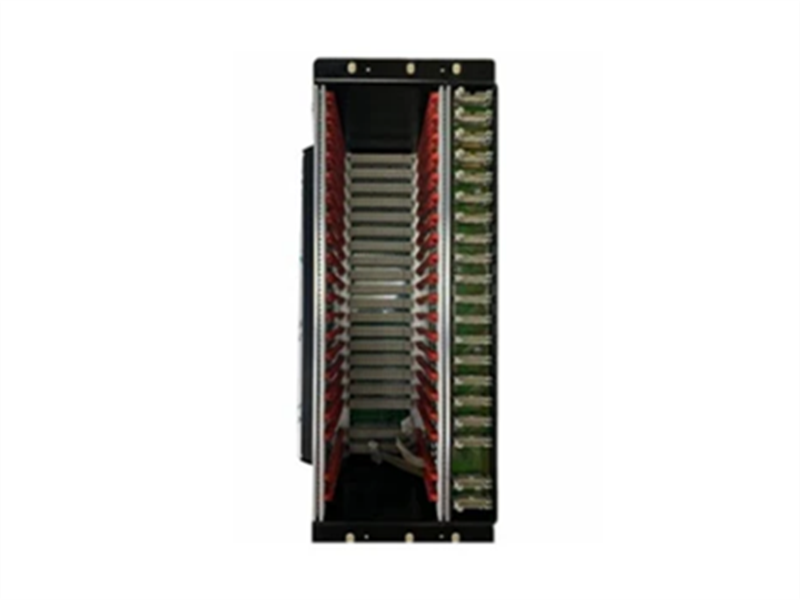

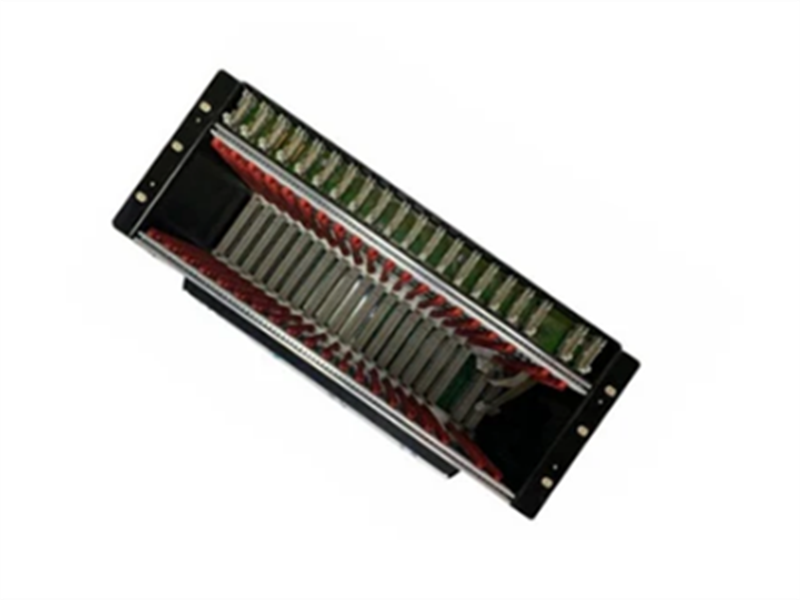

FC-IOCHAS-0001R Honeywell Redundant I/0 Chassis Module

Description:

The Honeywell FC-IOCHAS-0001R is a redundant I/O chassis designed for Honeywell Experion PKS and TDC 3000 distributed control systems, intended to support fault-tolerant applications in Honeywell automation systems.

It improves system uptime by accommodating multiple redundant I/O modules, ensuring reliable operation in critical control environments. It provides a modular platform supporting a variety of Honeywell modules. Its robust construction makes it ideal for harsh industrial environments, combining flexibility, safety, and industry standard compliance. This chassis is widely used in safety-critical applications, ensuring smooth operation even in the event of module failure.

Specifications:

Model:FC-IOCHAS-0001R
Type: Chassis for redundant I/O modules
System compatibility: Honeywell Experion PKS/TDC 3000
Function: Houses and secures redundant I/O modules for process control systems
Construction: Industrial-grade chassis with modular slots
Power consumption: 35 mA each for 5V-1 and 5V-2.
Certifications: CE, UL, CSA, TUV, FM.
Slots: Supports 18 I/O module slots (slots 1 to 18) and 2 I/O expansion module slots (slots 20 and 21).
Connectors: Provides multiple flat cable connectors for connecting I/O modules and expansion modules.

Features:

• Redundant Design

Supports power and communication redundancy, ensuring continuous system operation even if a single module fails.

• Versatility

Supports multiple input/output types, such as analog input (AI), analog output (AO), digital input (DI), and digital output (DO).

• High Performance

Employs advanced electronics and control algorithms to ensure high precision and speed in input/output signal processing.

• Easy Configuration

Supports plug-and-play and rapid configuration, allowing users to easily set module parameters and input/output channels according to their needs.

• Industrial-Grade Design

Manufactured using industrial-grade materials and processes, providing excellent interference immunity and resistance to harsh environments.

• Redundant Design

Supports dual I/O modules for fail-safe operation.

• Safe Enclosure

Provides mechanical stability and protection for installed modules.

• Industrial-Grade Durability

Designed for continuous operation in harsh environments.

• Flexible Integration

Compatible with Honeywell DCS systems and various I/O module types.

Datasheet Link:

FC-IOCHAS-0001R Honeywell Redundant I/0 Chassis Module PDF Datasheet
