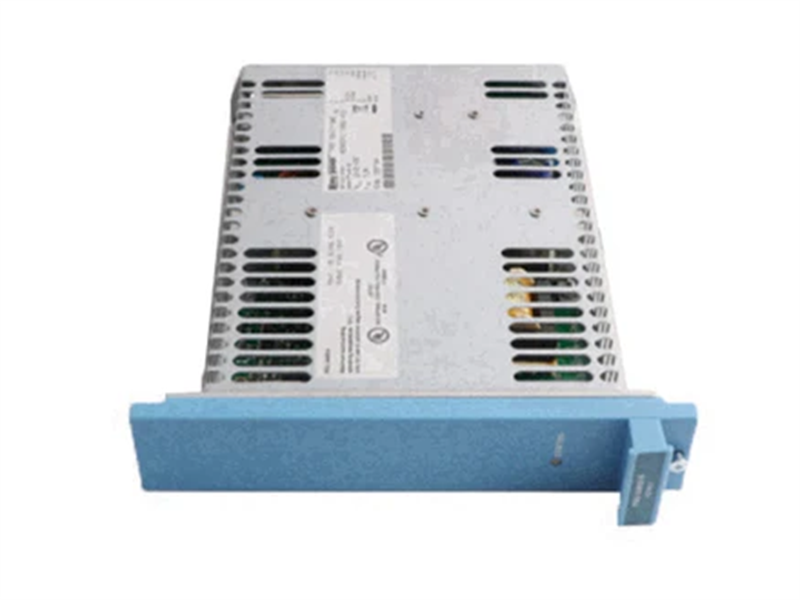

FC-PSU-240516 Honeywell Power supply unit Module

Description:

The Honeywell FC-PSU-240516 is a Power Supply Module designed for use within Honeywell Experion Process Knowledge System (PKS) controllers. It provides a stable 24V DC power supply for various control and I/0 modules within a distributedcontrol system (DCS).

With high efficiency and robust protection features, it ensures continuous operation in demanding environments.

Parameters:

Module name: FC-PSU-240516

Operating Temperature: -5°C to +70°C (+23°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 10% to 95% (non-condensing)
Product Type: Power Supply Module
Input Voltage: 20-32 VDC
Input Current: 5.2 Amps
Output Voltage: 5 VDC
Output Current: 16 Amps
Input Frequency: 47-63 Hz
Inrush Current: < 40 A (cold start at 230 VAC)
Power Factor: > 0.95 at full load

 Features:

High-Quality Construction: Durable and long-term reliability
Efficient Power Conversion: Optimized performance
Wide Input Voltage Range: Compatible with various power sources
Multiple Output Channels: Versatile power distribution
Advanced Protection Mechanisms: Safeguards connected devices

Datasheet Link:

FC-PSU-240516 Honeywell Power supply unit Module PDF Datasheet
