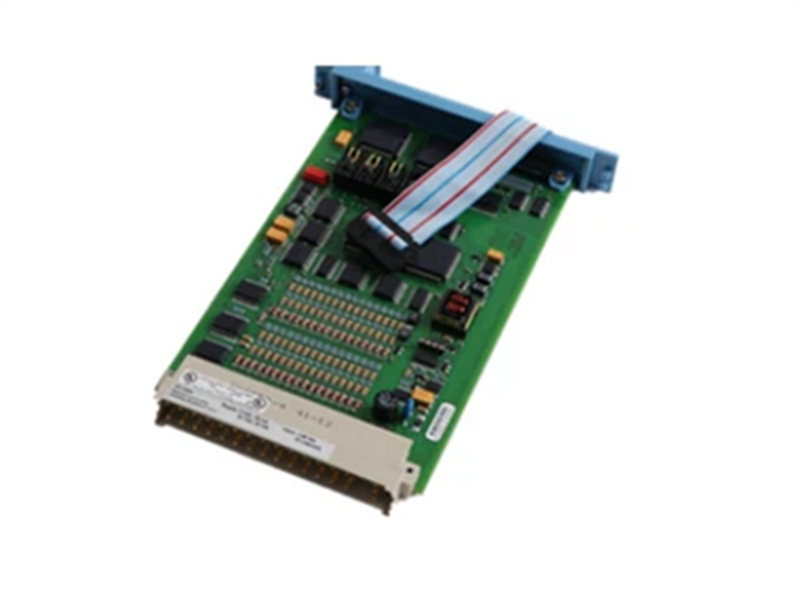

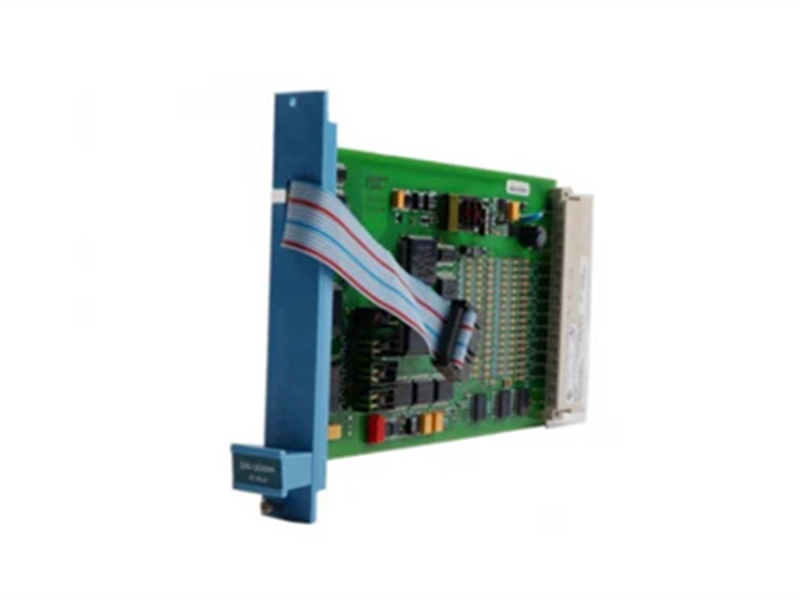

FC-SAO-0220M Honeywell Safe Analog Output Module

Description:

The Honeywell FS-SAO-0220m (FC-SAO-0220m) is a certified safe analog output module. It provides reliable current signals for critical safety applications. This module delivers precise analog control within a high-integrity safety system.The Honeywell FS-SAO-0220M Safe Analog Output Module is designed with outstanding reliability and safety for use in industrial automation systems.This provides stable and precise switching functions, which are crucial for accurately controlling actuators, motors, and other electrical equipment.

It suitable forvarious industrial automation and process control applications. It provides comprehensive safety analogoutput control functions, flexible configuration, and easy integration. By enhancing system safety andreliability while reducing production losses and safety risks, this module plays a crucial role in safety-critical systems.

Specifications:

Module Name. : FC-SAO-0220M

Channels: 2 analogi zvabuda
Range rekubuda: 0 (4)–20 mA
Kubuditsa Impedance:250 uyo
chiyamuro Voltage: 24 VDC
Power Consumption:1.5 W
Time Response: ≤ 1 ms
Max Load Resistance:600Ω
Accuracy:+/- 1% Full Scale
Safety Certification:UL, CE, CSA
Temperature Range:-20°C to +70°C

Features:

• Output Channels

Two channels of 0(4)-20 mA output.

• Load Requirements

Only resistive or capacitive loads; inductive loads are not supported.

• Galvanic Isolation

Ensures outputs are insulated from supply voltages, guaranteeing safety and preventing interference.

• Secondary Means of De-energizing (SMOD)

Each output incorporates a secondary means of de-energizing, enabling independent
deactivation by the watchdog and processor irrespective of application status.

• Diagnostic Testing

Regular testing of analog outputs for correct output value, de-energization capability, and crosstalk between channels.

Datasheet Link:

FC-SAO-0220M Honeywell Safe Analog Output Module PDF Datasheet
