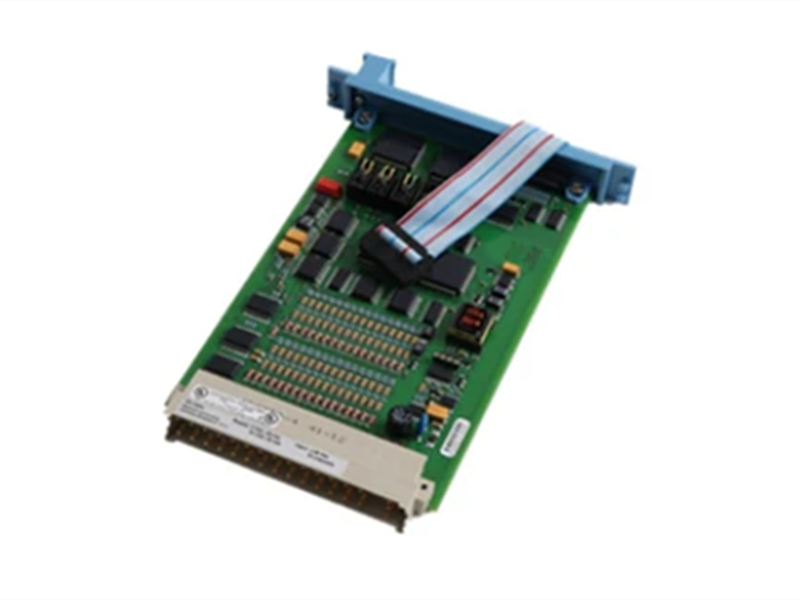

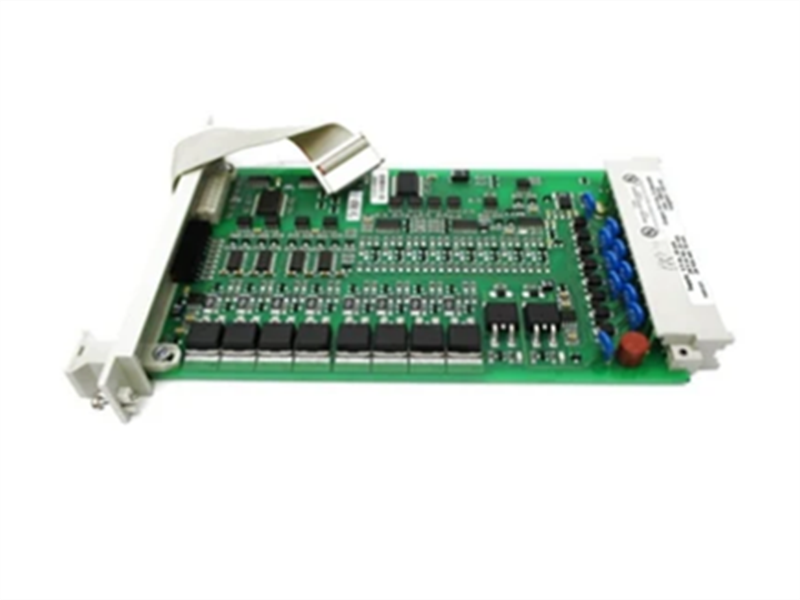

FC-SDI-1624 Honeywell Safe digital Input Module

Description:

The Honeywell FC-SDl-1624 is a safe digital input module, tailored for safety-critical applications. For use with the Experion PKS family of programmable logic controllers (PLCs).It provides 16isolated, 24 VDC inputs that can be used to monitor a variety of discrete signals,such as limit switches, proximity sensors, and pushbuttons. The module also featuresbuilt-in diagnostics to help troubleshoot problems.

It supports a 24VDC input voltage and meets the highest industry safety standards. Certified to IEC61508 SIL 3 and compliant with IEC 61131-2, this module guarantees reliable performance in hazardousenvironments. Its compact and rugged design ensures durability, while its straightforward installation andconfiguration process minimize setup time.

Specifications:

Module Name. : FC-SDI-1624

Approvals: CE, TUV, UL, CSA, FM
Space Requirements: 4 TE, 3 HE
Number of Input Channels: 16
Maximum Input Voltage: 36 VDC
Input Current: 7 mA at 24 VDC
Input HIGH:>15 VDC
Input LOW: < 9 VDC (1 < 2 mA)
Input Delay: Typically 10 ms
Type: 24 VDC solid state, short-circuit proof
Maximum Current: 450 mA (see Figure 174, page 296)
Max. Load Capacitance: 32 uF
Voltage Drop: < 1.5 V at 450 mA

Features:

Status LEDs for each input
A TEST input for testing the module

• Multi-Type Input Support

Each channel accepts PNP, NPN, or dry contact signals

• Fast Signal Acquisition

Ultra-low latency ensures reliable detection in safety systems.

• Software Configurable

Input types and response times adjustable via system software.

• Industrial Durability

Engineered for harsh environments and continuous operation.

• Simplified Integration

Ideal for mixed-sensor installations in Honeywell control systems.

Datasheet Link:

FC-SDI-1624 Honeywell Safe digital Input Module PDF Datasheet
