Manufacture |
HIMA |
|
Model |
F3430 |
| PN No. |
984865065 |
|
Catalog |
HiQuad |
|
Description |
4-Channel Relay Module |
| Origin | Germany |
| HS CODE |
85389091 |
| Dimension |
2.25*9.9*11.45 (CM) |
| Weight | 0.5 kg |

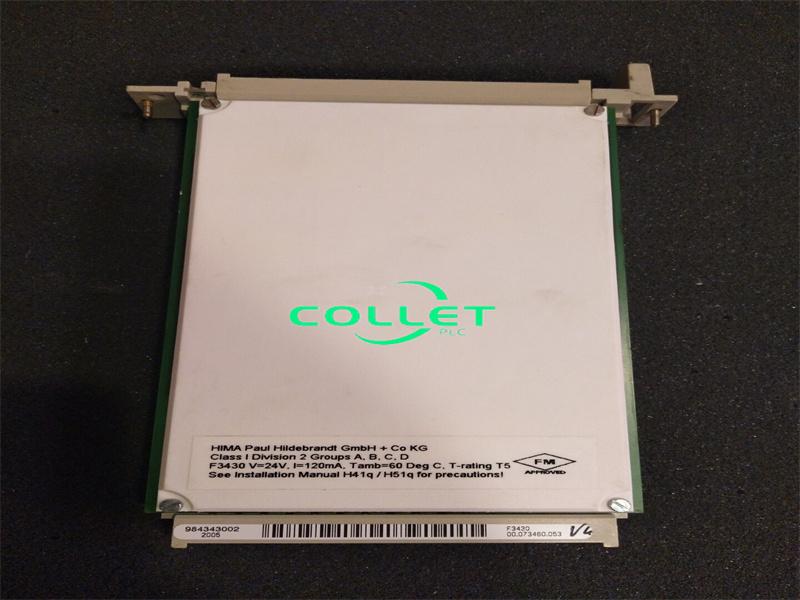

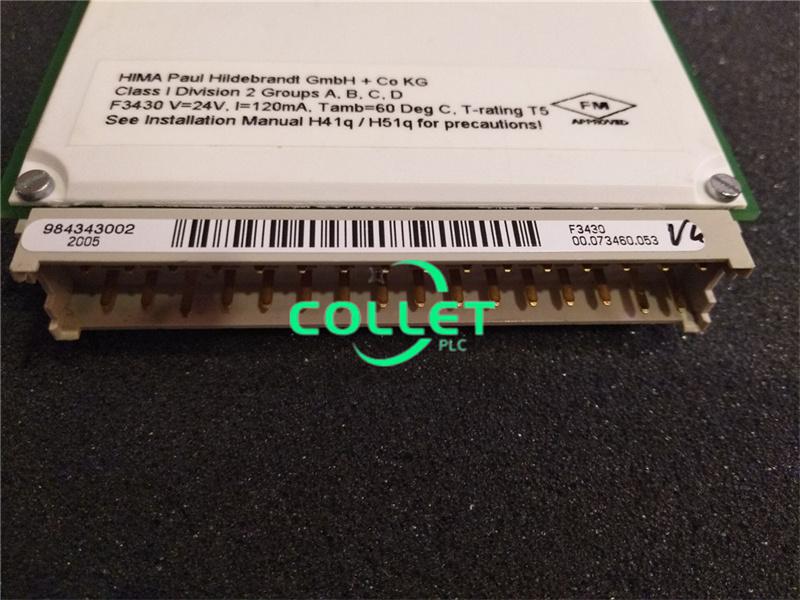

The HIMA F3430 is a 4-channel relay module designed for use in industrial automation systems. lt is engineered toprovide reliable signal amplification and safety shutdown capabilities. The module is particularly well-suited forsafety-critical applications, ensuring robust performance in demanding environments. lt features an integrated safetyshutdown with three subsequent relays for enhanced protection and fault tolerance.
Specifications:
Model Number: F3430
Type: 4-Channel Relay Module
Switching Voltage:>5 V,<250 VAC/<110 VDC
Relay Output Load Capacity: 250 VA
Relay Contact Type: Normally Closed (NC) / Normally Open (NO)
Safety lsolation: Inteqrated safety shutdown with 3 subsequent relays (in diversity)
Solid-State Output: Open collector for LED display in the cable plugPower Supply Voltage: 24 V DC
Voltage Rating: ≤ 250 V AC/DC
Current Rating: ≤ 4 A
Outputs: 500 mA, short circuit proof
Safety Time: 11 ms
Mechanical Lifetime: 10 million operations
Electrical Lifetime: 100,000 operations
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Switching Speed:≤ 1ms
Environmental Rating:IP20
Features:
-Resistive or Inductive Load: Up to 500 mA (12 W)
-Lamp Connection: Up to 4 W
-Integrated Safety Shutdown
-Safe Isolation
-No Output Signal with Break of the L- Supply
-Requirement Class: AK 1 to 6
Datasheet Link:
HIMA F3430 4-Channel Relay Module PDF Datasheet
HIMA F3430 4-Channel Relay Module
| Output modules digital | |||||
| F 3322 | 16 | - | - | 24 VDC to 0.5 A | |
| F 3325 | 3 | 6 | - | yes | Ex transmitter supply module for F 6221, ATEX |
| F 3330 | 3 | 8 | - | - | 24 VDC to 0.5 A |
| F 3331 | 3 | 8 | yes | - | 24 VDC to 0.5 A |
| F 3333 | 3 | 4 | - | - | 24 VDC to 2 A |
| F 3334 | 3 | 4 | yes | - | 24 VDC to 2 A |
| F 3335 | 3 | 4 | - | yes | 24 VDC, ATEX |
| F 3348 | 3 | 8 | - | - | 48 VDC to 0.5 A |
| F 3349 | 3 | 8 | yes | - | 24 VDC/48 V DC to 0.5 A |
| F 3422 | 8 | - | - | Relay module, 30 VAC/DC, 120 W, floating NO contact | |
| F 3430 | 3 | 4 | - | - | Relay module, 110 VDC/250 V AC to 4 A |
