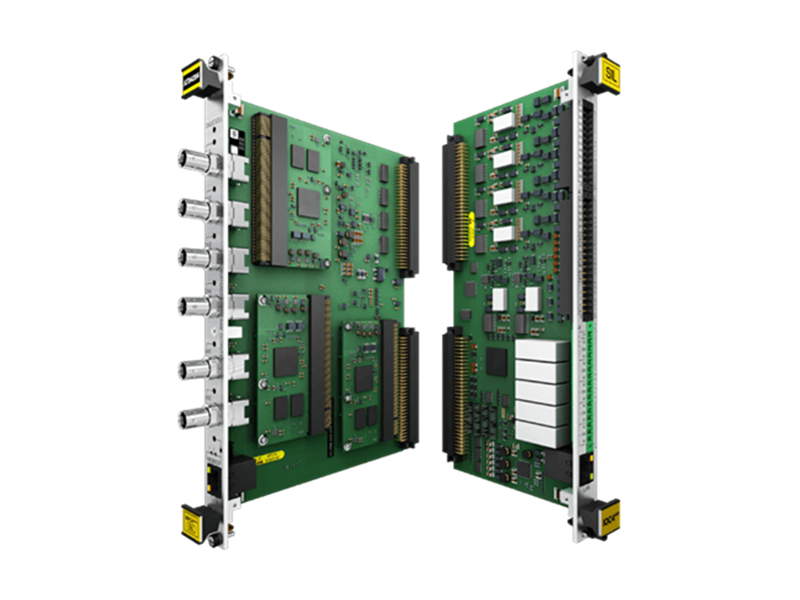

IOC4MK2 601-043 input/output module

The IOC4Mk2 ordering number PNR 600-043 corresponds to the underlying module version 620-024-100-1Hh, where “Hh” represents the hardware versions (“H” increments are for major modifications that can affect product interchangeability, “h” increments are for minor modifications that have no effect on interchangeability).

Item NO.:
IOC4TMK2
Payment:
T/T
Market Price:
$5000
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
30
Product weight:
0.5 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	IOC4MK2
PN No.	601-043
Catalog	NIL
Description	input/output module
Origin	Switzerland
HS CODE	85389091
Dimension	12118 (CM)
Weight	0.5 kg

Description:

KEY FEATURES AND BENEFITS
• VibroSight® compatible hardware from the vibro-meter® product line
• VM600Mk2 (second generation) machinery protection and condition monitoring module
• 4 dynamic channels and 2 auxiliary channels configurable as either tachometer inputs or DC inputs
• VM600Mk2 system safety-line to drive all system relays to a safe state
• Diagnostics (built-in self-test (BIST)) provides continuous feedback on the health of the module
• Individually configurable inputs (with sensor power supply outputs), channel filters, processing and outputs – with simultaneous data acquisition (fixed frequency or order tracking)
• High-resolution spectra (FFT) for condition monitoring: up to 6400 lines every 100 ms
• Up to 10 processed outputs per channel
• Multiple alarms per processed output with configurable limits, hysteresis and time delay
• AND, OR and majority voting logic functions for the combination of alarm and status information
• Discrete outputs: 4 user-configurable relays for use by alarms and 1 status relay
• Analog outputs: 4 outputs configurable as either 4 to 20 mA or 0 to 10 V
• Conforms to API 670
• Direct system Ethernet communications
• Compatible with VM600Mk2 system racks (ABE04x) and slimline racks (ABE056)
• Live insertion and removal of modules (hot-swappable) with automatic reconfiguration
• Software configurable
• Front-panel status indicators (LEDs)

APPLICATIONS
• VM600Mk2 machinery protection (MPS) and/or condition monitoring (CMS)
• Vibration and/or combustion monitoring
• API 670 applications

1. Input & Measurement Capability

Feature	Specification
Number of Inputs	4 Dynamic signal inputs + 2 Tachometer (speed) inputs
Input Signal Types	Acceleration, Velocity, Displacement (Proximity), and Dynamic Pressure
Tachometer Range	0.016 Hz to 50 kHz (supports fractional tacho ratios)
DC Range	0 to +20 V or 0 to -20 V
Frequency Band	0.1 Hz to 10 kHz (up to 60 kHz for buffered outputs)

2. Monitoring & Alarm Logic

Feature	Specification
Alarm Set Points	Programmable Alert, Danger, and OK set points
Monitoring Modes	Relative/Absolute vibration, $S_{max}$ , eccentricity, thrust position
Alarm Scanning	100 ms maximum interval
Logic Combinations	AND, OR, and majority voting logic (8 basic + 4 advanced functions)
Adaptive Levels	Levels can be adapted as a function of speed or external info

3. System & Safety Standards

Feature	Specification
API 670 Compliant	Strict segregation between MPS and CMS functions
Safety Certification	Certified to IEC 61508 (SIL) and ISO 13849 standards
Live Insertion	Supports live insertion and removal of cards (Hot-swappable)
Self-Test System	Continuous "OK System" monitoring for sensor/line faults

4. Physical & Environmental

Feature	Specification
Operating Temp	-25 to +65 °C (-13 to +149 °F)
Humidity	0 to 90% non-condensing
Dimensions	6U Height (262 mm) x 20 mm Width x 187 mm Depth
Power Consumption	12.5 W (+1 W per sensor used)

Ordering Number:

MPC4 200-510-063-034

MPC4 200-510-063-034
MPC4 200-510-070-113
MPC4 200-510-071-113
MPC4 200-510-076-114
MPC4 200-510-150-011
MPC4 200-510-150-031
MPC4 200-510-078-115
MPC4 200-510-074-114
MPC4 200-510-SSS-1Hh
MPC4MK2 600-041

IOC4TMK2 600-043

Datasheet Link:

IOC4TMK2 600-043 Machinery Protection Card Pdf Datasheet
