IOC4T Voltage-Drop Adaptor 200-560-900-052 Vibration

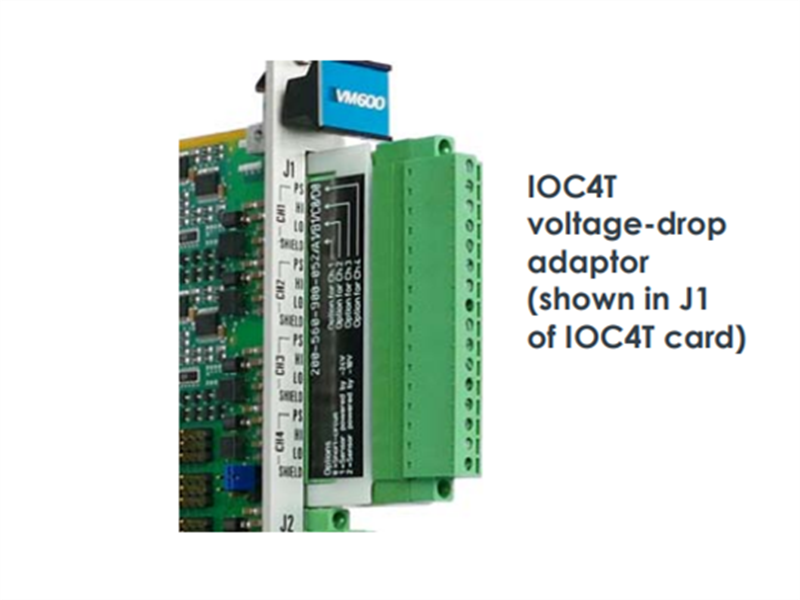

IOC4T 200-560-900-052 voltage-drop adaptor (shown in J1 of IOC4T card)

Item NO.:
200-560-900-052
Payment:
T/T
Market Price:
$2150
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
12
Product weight:
0.4 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	IOC4T
PN No.	200-560-900-052
Catalog	NIL
Description	Voltage-Drop Adaptor
Origin	Switzerland
HS CODE	85389091
Dimension	0.720.350.12 (CM)
Weight	0.1 kg

Description:

The IOC4T voltage-drop adaptor is designed for use with MPC4/IOC4T card pairs in the VM600 series of machinery protection systems and condition and performance monitoring systems, from Meggitt’s vibro-meter® product line.

The MPC4/IOC4T card pair includes a sensor power supply for each of the channels (four dynamic and two speed/phase reference) that can provide an output of either −27.2 VDC, +27.2 VDC, +15 VDC or +6.16 mA, when enabled.

This sensor power supply (PS) output is software configurable individually for each channel in order to support the widest possible wide range of vibro-meter® sensors and conditioners, including those with current-modulated signals.

This MPC4/IOC4T sensor power supply can also be used to provide power to generic devices (non-vibro-meter®). However, some popular machinery protection products, including from Bently Nevada™, are not directly compatible with the default power supply outputs.

KEY FEATURES AND BENEFITS

• From the vibro-meter® product line
• Voltage-drop adaptor:
−27 V input to −24 V outputs,
−27 V input to −18 V outputs and/or straight-through connections
• Designed for operation with MPC4/IOC4T card pairs
• Inserts directly into the J1 and/or J2 screw-terminal connectors of an IOC4T card

APPLICATIONS

• Machinery protection and/or basic condition monitoring
• Reduces external circuitry and wiring when an IOC4T card is used to supply power to thirdparty sensors / measurement chains (front ends)

Ordering number (PNR):

200-560-900-0xx
	A	Option for channel 1
	B	Option for channel 2
	C	Option for channel 3
	D	Option for channel 4

The voltage-drop options for each channel are:
0 For a straight through (short-circuit) connection. The MPC4 sensor power supply (PS) output can be set to −27.2 VDC, +27.2 VDC, +15 VDC or +6.16 mA as required by the attached sensor, signal conditioner or other circuitry.
1 For a −24 VDC output. The MPC4 sensor power supply (PS) output must be set to −27.2 VDC.
2 For a −18 VDC output. The MPC4 sensor power supply (PS) output must be set to −27.2 VDC.

Notes
As an MPC4/IOC4T card pair can accept a wide range of different sensors / measurement chains, an IOC4T voltage-drop adaptor must be ordered using a PNR (ordering number above) with options that specify the voltage-drop required by each individual adaptor channel in a specific application.

For example:
• A voltage-drop adaptor for use with dynamic channels (connector J1 on the IOC4T) requires an option for each dynamic input, that is, options for channels 1 to 4.
• A voltage-drop adaptor for use with the speed/phase reference channels (connector J2 on the IOC4T) requires an option for each speed/phase reference input, that is, options for channels 1 and 2 but with option 0 specified for channels 3 and 4.
An IOC4T voltage-drop adaptor is supplied with an Allen (hex) driver tool with a ball end suitable for the captive retaining bolts that should be used to secure the adaptor in the J1 and/or J2 screw-terminal connectors of an IOC4T card.

RELATED PRODUCTS

IOC4T capacitivecoupling adaptor	VM600 IOC4T capacitive-coupling adaptor	: Refer to corresponding data sheet
MPC4 and IOC4T	VM600 machinery protection card pair	200-510-SSS-1Hh and 200-560-000-1Hh
