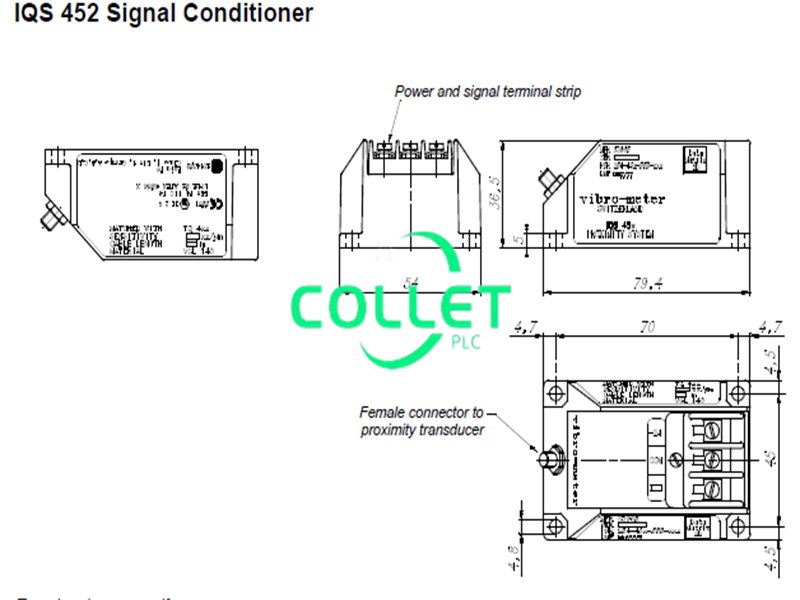

IQS452 204-452-000-211 Signal Conditioner

DESCRIPTION:

This proximity system allows contactless measurement of the relative displacement of moving machine elements. The system is based around a TQ 422 or TQ 432 non-contacting transducer and its matching IQS 452 signal conditioner. Together, these form a calibrated proximity system in which each component is interchangeable. The system outputs a voltage or current proportional to the distance between the transducer tip and the target (e.g. machine shaft).

Both the TQ 422 and the TQ 432 are specially designed for high-pressure applications, with the transducer tip withstanding pressures of up to 100 bar. This makes them particularly suitable for measuring relative displacement or vibration on submerged pumps and various types of hydraulic turbines (e.g. Kaplan and Francis).

The active part of the transducer is a coil of wire that is moulded inside the tip of the device, which is made of PEEK (polyetheretherketone). The transducer body is made of stainless steel. The target material must, in all cases, be metallic.

The transducer body is available only with metric thread. The TQ 432 version is intended for reversemount applications. The TQ 422/432 has an integral coaxial cable, terminated with an AMP-type connector. Various cable lengths (integral and extension) may be ordered.

The IQS 452 signal conditioner contains an HF modulator/demodulator that supplies a driving signal to the transducer. This generates the necessary electromagnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in an aluminium extrusion.

The TQ 422/432 transducer can be matched with a single EA 402 extension cable. Optional junction boxes and housings offer mechanical protection of the integral and extension cable connectors. The proximity system is powered by associated processor modules or a rack power supply
