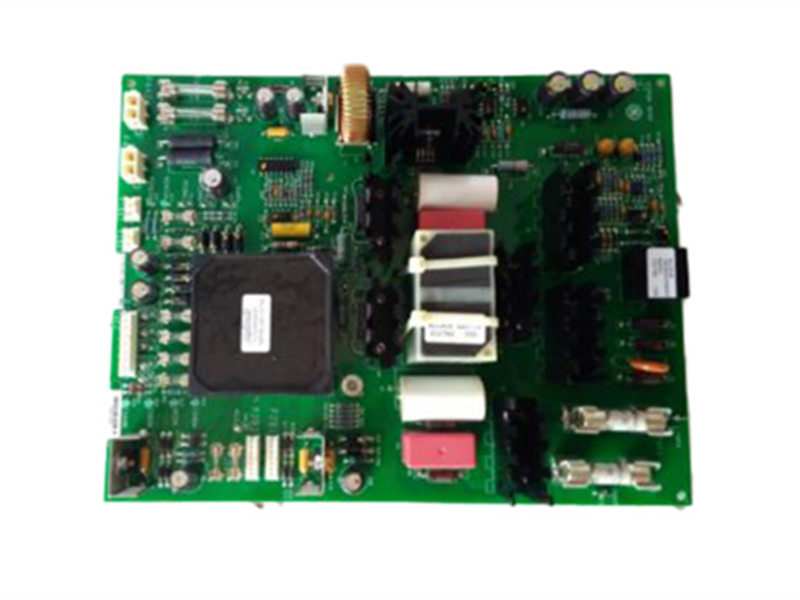

IS200BPIAG1AEB GE Mark VI Printed Circuit Board

Description:

The IS200BPIAG1AEB is a dedicated drive axle interface card manufactured by GE for its Mark VI series products.

MKVI is one of the latest steam/gas turbine management systems in GE's Speedtronic series. MKVI provides comprehensive control, protection, and monitoring capabilities for heavy-duty turbine systems, offering excellent adaptability and scalability for various applications. MKVI is based on 13 or 21-slot VME card slot control modules.

The Mark VI series is suitable for wind, steam, and gas turbines. The IS200BPIAG1AEB represents a significant upgrade from the previous Mark V series, which was limited to gas and steam turbine control system setups.

Parameters:
Product Series: Mark VI Speedtronic
Part Number: IS200BPIAG1AEB
Product Type: Bridge Personality Interface Board
Revision Quantity: 3 Revisions
Backwards-Compatibility 1st two revisions
PCB Coating Type Normal Coating
Series: Mark VI IS200
Board Function: IGBT Drive Bridge Personality Interface
Gate Driver Circuits: 6
VCO Feedback Circuits: 3
Isolated Power Supplies: 9
Mounting Style: VME Rack
Square Wave Input: 17.7VAC
Revision: A

Features:

• Ethernet 1-Port Communication

This is an embedded Ethernet interface module used for network communication.

• Digital Input

As a general-purpose digital input module, it can receive digital signals from external devices and transmit these signals to the control system.

• Analog Output

This module also features analog voltage or current output capabilities. It can output corresponding analog signals according to the control system's commands, thereby driving external devices or controlling actuators.

Frequently Asked Questions about IS200IGPAG2AED:

1.Are this IS200BPIAG1AEB product offering's three revisions all considered backwards-compatible?
No. Solely this IS200BPIAG1AEB device's first two product revisions could be considered backwards-compatible, as they are both functional styles of Mark VI Series product revisions.

2.Where specifically was this IS200BPIAG1AEB device first manufactured?
This IS200BPIAG1AEB product was originally manufactured in General Electric's Salem, Virginia factory plant location.

3.What kind of configuration does the IS200BPIAG1A require?
The IS200BPIAG1A does not require any user configuration of hardware components.

4.What are some protections granted by the IS200BPIAG1A?
The IS200BPIAG1A offers protections such as hardware phase overcurrent and IGBT desaturation fault.

5.What does the IS200BPIAG1A interface?
The IS200BPIAG1A interfaces the power and control electronics within a 3-phase IGBT AC drive system.

6.What type of rectification do the secondaries of the IS200BPIAG1A have?
Two of the IS200BPIAG1A secondaries are halfwave rectified, while the third is fullwave rectified.

7.Is there stock available or how long is the lead time?

Lead time: In stock

Datasheet Link:

IS200BPIAG1AEB GE Mark VI Printed Circuit Board PDF Datasheet
