IS200ERBPG1A GE EX2100, Regulator M1 Backplane

Description:

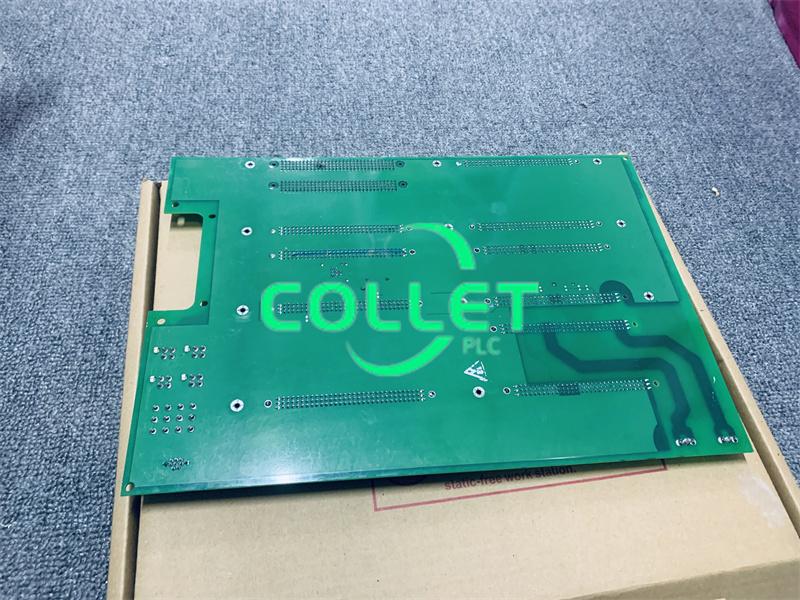

IS200ERBPG1A is an EX2100 Exciter Regulator Backplane (ERBP) designed by General Electric. It is a part of the EX2100 series used in the Excitation control systems. The Exciter Regulator Backplane (ERBP) is a fundamental component in EX2100 regulator control systems, primarily facilitating connectivity and communication between the various printed circuit boards it houses. The board acts as a central connectivity hub, interconnecting all mounted printed circuit boards within the system. It establishes vital connections and pathways for communication and data exchange among these boards.

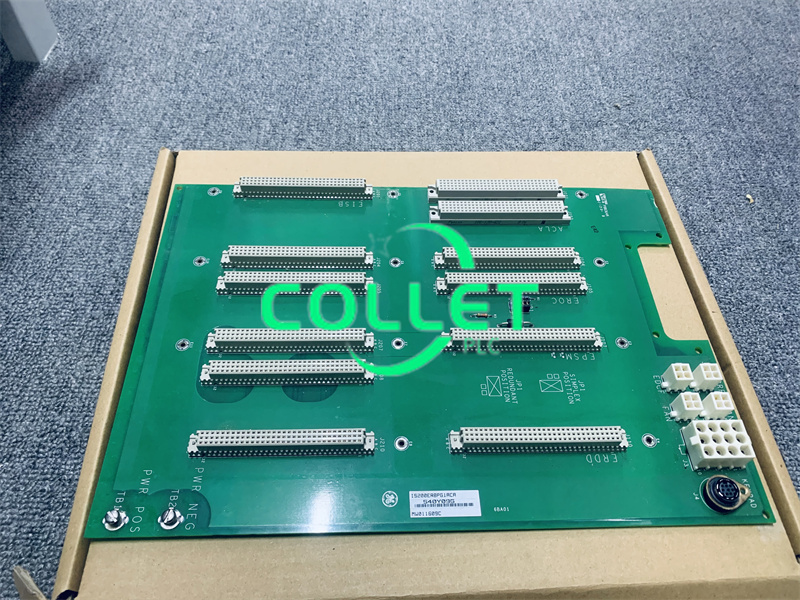

Exciter Regulator Backplane Module IS200ERBPG1A is one of the backplane boards within the EX2100 series and can be used with the Mark VI series from GE as well. The power connectors of the board are at the bottom, they are labeled TB1 and TB2, the negative power will be connected to TB2 and the positive power will be connected to the TB1. In the top corner of the board, there are five connectors; one of them is a keypad connector, three are three-position female plug connectors, and the fifth is a twelve-position female plug connector.

The IS200ERBPG1A can also be integrated to connect with stand-alone retrofitted applications, these applications should have Ethernet Modbus or serial communication protocols built in. The ERBP board provides connectivity to a number of different EX2100 boards such as the EPSM and DSPX modules.

EPSMG2 converts the dc link bus voltage into the voltages required for the EX2100 regulator control. In simplex systems, one EPSMG2 is mounted in the IS200ERBPH_A Exciter Regulator Backplane (ERBP). In redundant systems, one EPSMG2 is mounted in ERBP (M1) and a second EPSMG2 is mounted in the IS200ERRBH_A Exciter Regulator Redundant Backplane (ERRB, M2/C).

The EPSD that is mounted on EPSMG2 modifies the power input path to allow EPSMG2 to accept higher voltages by increasing the creep and clearance. It also provides a fuse between the regulator power source (dc link) and the buck-regulator.

Frequently Asked Questions:

1.What is the payment term?
Wire transfer only.

2.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

IS200ERBPG1A GE EX2100, Regulator M1 Backplane PDF Datasheet
