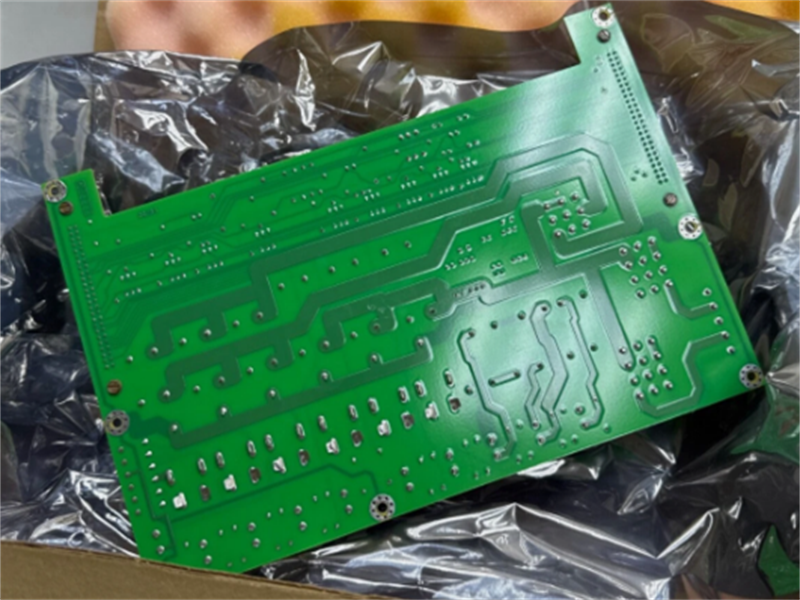

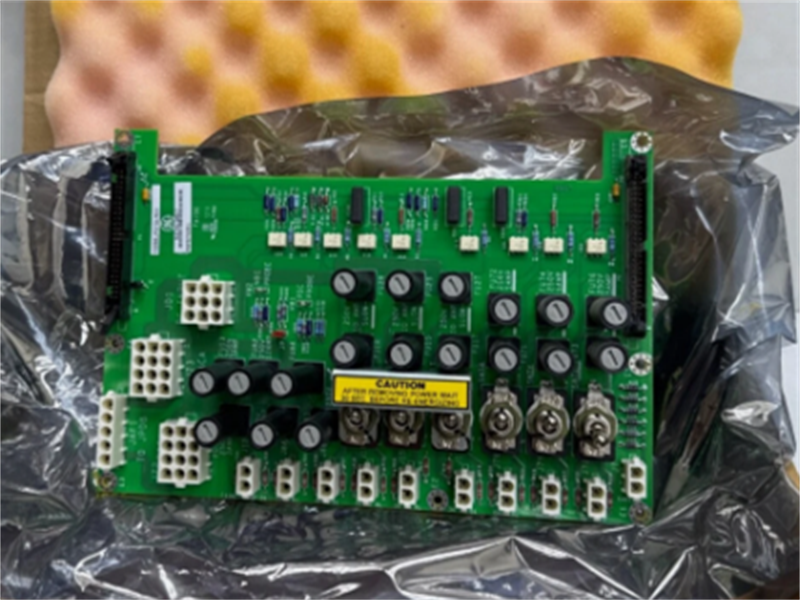

IS200JPDFG1AED GE Mark VIe DC Power Distribution Module

Description:

The GE IS200JPDFG1AED is a DC power distribution module specifically designed for industrial control systems. Its primary function is to distribute incoming DC voltage to multiple load points while providing protection features—such as overcurrent and overvoltage protection—to ensure the stable operation of the equipment. The JPDF board accepts redundant 125 VDC power inputs and distributes power to other circuit boards within the system. The JPDF operates using a floating DC bus configuration relative to ground, rather than a traditional grounded system. This design not only enables the detection of system ground faults but also features a 125 VDC rating classified as non-hazardous.

Features:

• Power Distribution

Distributes the input DC voltage to multiple loads.

• Overcurrent Protection

Prevents damage to loads caused by excessive current.

• Overvoltage Protection

Prevents damage to loads caused by excessive voltage.

• Short-Circuit Protection

Prevents damage resulting from short-circuit faults.

• Isolation Protection

Provides electrical isolation to enhance system safety.

• Communication Capabilities

May support various communication protocols (e.g., Modbus RTU, DNP3) to enable remote monitoring and control.

Specifications
Model: IS200JPDFG1A / IS200JPDFG1AED
System Compatibility: GE Mark VIe Control Series
Input Voltage: 28 VDC / 125 VDC (Configurable)
Output Voltage: Distributed Control Power (DCP)
Monitoring Functions: Onboard Voltage and Temperature Sensors
Output Circuits: Multiple Fuse- or Circuit Breaker-Protected Outputs
Efficiency: > 80%
Operating Temperature: 0°C ~ 50°C
Dimensions: Varies based on device form factor
Certifications: UL, CE, and other safety certifications

Frequently Asked Questions:

1.What is IS200JPDFG1A?
IS200JPDFG1A is a Power Distribution Board developed by GE.

2.What is the difference between the G1A and G1AED versions?
The “ED” suffix typically indicates a specific Engineering Drawing revision or a factory-installed component update, but they remain functionally compatible.

3. How does this module report power failures to the controller?
It utilizes feedback signals sent through the system backbone, allowing the Mark VIe controller to trigger alarms if a branch circuit loses power.

4. Are the fuses on this board field-replaceable?
Yes, the board is designed with accessible fuse holders to allow for quick maintenance during system inspections.

Datasheet Link:

IS200JPDFG1AED GE Mark VIe DC Power Distribution Module PDF Datasheet
