IS200PMCIH1ABA GE MKVI IS215UCVEM06A Communication Board

Description:

The IS215UCVEM06A is a circuit board that is used in General Electric’s Speedtronic Mark VI turbine control system series. The Mark VI Series that this IS215UCVEM06A printed circuit board product offering belongs to, as in some part is evidenced through its full extended series name, has set specific applications in the management or control systems of General Electric-compatilble gas, steam, and wind turbine automated assemblies. This represents a marked improvement upon earlier iterations of General Electric's Mark product series including the Mark V, as these product series only had possible specific applications in gas and steam turbine automated drive assemblies. With this being the case, the Mark VI Series is popular on the greater figurative automated industrial marketplace independent of that fact, given the truth that this IS215UCVEM06A product's Mark VI Series is one of the last-developed General Electric Mark product series to infuse the patented Speedtronic control system technology into a range of its differing offerings.

Hardware Tips and Specifications

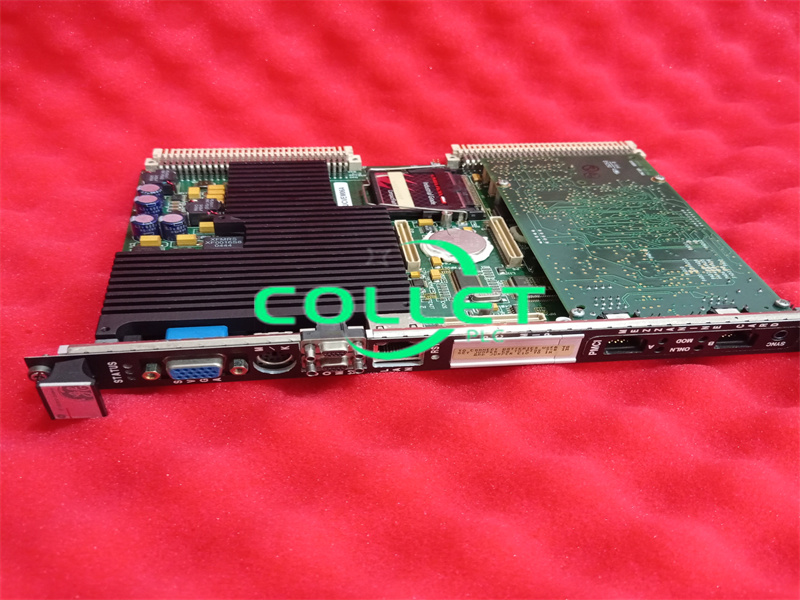

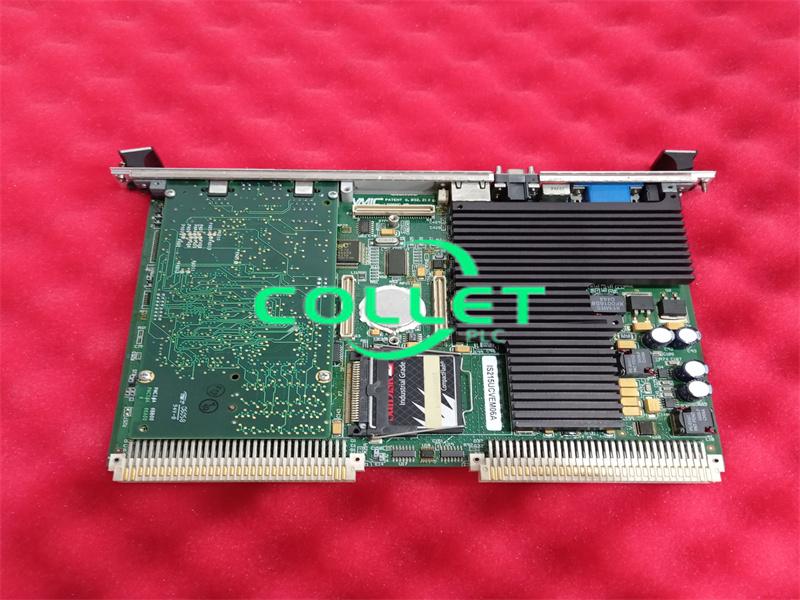

The IS215UCVEM06A is an Ethernet connection circuit board. Then IS215UCVEM06A uses multiple ports on the front of the device. These ports are different shapes and sizes. These ports are used to connect Ethernet cables along with COM ports. The IS215UCVEM06A uses various components such as condensers, diodes, resistors, an SD card, a battery, and integrated circuits to name a few. Each component works individually to help the circuit board function as a whole. The condensers save various amounts of the energy for the circuit board. The diodes direct energy in one direction but not the other. Resistors are a way for the circuit board to get rid of energy that the circuit board doesn’t use. An SD card is used as information and data storage. The integrated circuits are used to control the circuit board. They hold all the data that tells the circuit board how to perform. The IS215UCVEM06A slides into place and has male terminals in the back that are used to attach this circuit board with your system. There are also other attachment places on the circuit board as well. The IS215UCVEM06A has a large cooling unit that takes up half of the circuit board. For more extensive details please refer to the manuals and informational data sheets produced by General Electric about this circuit board.

OPERATION:

• Data Acquisition: The UCM interfaces with various sensors and system components to gather real-time data. This includes monitoring parameters such as temperature, pressure, flow rates, and other critical variables. The data collected is essential for understanding the system's current state and making informed control decisions.
• Control Execution: The UCM executes control commands to regulate system operations based on the real-time data it acquires. It adjusts valve positions, motor speeds, and other control elements to ensure the system operates within the desired performance and safety limits. This dynamic control helps maintain stability and efficiency in complex processes.
• Communication: The UCM facilitates communication between different modules and components of the control system. It ensures that data and control signals are effectively transmitted across the system, enabling coordinated operation. This function is crucial for integrating various subsystems and ensuring that they work together harmoniously.
• Monitoring and Diagnostics: The UCM continuously monitors the system’s performance, providing real-time feedback and diagnostic information. It helps in detecting anomalies, faults, or deviations from normal operating conditions. Through diagnostic capabilities, it assists in troubleshooting and maintaining system reliability by identifying issues before they escalate.
• Configuration and Calibration: The UCM supports the configuration and calibration of system settings, allowing for customization based on specific operational needs. It enables engineers to adjust parameters, set thresholds, and calibrate sensors to ensure accurate and reliable operation. This flexibility is important for adapting the control system to different applications or changes in operational requirements.
