Manufacture |
GE |
|
Model |

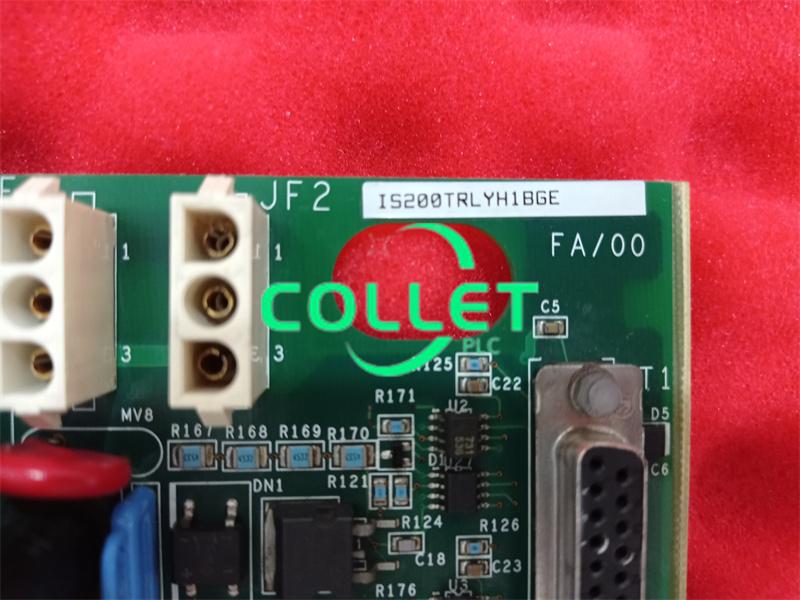

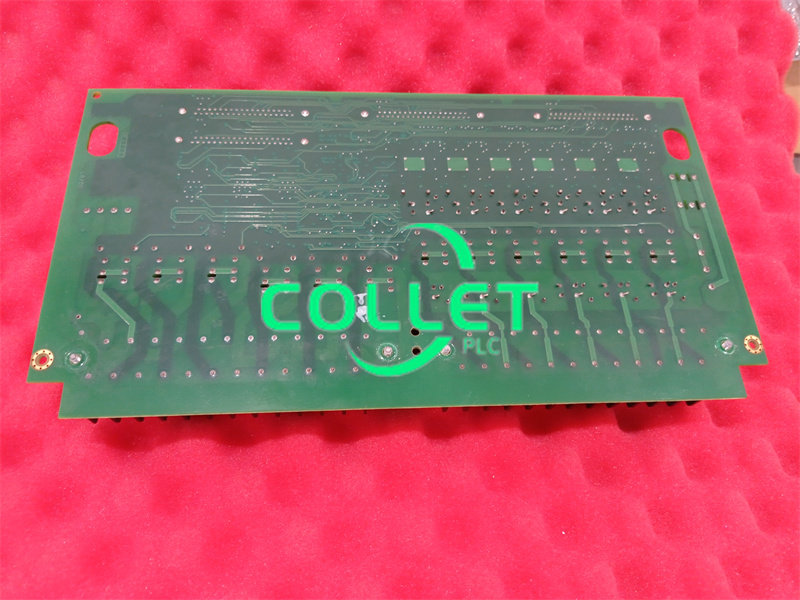

IS200TRLYH1B |
| PN No. |
IS200TRLYH1B |
|
Catalog |
MKVIES |
|
Description |

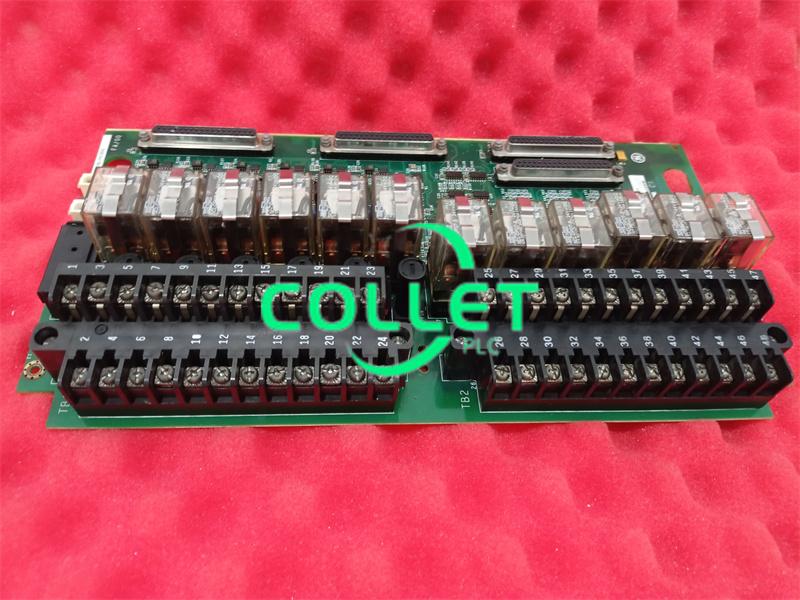

TERMINATION BD., RELAY Board |
| Origin |
United States (US) |
| HS CODE |
85389091 |
| Dimension |
38*28*6 (CM) |
| Weight | 1.0 kg |
Description:
Relay contact voltage detection is available with the optional TRLYH1C relay terminal board. TRLYH1C is driven by VCCC (or VCRC) in the same way as TRLY, and has the same 12 output relays. Voltage sensing is done with 18 small voltage monitor boards as shown in figure below. Individual voltage monitors can be isolated by removing a jumper.
TRLYH1C is the same as the standard TRLY board except for the following:
· Six jumpers for converting the solenoid outputs to dry contact type are removed.These jumpers were associated with the fuse monitoring.
· Input relay coil monitoring is removed from the 12 relays.
· Relay contact voltage monitoring is added to the 12 relays. Individual monitoring circuits have voltage suppression, and can be isolated by removing their associated jumper.
· High frequency snubbers are installed across the NO and Sol terminals on the six solenoid driver circuits and on the special circuit, output 12.
The contact voltage ranges for the monitors are as follows:
· 16-32 V dc, nominal 24 V dc
· 70-145 V dc, nominal 125 V dc
· 90-132 V rms, nominal 115 V rms, 47-63 Hz
· 190-264 V rms, nominal 230 V rms, 47-63 Hz
The threshold voltage ranges for the monitors are as follows:
· 24 V dc applications: 10 to 16 V dc
· 125 V dc applications: 40 to 65 V dc
· 115/230 V ac applications: 45 to 72 V ac
The contact input state is software filtered using time delays.
Application scenarios
Physical Features
Frequently Asked Questions:
1.Does IS200TRLYH1B support hot swap?
Usually not supported, power off required.
2.How to test a relay?
The contact continuity can be measured by a multimeter, or the action can be verified by simulating input signals.
sheet Link:
IS200TRLYH1BGG IS230TRLSH2B GE MKVIES TERMINATION BD., RELAY Board PDF Datasheet
