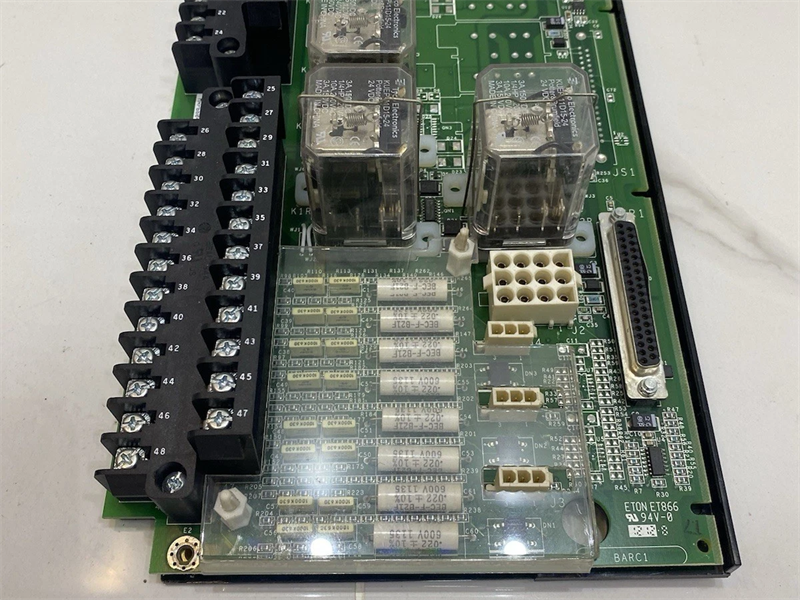

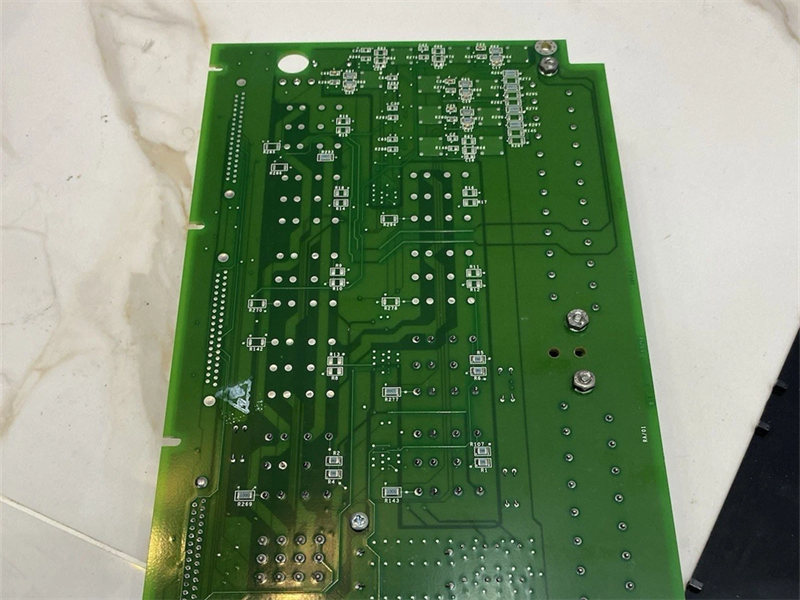

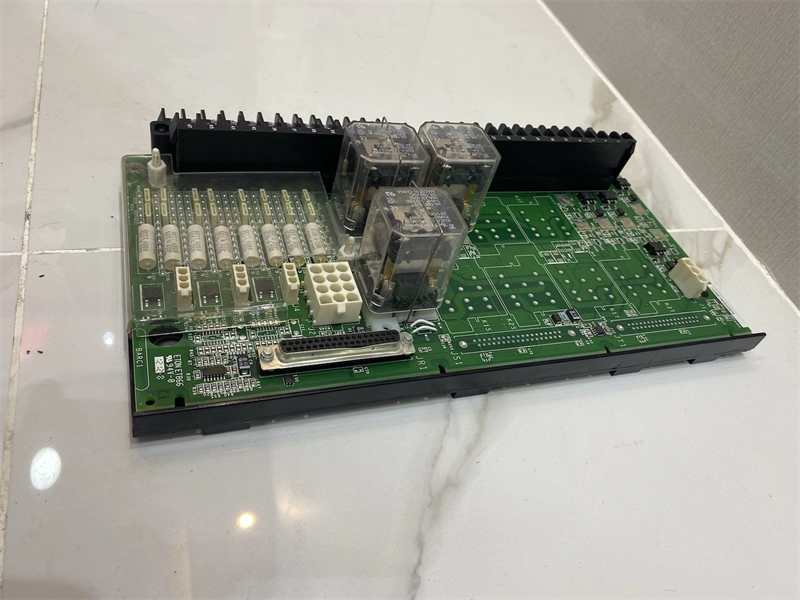

IS200TRPGH2BDE GE Mark VI,Simplex applications Primary Trip Terminal Board

Description:

The Gas Turbine Primary Trip (TRPG) terminal board is controlled by the Primary Turbine Protection I/O pack (YTUR or PTUR) or by the VTUR board. TRPG contains nine magnetic relays in three voting circuits to interface with three trip solenoids (ETDs). The TRPG works in conjunction with the TREG to form the primary and emergency sides of the interface to the ETDs. TRPG also accommodates inputs from eight Geiger-Mueller® for gas turbine applications.

Control Compatibility

Mark VI control     TRPG works with the VTUR board and supports simplex and TMR applications. Cables with molded plugs connect TRPG to the VME rack where the VTUR board is located.
Mark VIe control    TRPG is controlled by the PTUR packs on TTURH1C and supports simplex and TMR applications. The I/O packs plug into the D-type connectors on TTURH1C, which is cabled to TRPG.
Mark VIeS Safety control     Board revision TRPGS1B and TRPGS2B are safety certified.
Specifications

Trip solenoids     3 solenoids per TRPG
Solenoid rated voltage/current     125 V dc standard with up to 1 A draw
                                                        24 V dc is alternate with up to 1 A draw (H1B, H2B, H3B)
Solenoid response time     L/R time constant is 0.1 sec
Current suppression     MOV on TREG
Current economizer     Terminals for optional 10 Ω, 70 W economizing resistor on TREG
Control relay coil voltage supply     Relays are supplied with 28 V dc from JR1, JS1, and JT1
                                                            8 detectors per TRPG
Flame detector supply voltage/current     335 V dc with 0.5 mA per detector
